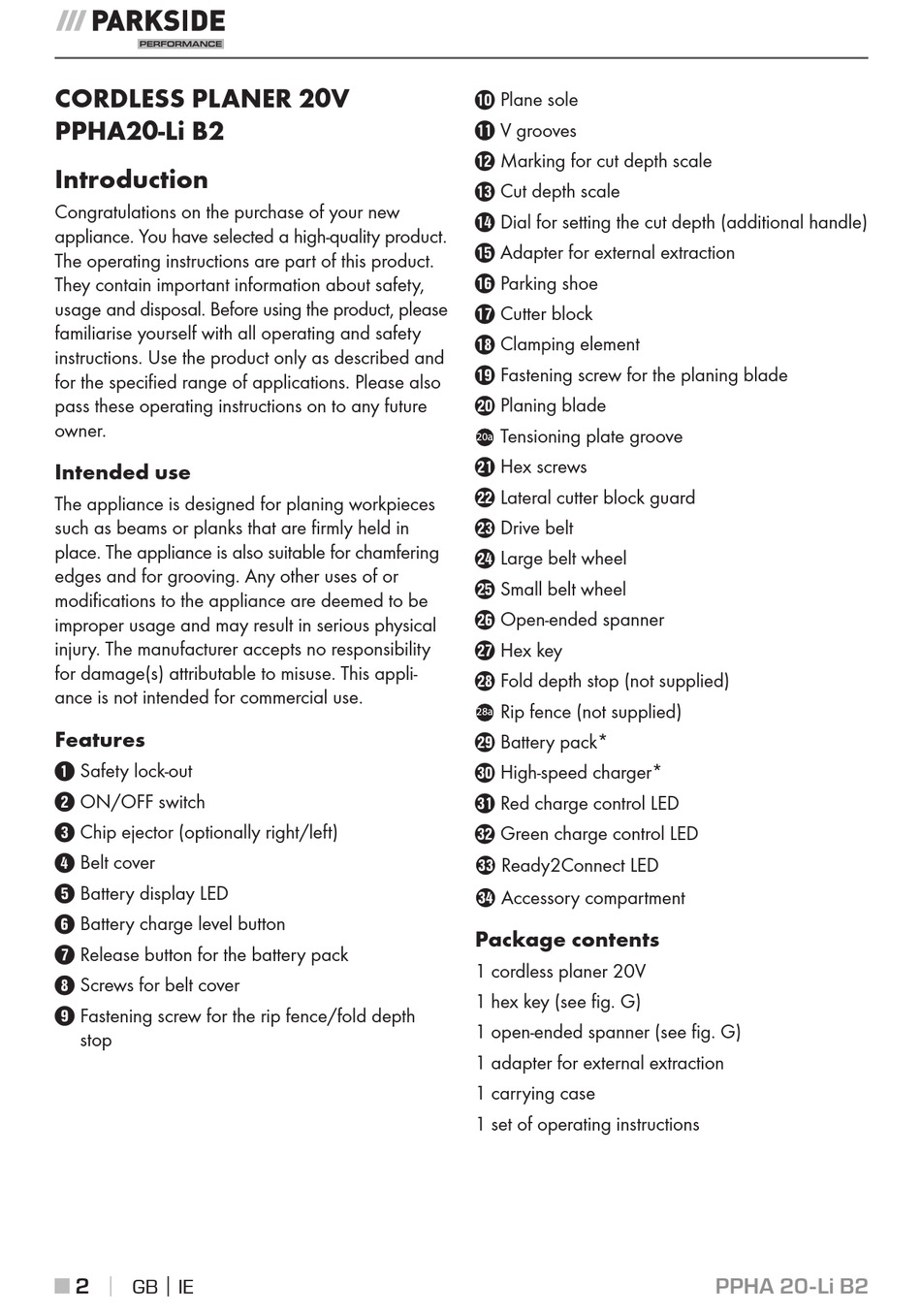

CORDLESS PLANER 20V
PPHA20-Li B2

Introduction

Congratulations on the purchase of your new
appliance. You have selected a high-quality product.
The operating instructions are part of this product.
They contain important information about safety,
usage and disposal. Before using the product, please
familiarise yourself with all operating and safety
instructions. Use the product only as described and
for the specified range of applications. Please also
pass these operating instructions on to any future
owner.

Intended use

The appliance is designed for planing workpieces
such as beams or planks that are firmly held in
place. The appliance is also suitable for chamfering
edges and for grooving. Any other uses of or
modifications to the appliance are deemed to be
improper usage and may result in serious physical
injury. The manufacturer accepts no responsibility
for damage(s) attributable to misuse. This appli-
ance is not intended for commercial use.

Features

Safety lock-out
ON/OFF switch
Chip ejector (optionally right/left)
Belt cover
Battery display LED
Battery charge level button
Release button for the battery pack
Screws for belt cover
Fastening screw for the rip fence/fold depth
stop
2
GB │ IE
│
■
Plane sole
V grooves
Marking for cut depth scale
Cut depth scale
Dial for setting the cut depth (additional handle)
Adapter for external extraction
Parking shoe
Cutter block
Clamping element
Fastening screw for the planing blade
Planing blade
Tensioning plate groove
20a
Hex screws
Lateral cutter block guard
Drive belt
Large belt wheel
Small belt wheel
Open-ended spanner
Hex key
Fold depth stop (not supplied)
Rip fence (not supplied)
28a
Battery pack*
High-speed charger*
Red charge control LED
Green charge control LED
v
Ready2Connect LED
b
Accessory compartment

Package contents

1 cordless planer 20V
1 hex key (see fig. G)
1 open-ended spanner (see fig. G)
1 adapter for external extraction
1 carrying case
1 set of operating instructions
PPHA 20-Li B2
