en Installation instructions

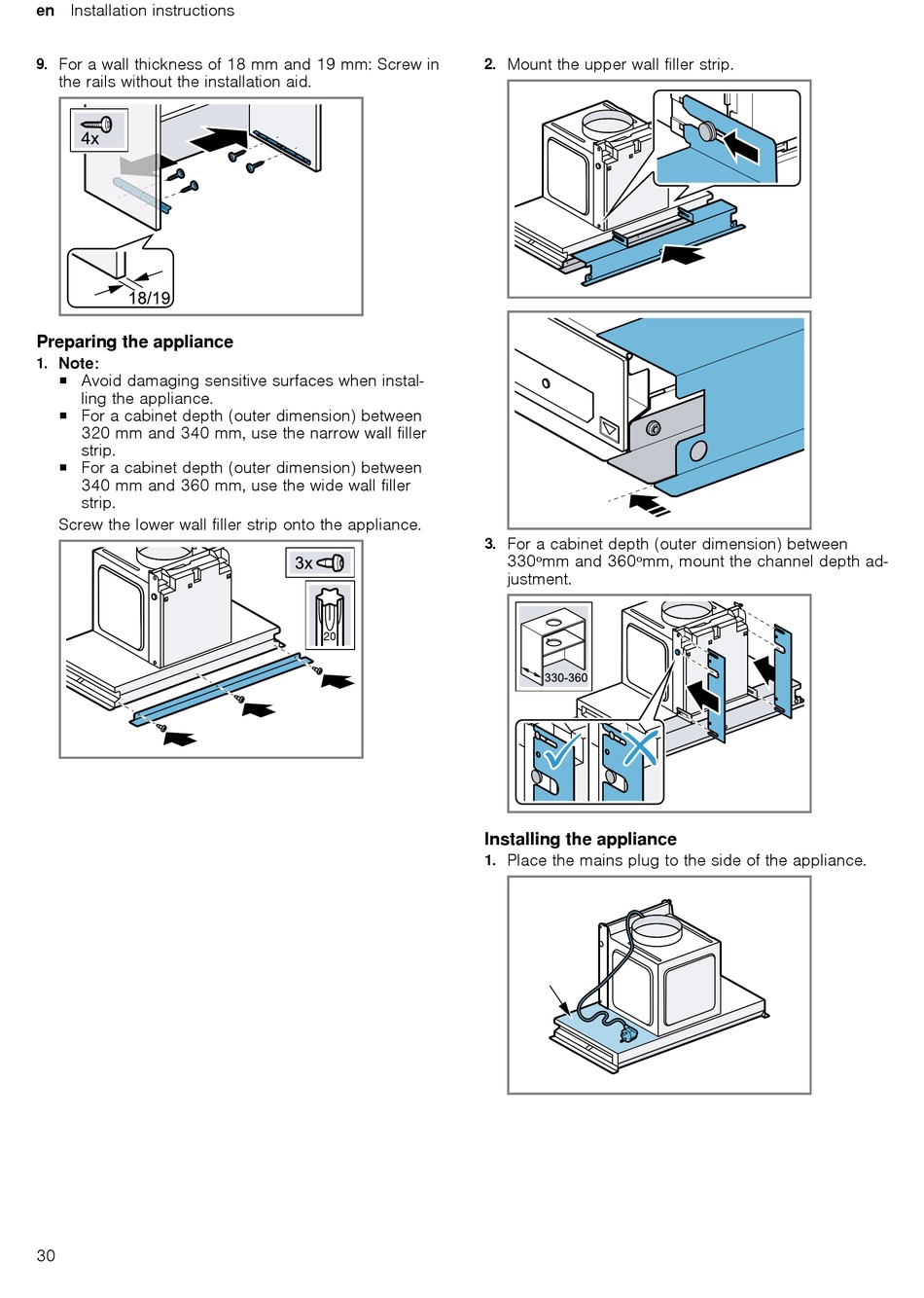

For a wall thickness of 18 mm and 19 mm: Screw in
9.
the rails without the installation aid.
Preparing the appliance
1. Note:
¡ Avoid damaging sensitive surfaces when instal-
ling the appliance.
¡ For a cabinet depth (outer dimension) between
320 mm and 340 mm, use the narrow wall filler
strip.
¡ For a cabinet depth (outer dimension) between
340 mm and 360 mm, use the wide wall filler
strip.
Screw the lower wall filler strip onto the appliance.
30
2.
3.
20
Installing the appliance
1.
Mount the upper wall filler strip.
For a cabinet depth (outer dimension) between
330ºmm and 360ºmm, mount the channel depth ad-
justment.
Place the mains plug to the side of the appliance.
