¡ Diameter of 120 mm corresponds to ap-
prox. 113 cm².
¡ Use sealing strips for different pipe diameters.
¡ Do not use any flat ducts with sharp bends.
Round pipes
Use round pipes with an inner diameter of 150 mm (re-
commended) or at least 120 mm.
12.9 Instructions for the air extraction mode
For air extraction mode, a one-way flap should be in-
stalled.
Notes
¡ If a one-way flap is not included with the appliance,
one can be ordered from a specialist retailer.
¡ If the exhaust air is conveyed through the external
wall, a telescopic duct should be used.

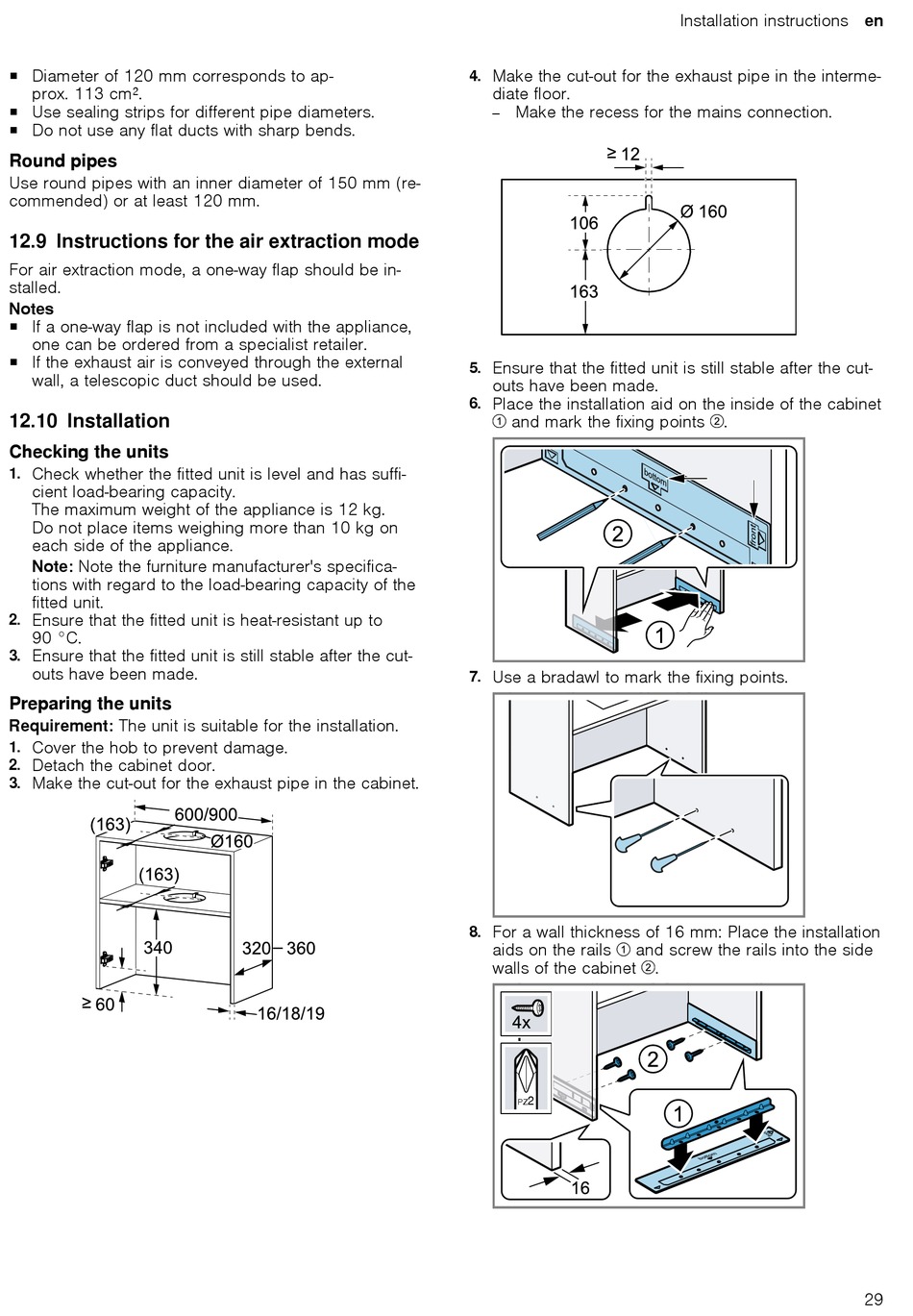

12.10 Installation
Checking the units
1. Check whether the fitted unit is level and has suffi-
cient load-bearing capacity.
The maximum weight of the appliance is 12 kg.
Do not place items weighing more than 10 kg on
each side of the appliance.
Note: Note the furniture manufacturer's specifica-
tions with regard to the load-bearing capacity of the
fitted unit.
Ensure that the fitted unit is heat-resistant up to
2.
90 °C.
Ensure that the fitted unit is still stable after the cut-
3.
outs have been made.
Preparing the units
Requirement: The unit is suitable for the installation.
Cover the hob to prevent damage.
1.
Detach the cabinet door.
2.
Make the cut-out for the exhaust pipe in the cabinet.
3.
Make the cut-out for the exhaust pipe in the interme-
4.
diate floor.
Make the recess for the mains connection.
‒
Ensure that the fitted unit is still stable after the cut-
5.
outs have been made.
Place the installation aid on the inside of the cabinet
6.
​ ⁠ and mark the fixing points
Use a bradawl to mark the fixing points.
7.
For a wall thickness of 16 mm: Place the installation
8.
aids on the rails ​ ⁠ and screw the rails into the side
walls of the cabinet
2
PZ
Installation instructions en
​ ⁠ .
​ ⁠ .
29
