3.1.2
3.2
Page 56
4
Four rocker switches

Black rocker switch: trimming for steering, see section 3.7 "Trimming"
on page 59.

Multi-coloured rocker switches: for special functions
5
Integrated IOAT aerial

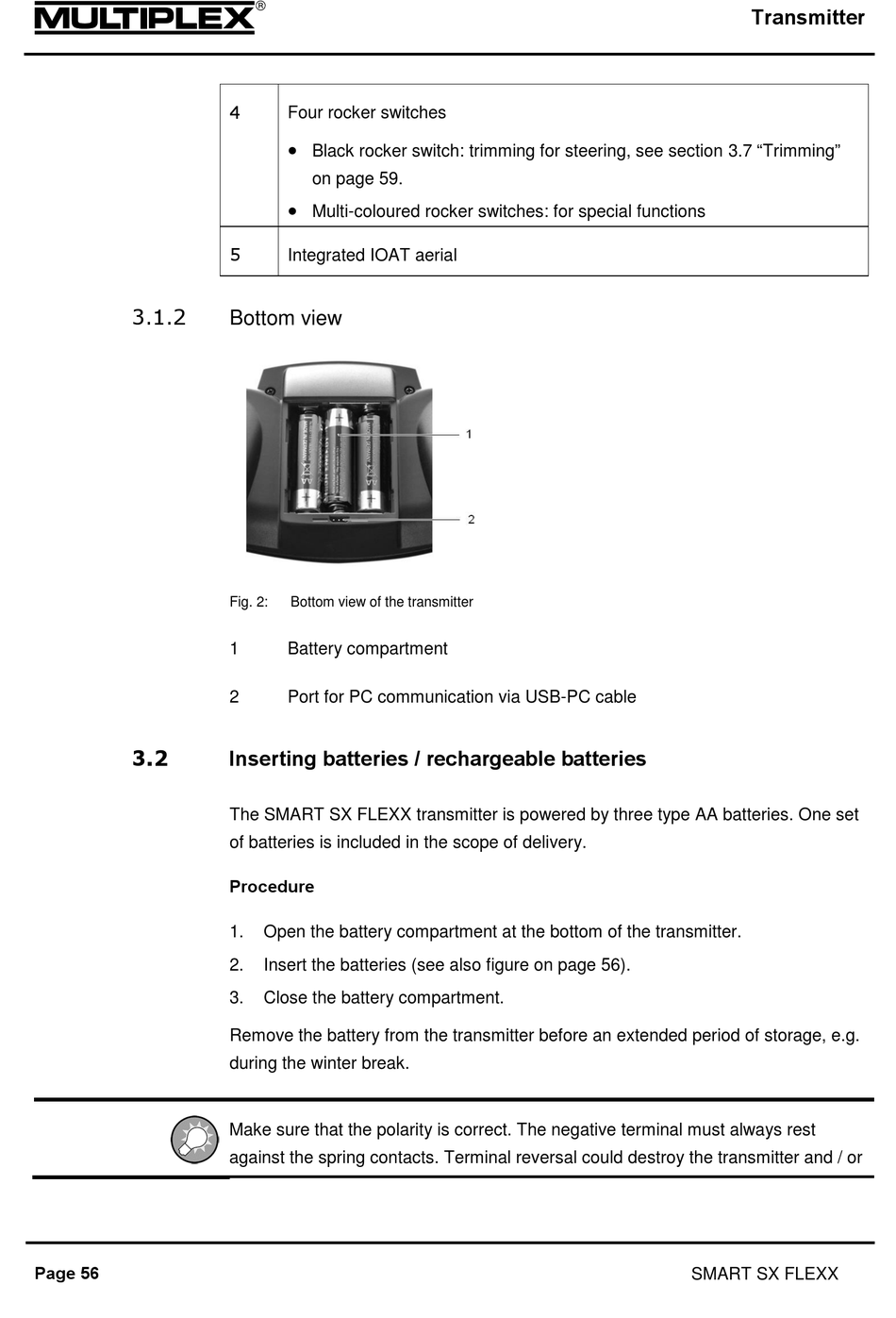

Bottom view

Fig. 2: Bottom view of the transmitter
1 Battery compartment
2 Port for PC communication via USB-PC cable

Inserting batteries / rechargeable batteries

The SMART SX FLEXX transmitter is powered by three type AA batteries. One set
of batteries is included in the scope of delivery.
Procedure
1. Open the battery compartment at the bottom of the transmitter.
2. Insert the batteries (see also figure on page 56).
3. Close the battery compartment.
Remove the battery from the transmitter before an extended period of storage, e.g.
during the winter break.
Make sure that the polarity is correct. The negative terminal must always rest
against the spring contacts. Terminal reversal could destroy the transmitter and / or
Transmitter
SMART SX FLEXX
