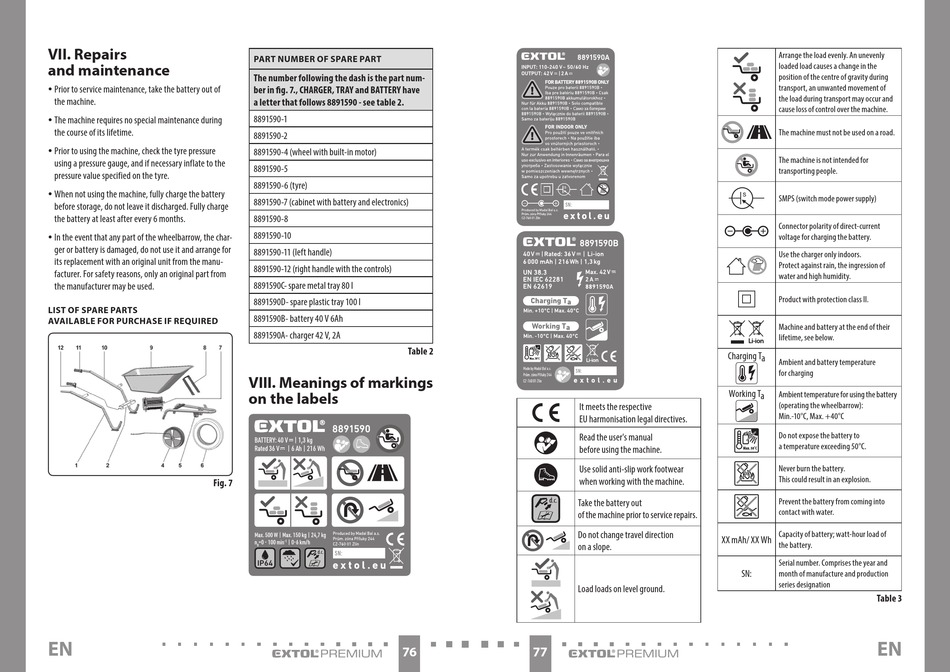

VII. Repairs
and maintenance
y Prior to service maintenance, take the battery out of
the machine.
y The machine requires no special maintenance during
the course of its lifetime.
y Prior to using the machine, check the tyre pressure
using a pressure gauge, and if necessary inflate to the
pressure value specified on the tyre.
y When not using the machine, fully charge the battery
before storage, do not leave it discharged. Fully charge
the battery at least after every 6 months.
y In the event that any part of the wheelbarrow, the char-
ger or battery is damaged, do not use it and arrange for
its replacement with an original unit from the manu-
facturer. For safety reasons, only an original part from
the manufacturer may be used.
LIST OF SPARE PARTS
AVAILABLE FOR PURCHASE IF REQUIRED
Fig. 7
EN
PART NUMBER OF SPARE PART
The number following the dash is the part num-
ber in fig. 7., CHARGER, TRAY and BATTERY have
a letter that follows 8891590 - see table 2.
8891590-1
8891590-2
8891590-4 (wheel with built-in motor)
8891590-5
8891590-6 (tyre)
8891590-7 (cabinet with battery and electronics)
8891590-8
8891590-10
8891590-11 (left handle)
8891590-12 (right handle with the controls)
8891590C- spare metal tray 80 l
8891590D- spare plastic tray 100 l
8891590B- battery 40 V 6Ah
8891590A- charger 42 V, 2A
Table 2
VIII. Meanings of markings
on the labels
IP64
76
Max. 50˚C
It meets the respective
EU harmonisation legal directives.
Read the user's manual
before using the machine.
Use solid anti-slip work footwear
when working with the machine.
Take the battery out
of the machine prior to service repairs.
Do not change travel direction
on a slope.
Load loads on level ground.
77
Arrange the load evenly. An unevenly
loaded load causes a change in the
position of the centre of gravity during
transport, an unwanted movement of
the load during transport may occur and
cause loss of control over the machine.
The machine must not be used on a road.
The machine is not intended for
transporting people.
SMPS (switch mode power supply)
Connector polarity of direct-current
voltage for charging the battery.
Use the charger only indoors.
Protect against rain, the ingression of
water and high humidity.
Product with protection class II.
Machine and battery at the end of their
lifetime, see below.
Charging T a
Ambient and battery temperature
for charging
Working T a
Ambient temperature for using the battery
(operating the wheelbarrow):
Min.-10°C, Max. +40°C
Do not expose the battery to
a temperature exceeding 50°C.
Max. 50˚C
Never burn the battery.
This could result in an explosion.
Prevent the battery from coming into
contact with water.
Capacity of battery; watt-hour load of
XX mAh/ XX Wh
the battery.
Serial number. Comprises the year and
SN:
month of manufacture and production
series designation
Table 3
