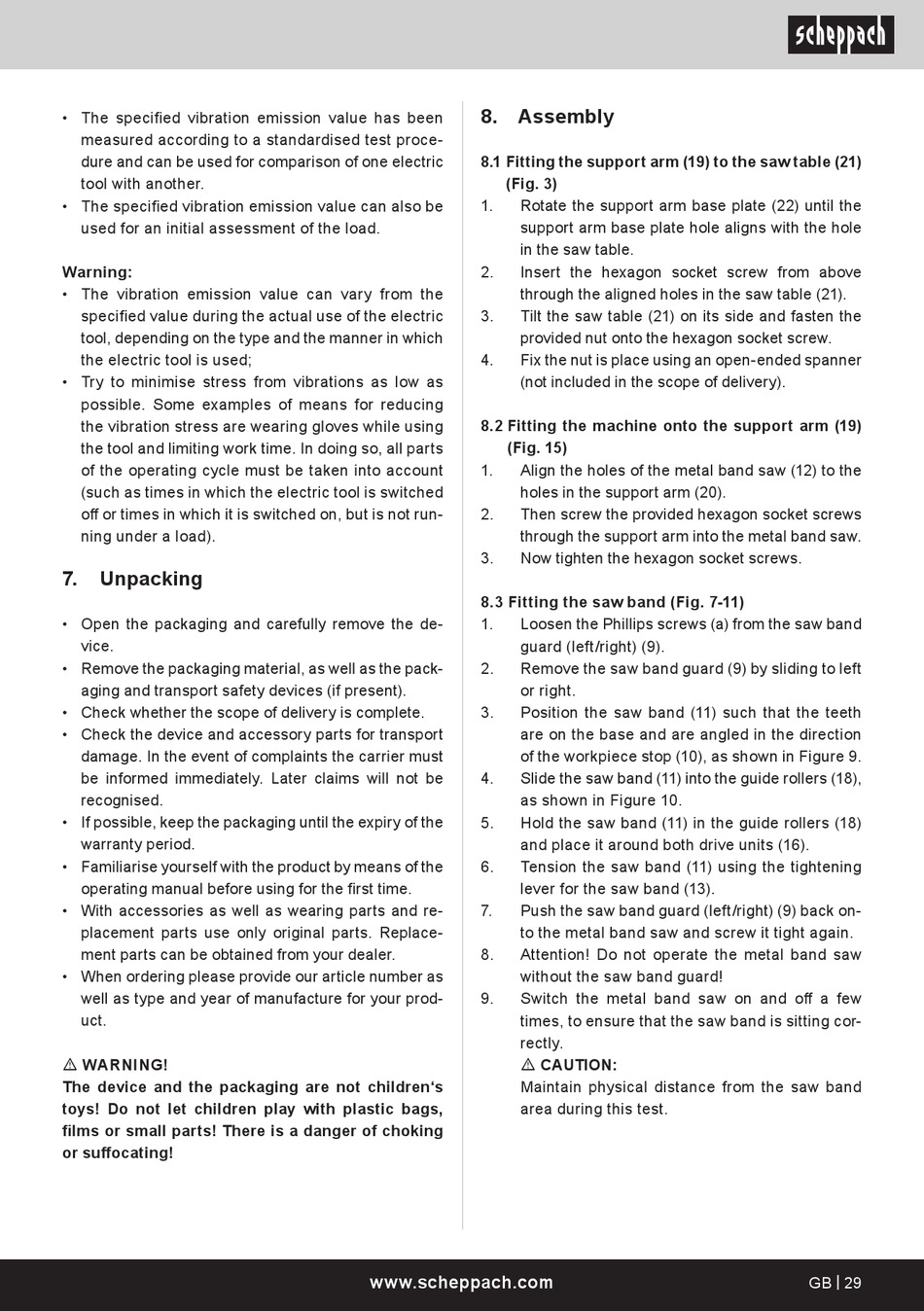

• The specified vibration emission value has been
measured according to a standardised test proce-
dure and can be used for comparison of one electric
tool with another.
• The specified vibration emission value can also be
used for an initial assessment of the load.
Warning:
• The vibration emission value can vary from the
specified value during the actual use of the electric
tool, depending on the type and the manner in which
the electric tool is used;
• Try to minimise stress from vibrations as low as
possible. Some examples of means for reducing
the vibration stress are wearing gloves while using
the tool and limiting work time. In doing so, all parts
of the operating cycle must be taken into account
(such as times in which the electric tool is switched
off or times in which it is switched on, but is not run-
ning under a load).
7.

Unpacking

• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your prod-
uct.
m WARNING!
The device and the packaging are not children's
toys! Do not let children play with plastic bags,
films or small parts! There is a danger of choking
or suffocating!

8. Assembly

8.1 Fitting the support arm (19) to the saw table (21)
(Fig. 3)
1. Rotate the support arm base plate (22) until the
support arm base plate hole aligns with the hole
in the saw table.
2. Insert the hexagon socket screw from above
through the aligned holes in the saw table (21).
3. Tilt the saw table (21) on its side and fasten the
provided nut onto the hexagon socket screw.
4. Fix the nut is place using an open-ended spanner
(not included in the scope of delivery).
8.2 Fitting the machine onto the support arm (19)
(Fig. 15)
1. Align the holes of the metal band saw (12) to the
holes in the support arm (20).
2. Then screw the provided hexagon socket screws
through the support arm into the metal band saw.
3. Now tighten the hexagon socket screws.
8.3 Fitting the saw band (Fig. 7-11)
1. Loosen the Phillips screws (a) from the saw band
guard (left/right) (9).
2. Remove the saw band guard (9) by sliding to left
or right.
3. Position the saw band (11) such that the teeth
are on the base and are angled in the direction
of the workpiece stop (10), as shown in Figure 9.
4. Slide the saw band (11) into the guide rollers (18),
as shown in Figure 10.
5. Hold the saw band (11) in the guide rollers (18)
and place it around both drive units (16).
6. Tension the saw band (11) using the tightening
lever for the saw band (13).
7. Push the saw band guard (left/right) (9) back on-
to the metal band saw and screw it tight again.
8. Attention! Do not operate the metal band saw
without the saw band guard!
9. Switch the metal band saw on and off a few
times, to ensure that the saw band is sitting cor-
rectly.
m CAUTION:
Maintain physical distance from the saw band
area during this test.
www.scheppach.com GB | 29
