ASSEMBLY

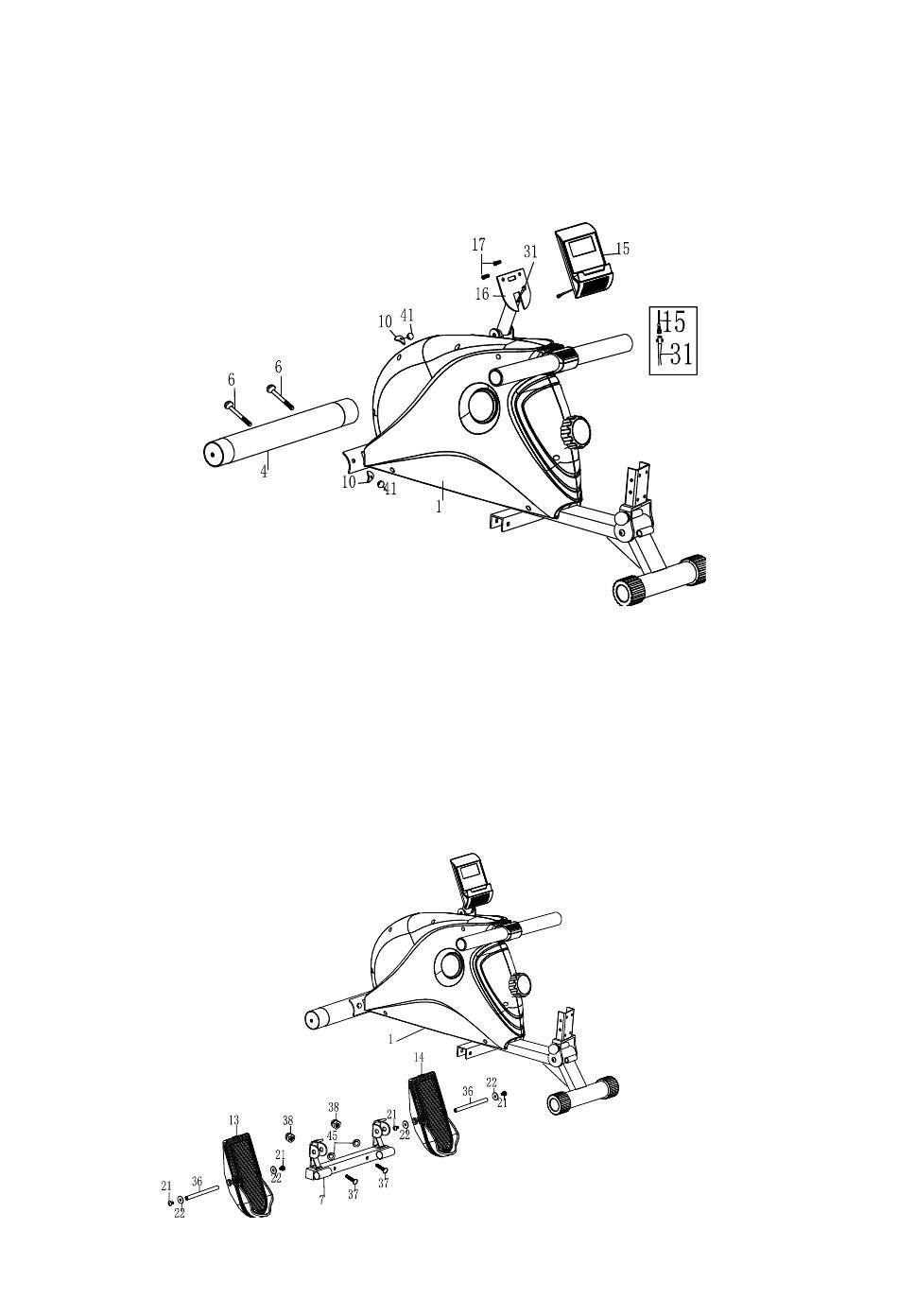

Step 1
Attach the front stabilizer (4) to the main frame (1). Secure using two carriage bolts (6), two
curve washers (10) and two domed nuts (41).
Connect the sensor wire (31) to the back of the computer (15).
Attach the computer (15) to the computer support tube (16). Secure using two screws (17)
which are pre-assembled on the back of computer.
Step 2
Attach the pedal tube (7) to the main frame (1). Secure using two carriage bolts (37), two flat
washers (45) and two doomed nuts (38).
Attach the left pedal (13) to the left bracket of the pedal tube (7). Slide the axle(36) through the
left pedal (13). Secure using two allen bolts (21) and two washers (22).
Repeat the same procedure for the right pedal (14).
