INSTALLATION AND OPERATION GUIDELINES FOR REVERSE OSMOSIS SYSTEMS ECOSOFT ROBUST1500 ECO,
ROBUST MINI ROBUST 1000, ROBUST 1500 / 1500 ЕС, ROBUST PRO / PRO EC, ROBUST 3000 / 3000 EC
1 Remove the reverse osmosis system from and the box check that all parts are inside the bag.
2 Shut off water supply in place of installation and open a water tap for 1 minute to relieve
pressure in the system. Then close the tap.
3

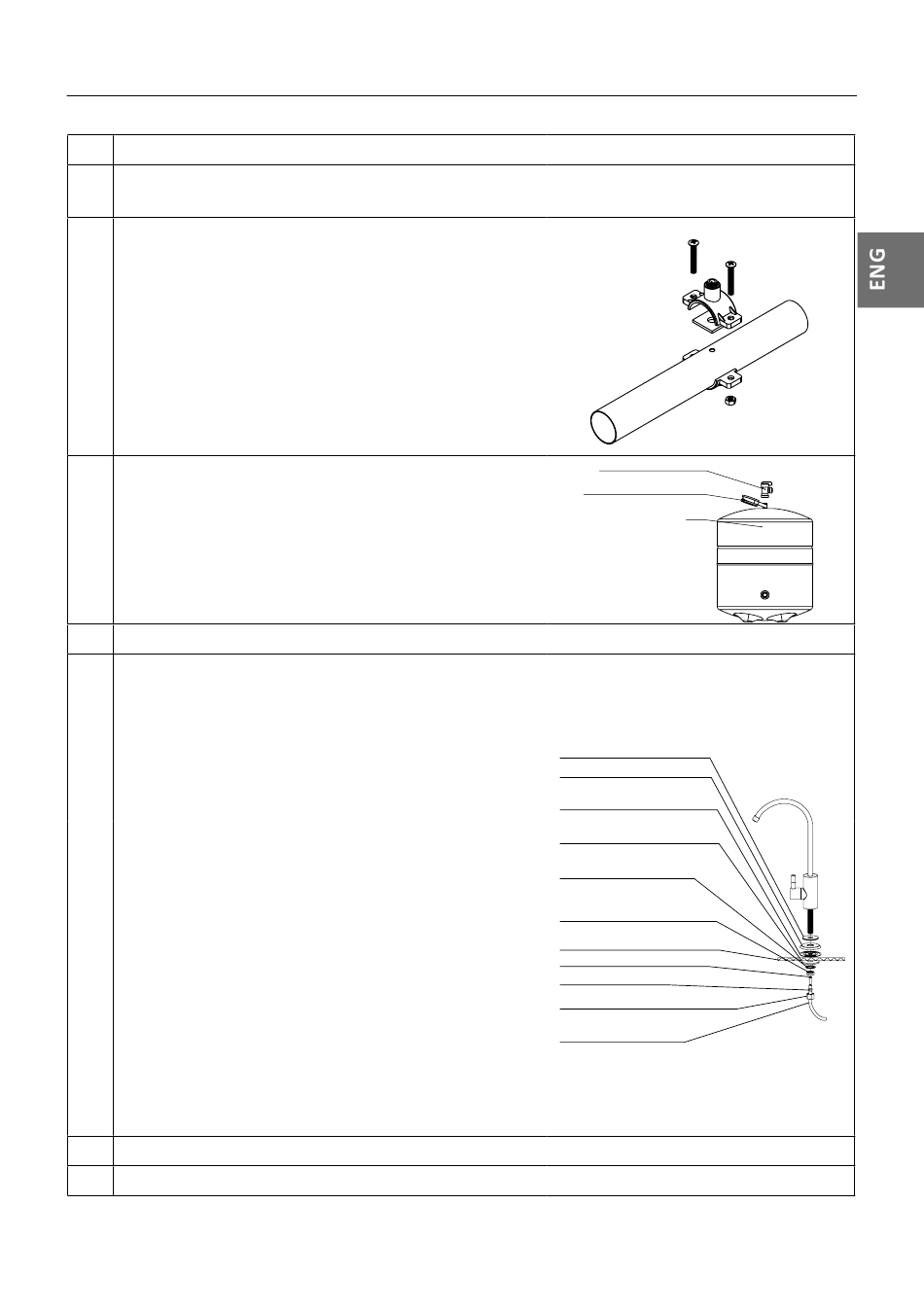

Drain saddle fits most standard drain pipe. Install
the drain saddle on drain pipe as follows. Bore 5
mm hole in the drain pipe, apply rubber gasket with
sticky base (included in the package). Install drain
saddle on top of the gasket so that push-fit fitting
in the saddle is located precisely above the hole in
drain pipe. Tighten nuts on drain saddle fasteners
with a wrench. Insert black tube in the push-fit fitting
in drain saddle. Connect the other end of black tube
with drain port of the RO system's push-fit port rack.
4* Put a few turns of PTFE tape on tank nipple thread.
Screw tank valve on the tank nipple. Turn the valve
fully off.
NOTE! Test air pressure in the empty tank bladder.
It should be 0.6–1.0 bar. If necessary, use air pump
with to inflate the bladder. If pressure is too high
already, push on the valve stem's core to relieve it.
5
Install the faucet.
5.1 To install purified water faucet bore a 12,5 mm
diameter hole in desired location on sink or
countertop.
CAUTION! Metal shavings can damage your sink,
remove them carefully once you have finished
drilling. If the mounting surface is stone or ceramic,
use a carbide drill bit.
5.2 Mount the faucet over the hole on top of small
rubber washer, chrome plated base, and large
rubber washer. Fix the faucet firmly with plastic
washer, lock washer, and nut put on the faucet
shank underneath sink surface.
5.3 Put compression nut on free end of blue tube, then
put on ferrule and put insert inside the tube.
5.4 Push the end of blue tube inside the shank bottom,
seat the ferrule against shank bottom and screw
compression nut snugly on shank thread. The faucet
should now be firmly fixed on top of sink, and blue
tube tightly seated in compression fitting at the
bottom of faucet shank.
6 Install replacement filters to the 1st and 2nd housings (left to right).
7
Install the housings back on the system. Hand tighten only.
This manual is the intellectual property of Ecosoft. Copying and reprinting is prohibited. © 2021
tank valve
PTFE seal
tank
small rubber gasket
chrome-plated cover
large rubber gasket
large plastic gasket
lock washer
nut
counter
plastic insert
1/4 ferrule
1/4 compression nut
blue tube
21
