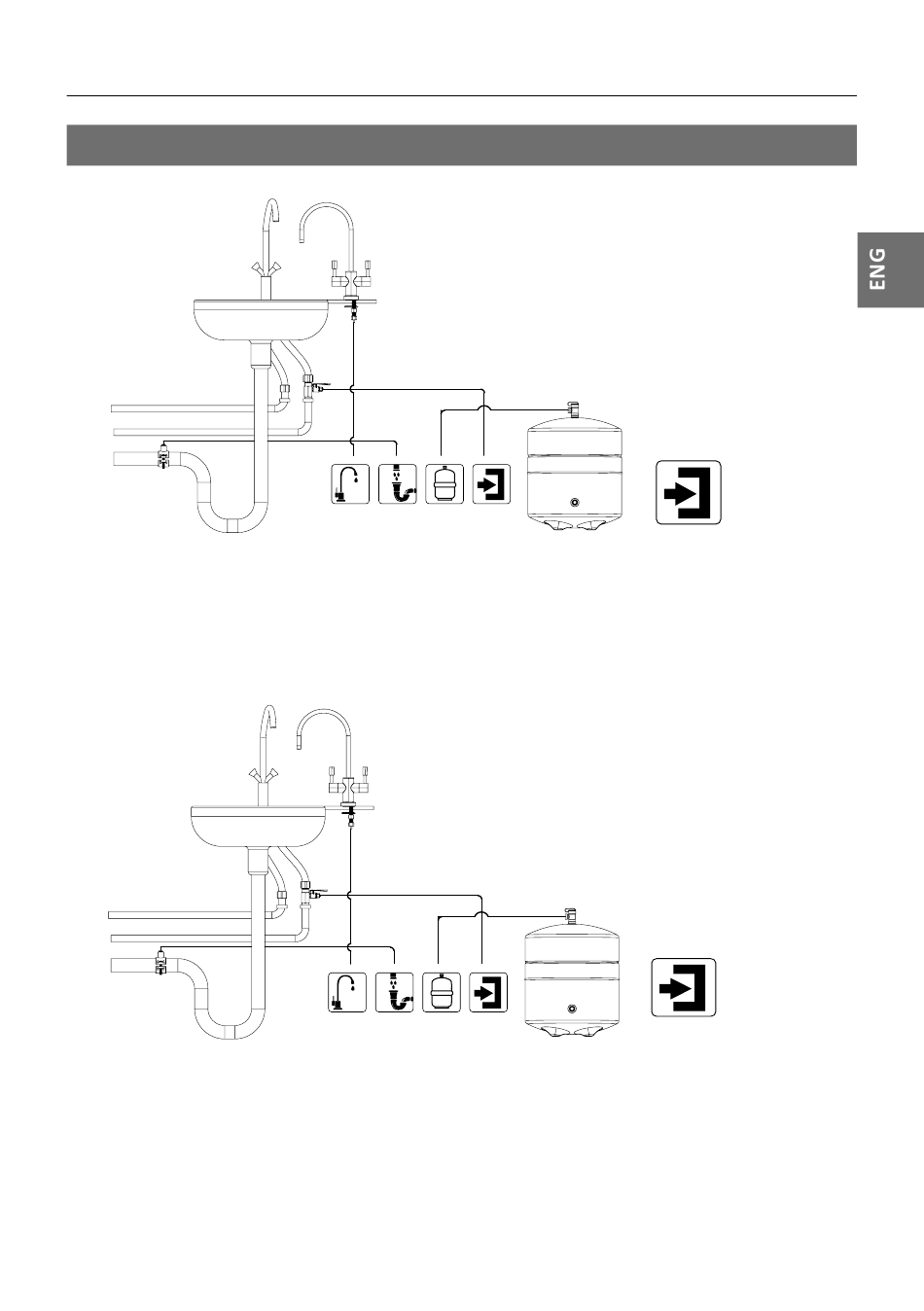

3. INSTALLATION DIAGRAMS

3.1. ECOSOFT ROBUST BASE MODEL

Purified water. Tube from the outlet "Purified water" to the tap of purified water. In the product RObust Mini Tube from the
outlet with a blue cap to the tap of purified water.
Buck. Does not connect. The output is muted
Drainage. Tube from the drainage outlet to the drainage clamp. In the product RObust Mini Tube from the outlet with a black
cap to the drainage clamp.
Exit. Supply pipe from the water supply network to the "Inlet" In the product RObust Mini Tube from the outlet with a red cap
to the outlet of the water supply network.

3.2. ECOSOFT ROBUST WITH PRESSURE TANK

Purified water. Tube from the outlet "Purified water" to the tap of purified water. In the product RObust Mini Tube from the
outlet with a blue cap to the tap of purified water.
Tank. Tube from the outlet "Tank" to the tap on the tank In the product RObust Mini Tube from the outlet with a yellow cap to
the tank.
Drainage. Tube from the drainage outlet to the drainage clamp. In the product RObust Mini Tube from the outlet with a black
cap to the drainage clamp.
Exit. Supply pipe from the water supply network to the "Inlet" In the product RObust Mini Tube from the outlet with a red cap
to the outlet of the water supply network.
