f.) Close pump housing
1. Carefully place the housing cover (Fig. 6/2) on the pump
housing (3) (see Fig. 11).
In doing so, make certain that the cables within the pump
housing (3) and the circuit board are not damaged.

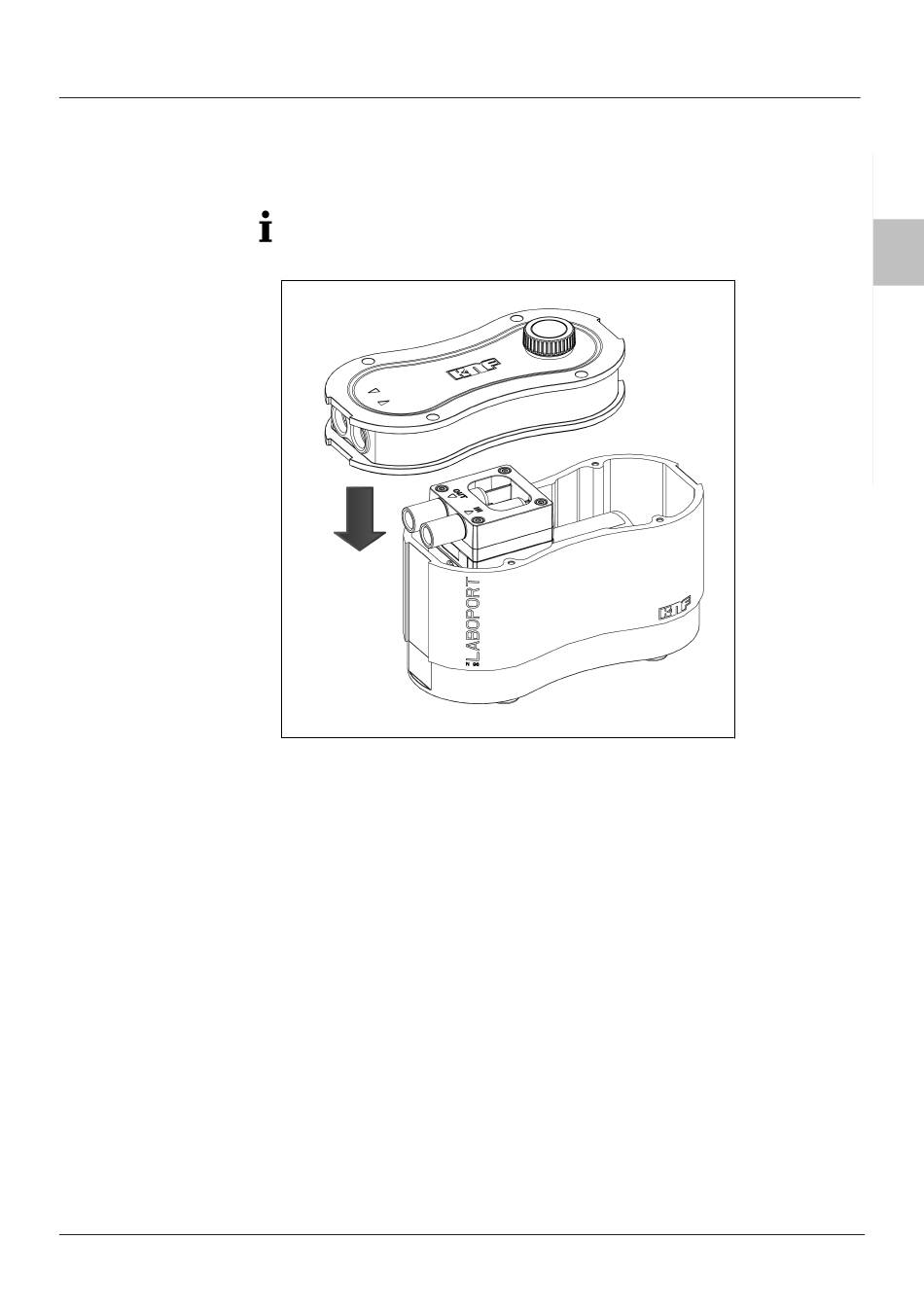

Fig.11: Mounting the housing cover
2. Push the housing cover (2) over the gas connections until
the geometry of the housing cover (2) is aligned with that
of the pump housing (3) (see Fig. 12).
