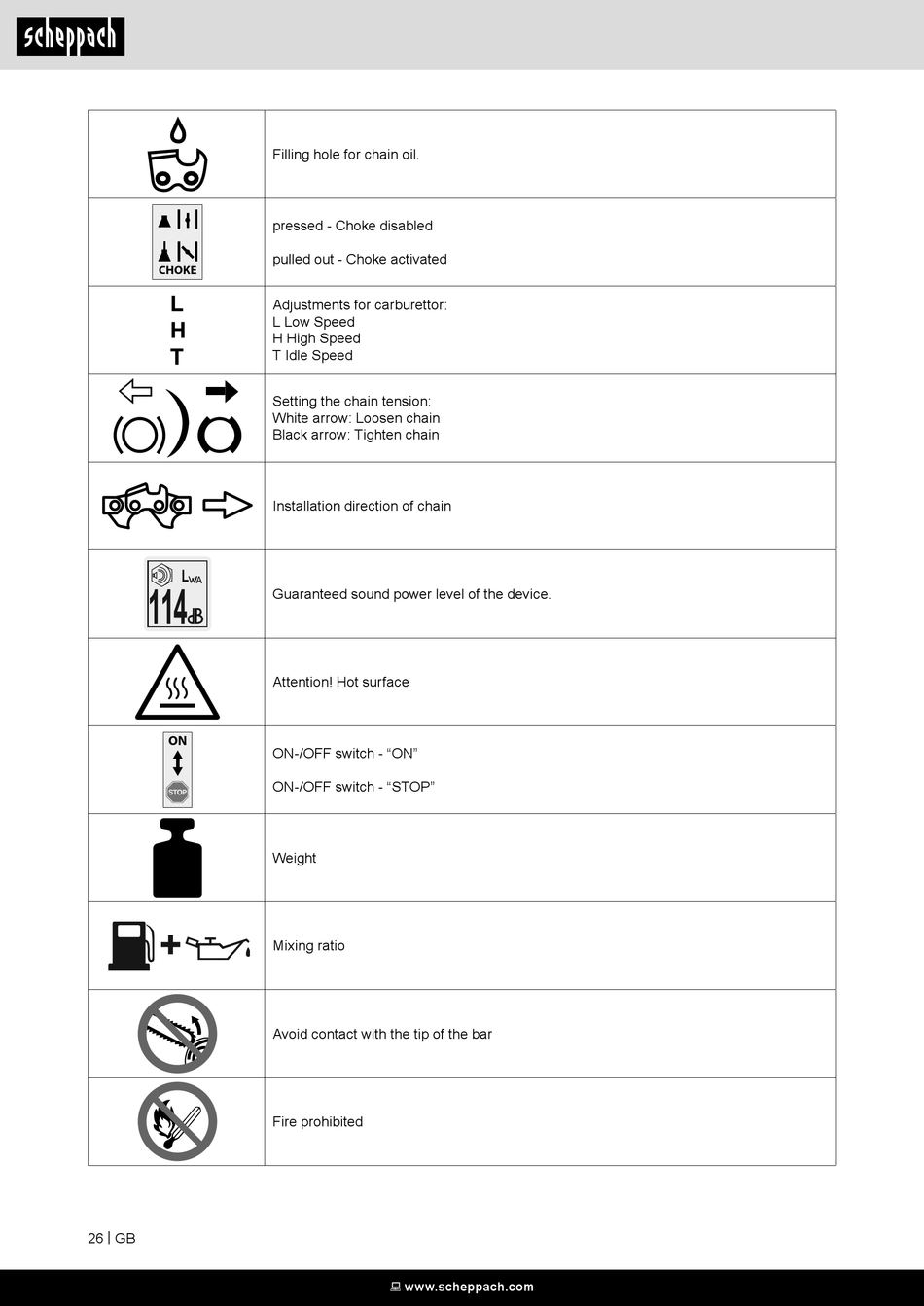

Filling hole for chain oil.
pressed - Choke disabled
pulled out - Choke activated
CHOKE
Adjustments for carburettor:
L Low Speed
H High Speed
T Idle Speed
Setting the chain tension:
White arrow: Loosen chain
Black arrow: Tighten chain
Installation direction of chain
Guaranteed sound power level of the device.
Attention! Hot surface
ON
ON-/OFF switch - "ON"
ON-/OFF switch - "STOP"
Weight
Mixing ratio
Avoid contact with the tip of the bar
Fire prohibited
