Operating Elements - Clearaudio azimuth optimizer Bedienungsanleitung

User manual / Bedienungsanleitung

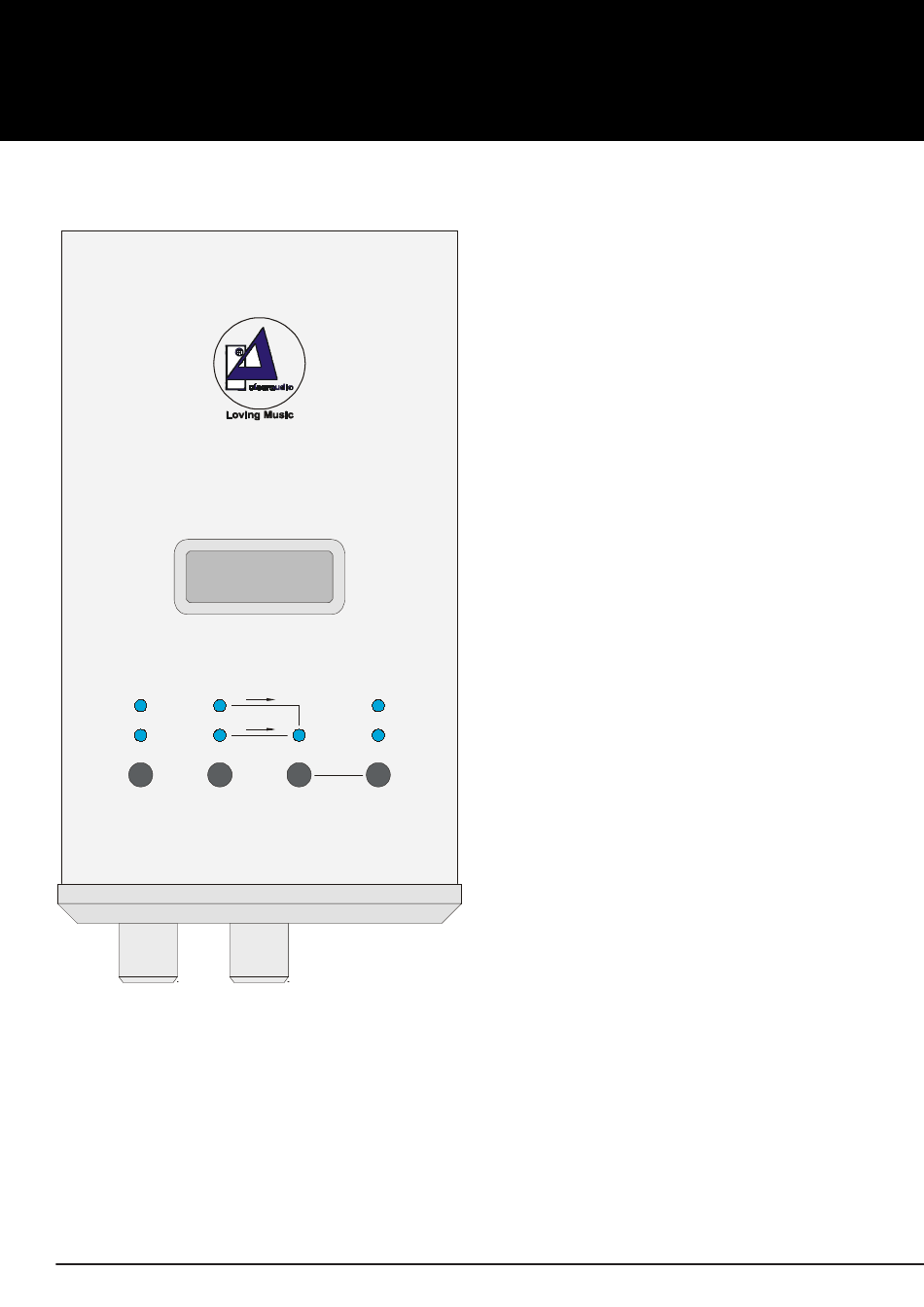

3. Operating elements

azimuth optimizer
MC R
MM L
MM / MC L / R
0dB-adjustment
headphone-volume control
Page / Seite 8
R L
AZIMUTH
L R
CT PHONO
AZIMUTH
CROSSTALK / dB LEVEL / mV
Button MM/MC:
Switches the input sensitivity / amplification.
Position MM = 40dB,
Position MC = 60dB
Input impedance/Capacity:
MM = 47kOhm/220pF
MC = 400Ohm/220pF,
(the input impedance is adjusted
automatically).
Button L/R:
Switches to the signal-carrying channel of
the test-record
Button Crosstalk:
Activates the operation mode „Crosstalk"
Button „Level":
Pushing the button 'Level' will in
combination with the test-record show the
output voltage of your cartridge in the
display in mV.
Pushing both buttons 'Level' and
'Crosstalk' simultaneously, the main
operation mode switches between
"Phono" and "Measurement".
In the measurement-operation mode the
LED "Azimuth" glows blue
© clearaudio electronic GmbH, 2022-12
