S t e p 4
group 2 installation
hole
slide block
Figure 1
Y
X
Fasten
Screw
Figure 2
torx handle
Alongside
Installation Manual:
Figure 4

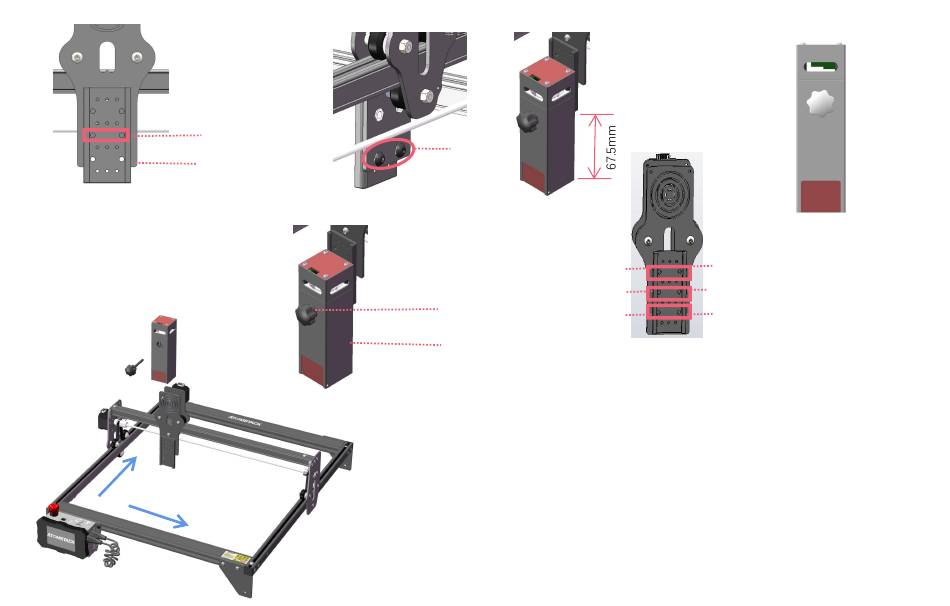

1. The laser engraving machine has 3 groups installation holes, the laser
module will set at the hole Group 1st as default. Please remove and re-
set the laser module at Group 2nd as the standard installation holes as
shown in Figure 1 and Figure 2 below.
2. Insert the laser module vertically into the slide rail block and drop it
freely on the focusing side, and then tighten the torx handle. The
maximum downward movement distance of the laser module is 72mm.
The limited position for upward movement is that the bottom of the
laser is flush with the bottom of the slide block (Figure 3. Figure 4). The
thickness ranges of the engraved or cut products corresponding to each
group of holes in the slide rail block are different (as shown in Figure 5).
Step4 Required components:
Figure 3
Engraving or cutting scope 0~45mm
Group 3rd
Engraving or cutting scope 0~65mm
Group 2nd
Group 1st
Engraving or cutting scope 0~85mm
Figure 5
Laser head *1
