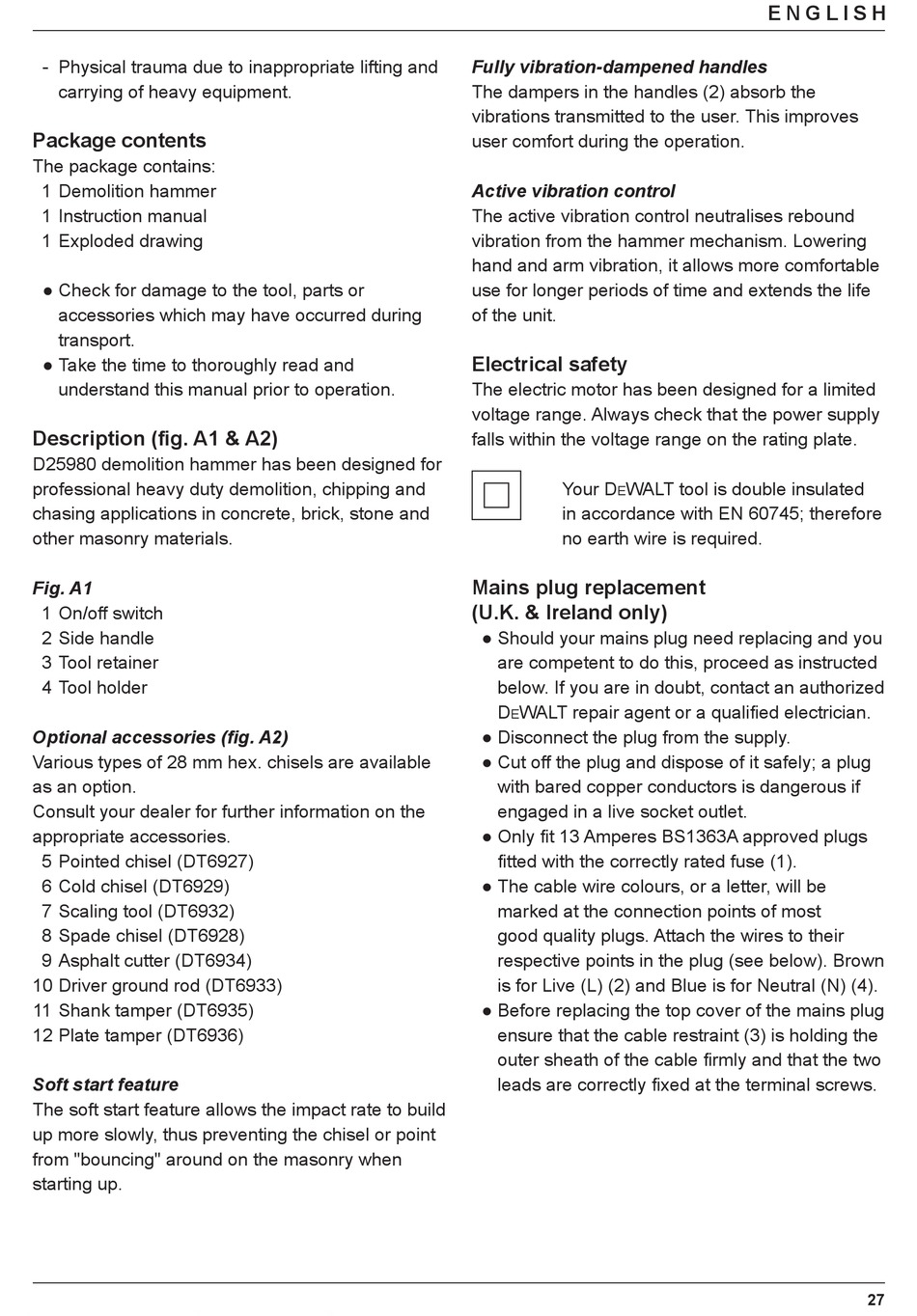

Package Contents; Electrical Safety - DeWalt D25980 Anleitung

- Physical trauma due to inappropriate lifting and
carrying of heavy equipment.

Package contents

The package contains:
1 Demolition hammer
1 Instruction manual
1 Exploded drawing
● Check for damage to the tool, parts or
accessories which may have occurred during
transport.
● Take the time to thoroughly read and
understand this manual prior to operation.
Description (fig. A1 & A2)
D25980 demolition hammer has been designed for
professional heavy duty demolition, chipping and
chasing applications in concrete, brick, stone and
other masonry materials.
Fig. A1
1 On/off switch
2 Side handle
3 Tool retainer
4 Tool holder
Optional accessories (fig. A2)
Various types of 28 mm hex. chisels are available
as an option.
Consult your dealer for further information on the
appropriate accessories.
5 Pointed chisel (DT6927)
6 Cold chisel (DT6929)
7 Scaling tool (DT6932)
8 Spade chisel (DT6928)
9 Asphalt cutter (DT6934)
10 Driver ground rod (DT6933)
11 Shank tamper (DT6935)
12 Plate tamper (DT6936)
Soft start feature
The soft start feature allows the impact rate to build
up more slowly, thus preventing the chisel or point
from "bouncing" around on the masonry when
starting up.
Fully vibration-dampened handles
The dampers in the handles (2) absorb the
vibrations transmitted to the user. This improves
user comfort during the operation.
Active vibration control
The active vibration control neutralises rebound
vibration from the hammer mechanism. Lowering
hand and arm vibration, it allows more comfortable
use for longer periods of time and extends the life
of the unit.

Electrical safety

The electric motor has been designed for a limited
voltage range. Always check that the power supply
falls within the voltage range on the rating plate.
Your D WALT tool is double insulated
#
E
in accordance with EN 60745; therefore
no earth wire is required.
Mains plug replacement
(U.K. & Ireland only)
● Should your mains plug need replacing and you
are competent to do this, proceed as instructed
below. If you are in doubt, contact an authorized
D WALT repair agent or a qualified electrician.
E
● Disconnect the plug from the supply.
● Cut off the plug and dispose of it safely; a plug
with bared copper conductors is dangerous if
engaged in a live socket outlet.
● Only fit 13 Amperes BS1363A approved plugs
fitted with the correctly rated fuse (1).
● The cable wire colours, or a letter, will be
marked at the connection points of most
good quality plugs. Attach the wires to their
respective points in the plug (see below). Brown
is for Live (L) (2) and Blue is for Neutral (N) (4).
● Before replacing the top cover of the mains plug
ensure that the cable restraint (3) is holding the
outer sheath of the cable firmly and that the two
leads are correctly fixed at the terminal screws.
E N G L I S H
