2.6 THE CONNECTIONS ON THE REAR PANEL
In the bottom of the rear panel there are two more pairs of line audio outputs.
The main difference between these outputs and the ones in the recess underneath the manuals is that the
latter contain the signal generated by the organ, while on the rear connectors, the signals of the individual
manuals and pedal board are routed to and adjusted on the individual outputs in accordance with the
relative settings on the display (for more information see points 6.5 and 6.6).
1. [OUTPUT 1] and [OUTPUT 2] connectors: Jack line outputs carrying the organ signal in accordance
with the routing set by means of the function on display. With the Factory Settings active, the signals
are distributed as follows:
- [OUTPUT 1]: General signal
- [OUTPUT 2]: Reverb only

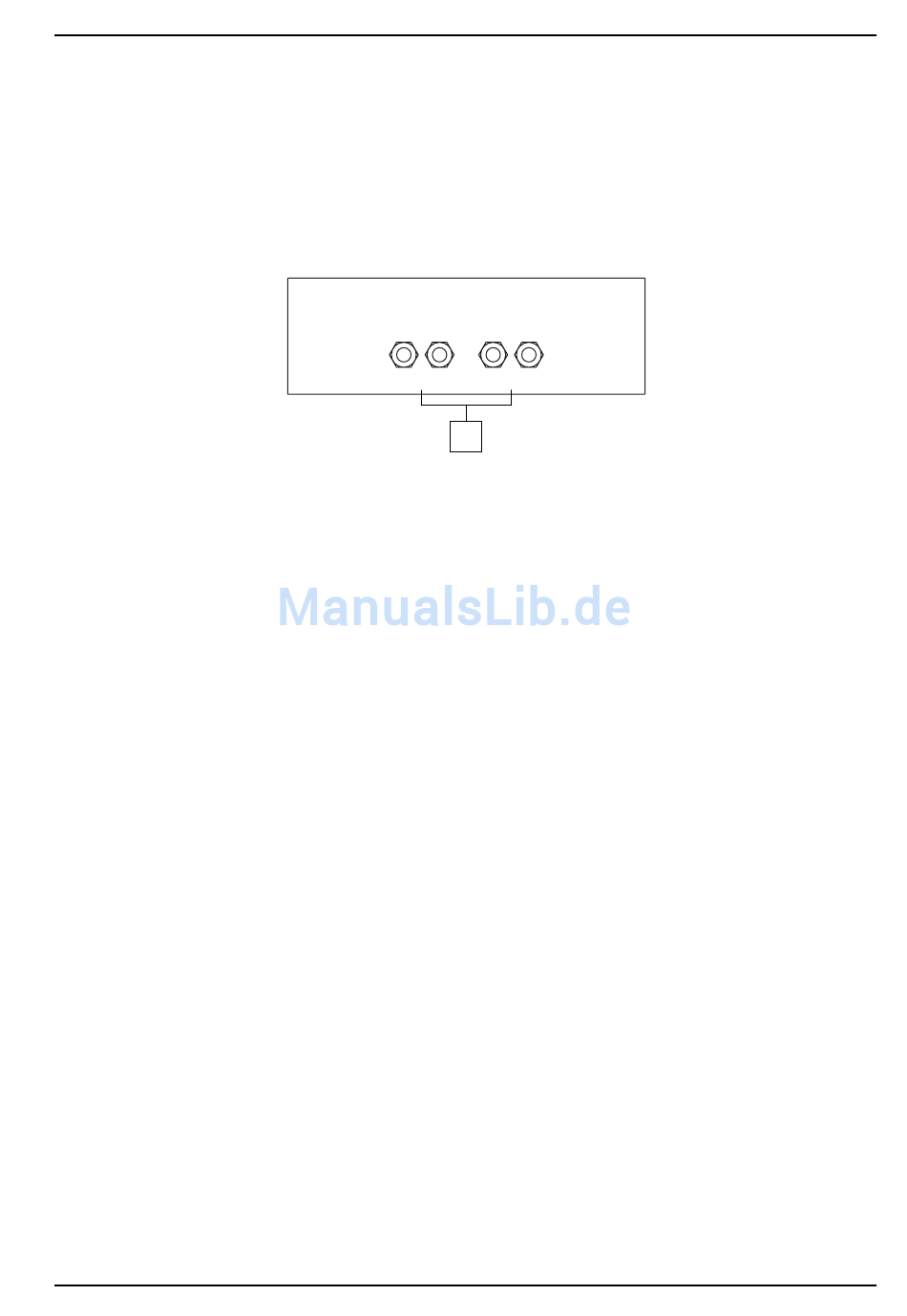

Viscount Vivace 60 Deluxe - 60 - 50 Deluxe
L(+R) R L(+R) R
OUTPUT 1 OUTPUT 2
