If the installation is not on a flush-mounted box, there are predetermined breaking points on the underside of the
base plate for 2 optional cable entries. On the upper side of the base plate there are 2 notches which can be used
as position for a hole (max. Ø 6mm).
When using a drill, make sure that the base plate is firmly clamped in place. Before drilling through, the pressure
must be reduced and the drill must be continued carefully. This can cause the drill cutting edge to break off.

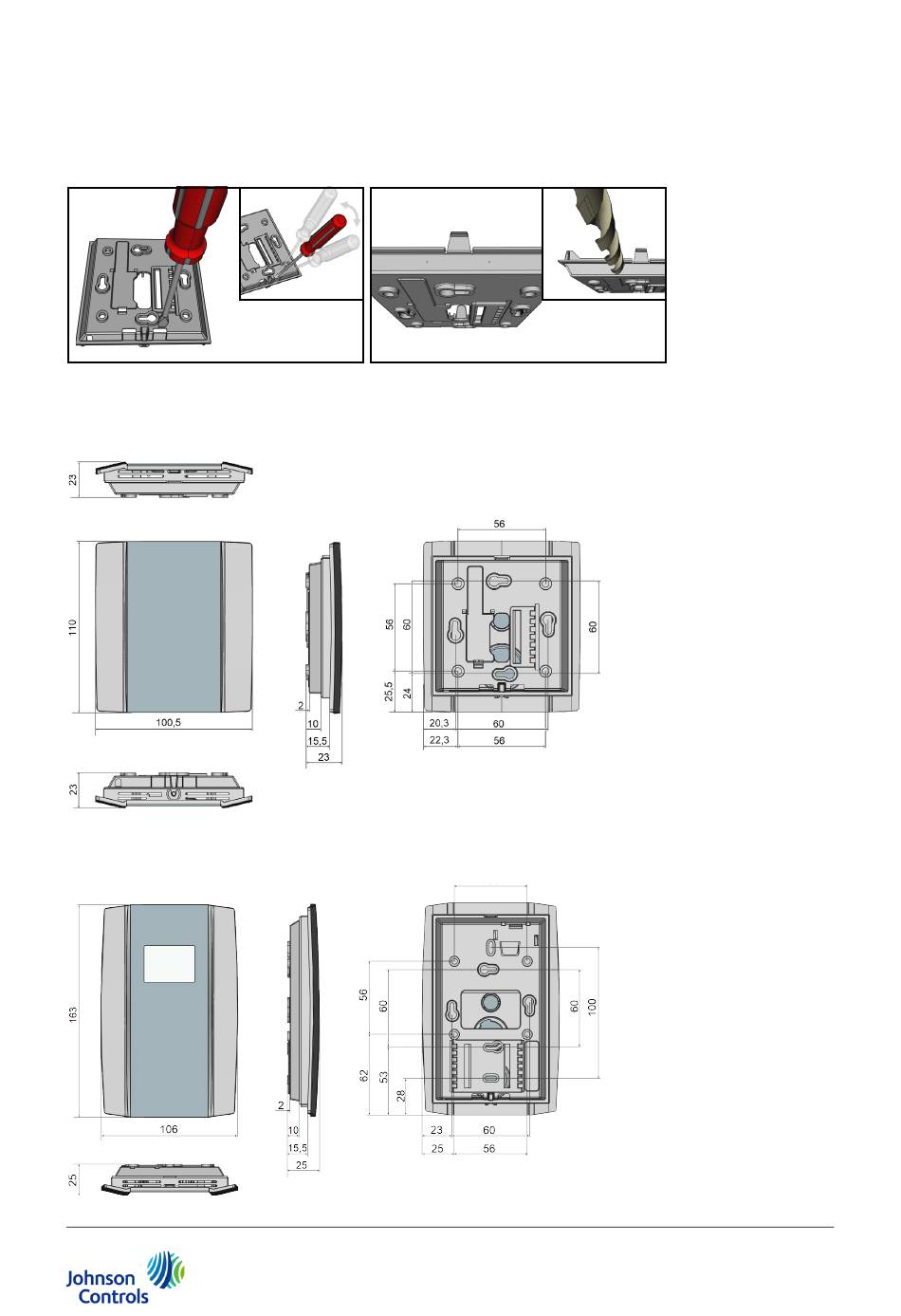

Dimensions (mm)
Dimensions (mm)
SCD-200-E00-00 | SCD-310-E00-00 | SCD-220-E00-00
SCD-201-E00-00 | SCD-311-E00-00 | SCD-221-E00-00
SCD-xxx Differential Pressure Transmitter
