Johnson Controls T8200-Serie Installationsanleitung

T8200

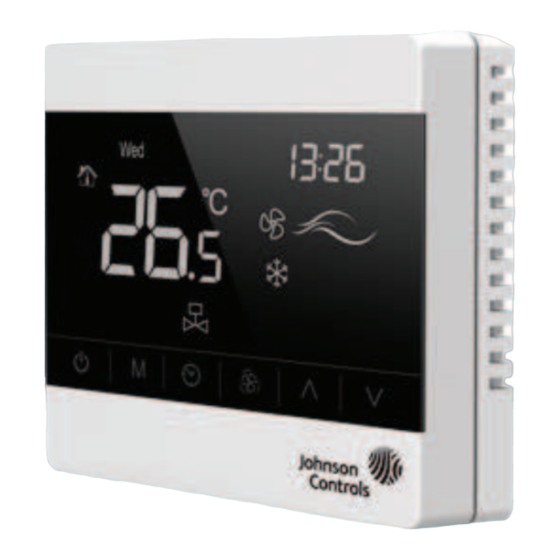

Touch screen thermostat
Installation instructions
P/N 24-85784-00127 Rev. A Issue date: 05 2017
T8200-TFE0-9JR0
T8200-TFE0-9JS0
T8200-TBE0-9JR0
T8200-TBE0-9JS0
°C
• Ambient
• Ambiante
• Umgebung
• Ambiente
• Ambiente
• Atmosfeer
• Omgivnin
•
• Otoczenia
•
• Omgivelse
MAX MIN MAX
45 °C -0 °C 60 °C
113 °F -32 °F 140 °F
MAX 90% RH MAX 90% RH
MIN 10% RH MIN 10% RH
