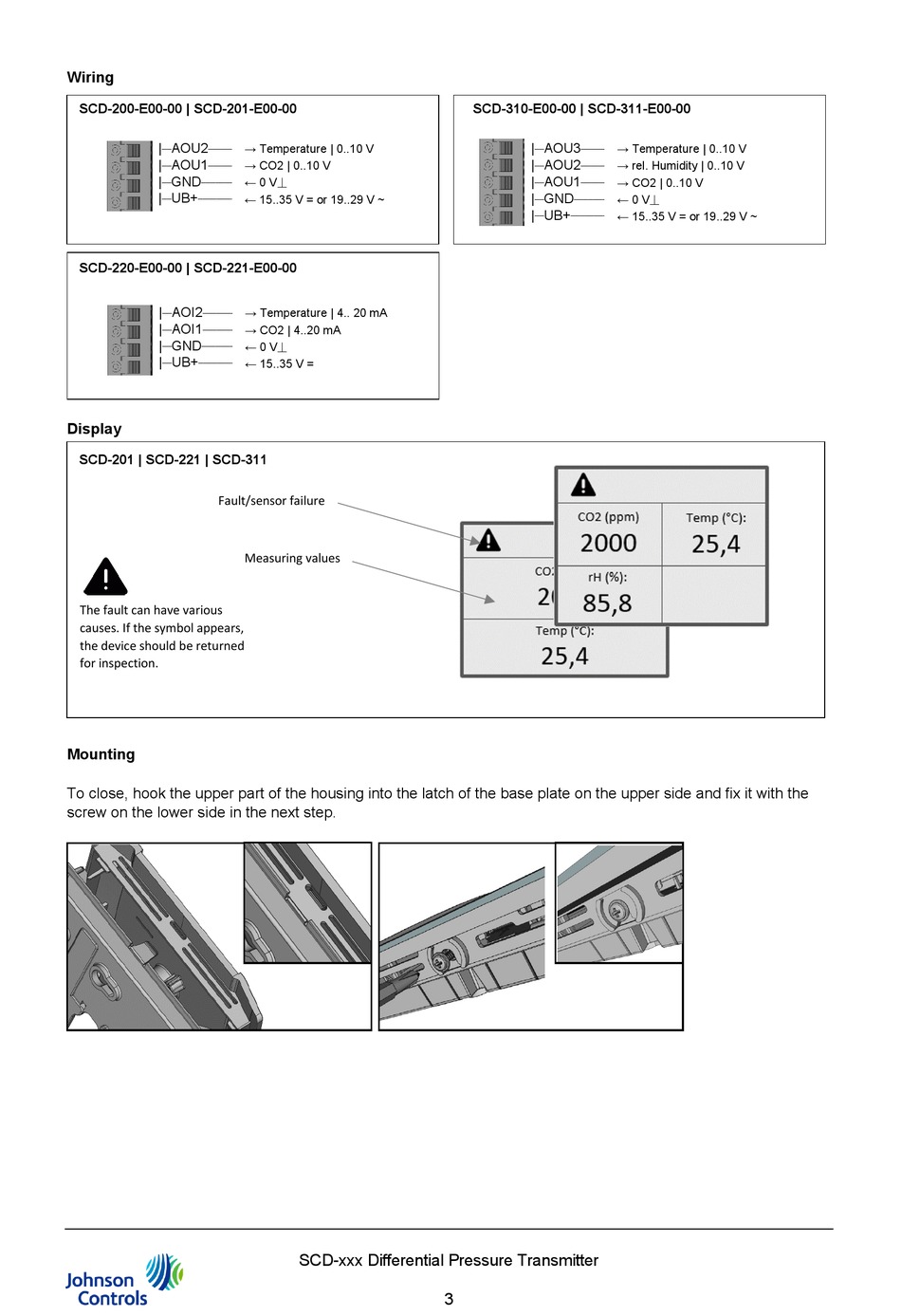

Wiring
SCD-200-E00-00 | SCD-201-E00-00
| __ AOU2 ________
| AOU1
__ ________
| __ GND ________
| __ UB+ _________
SCD-220-E00-00 | SCD-221-E00-00
| AOI2
__ ________
| __ AOI1 ________
| __ GND ________
| __ UB+ _________
Display
SCD-201 | SCD-221 | SCD-311
Fault/sensor failure
The fault can have various
causes. If the symbol appears,
the device should be returned
for inspection.
Mounting
To close, hook the upper part of the housing into the latch of the base plate on the upper side and fix it with the
screw on the lower side in the next step.
→ Temperature | 0..10 V
→ CO2 | 0..10 V
← 0 V⏊
← 15..35 V = or 19..29 V ~
→ Temperature | 4.. 20 mA
→ CO2 | 4..20 mA
← 0 V⏊
← 15..35 V =
Measuring values
SCD-xxx Differential Pressure Transmitter
SCD-310-E00-00 | SCD-311-E00-00
| __ AOU3 _______
| AOU2
__ ________
| __ AOU1 ________
| __ GND ________
| __ UB+ _________
3
→ Temperature | 0..10 V
→ rel. Humidity | 0..10 V
→ CO2 | 0..10 V
← 0 V⏊
← 15..35 V = or 19..29 V ~
