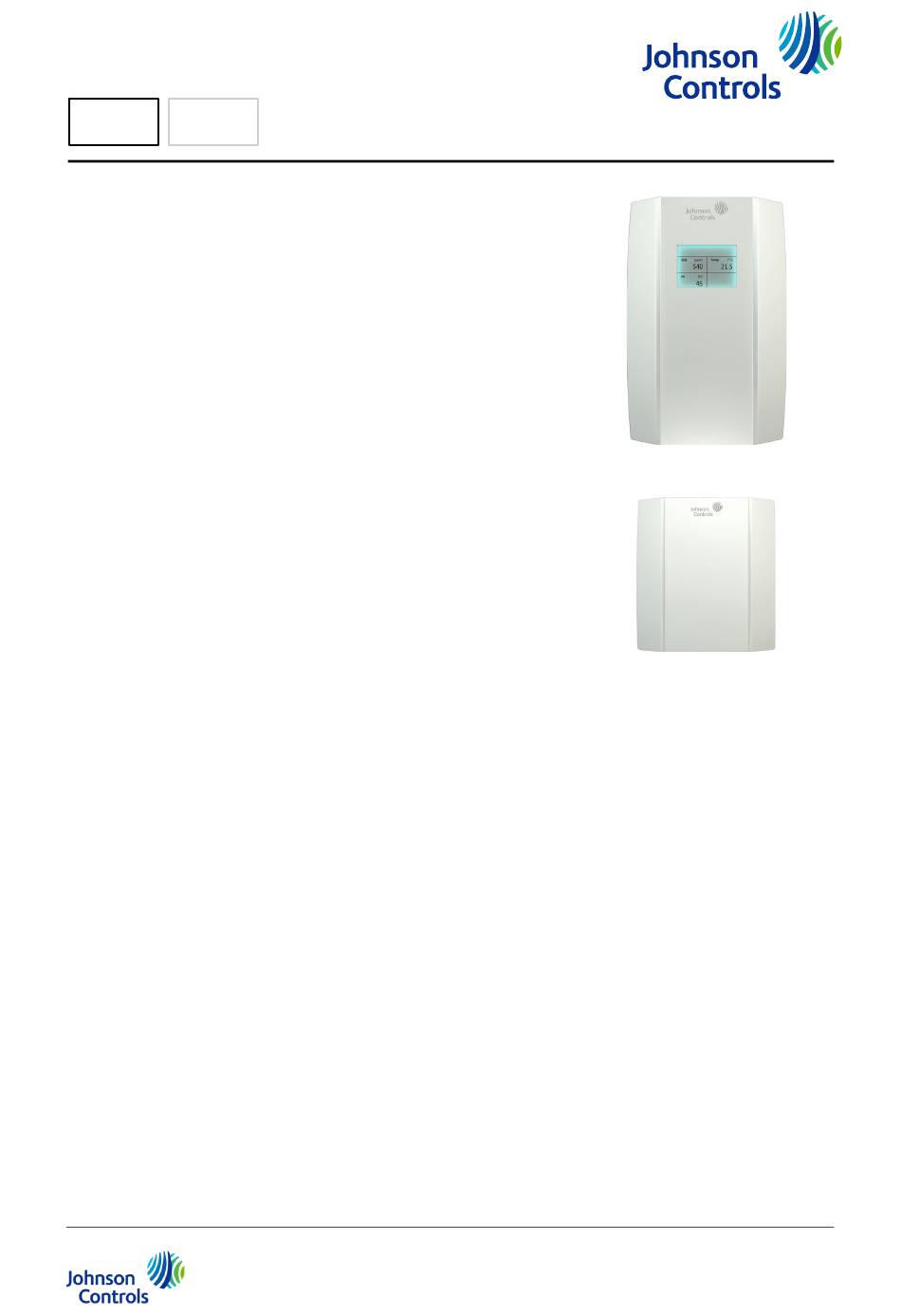

SCD-xxx-E00-00 Room climate sensor
Product Bulletin
EN DE

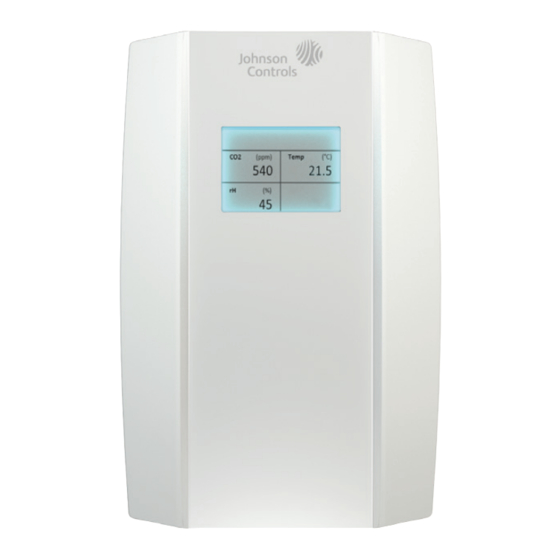

Johnson Controls offers a Carbon Dioxide (CO2) and temperature
wall mount transmitter for measuring the CO2 levels and the
relevant temperature. Optional with humidity measurement.
Typical applications are schools, office buildings, hotels, cinemas
or similar. This new CO2 transmitter is easy to install and requires
no maintenance or field calibration.
The CD-cxx Series incorporates a single beam dual wavelength
NDIR CO2 sensor, which compensates for ageing effects, is highly
The SCD Transmitter is available with up to 3 0-10 V outputs (CO2,
Temperature and rel. humidity).
Features
Support demand control ventilation
Offer potential for 10 to 70% energy savings
Power Supply 15..35 VDC or 19..29 VAC
Flexible application
2x 0...10V / 3x 0...10V
CO2, Temperature and optional humidity output Suitable for a wider
range of applications
Snap-on Enclosure
Allows a quick and easy mounting of the device and saves installation costs
Outstanding long-term stability
No maintenance is required.
Single beam dual wavelength NDIR CO2 sensor
Highly insensitive to pollution and outstanding long term stability
Product overview
This transmitter uses NDIR CO2 sensing technology operates in accordance with the single-beam,
dualwavelength method. The temperature calibrated sensor has unique reference measurement capabilities,
offering excellent stability over both time and temperature.
It requires a 15..35 VDC or 19..29 VAC power source and generates an output signal proportional to the CO2
level detected.
SCD can operate in support of Demand Control Ventilation (DCV), with fresh air and Indoor Air Quality (IAQ)
systems, with rooftop air handling Economizer controls systems, in Standalone applications or as part of any
integrated Building Automation strategy.
Using the CO2 transmitter results in considerable savings in installation, operation, and maintenance costs with
no recalibration expenses. Johnson Controls CO2 transmitters, when used with BAS/Economizer controllers
(featuring DCV strategies), can generate energy savings ranging up to:
• 20 to 40% in office buildings
• 20 to 60% in restaurants/light retail facilities
• 10 to 70% in educational/business settings
SCD-xxx Differential Pressure Transmitter
1
Issued 05.10.2020 | Rev.1
