6.2 Pre-setting of smartBOX – General dispenser settings

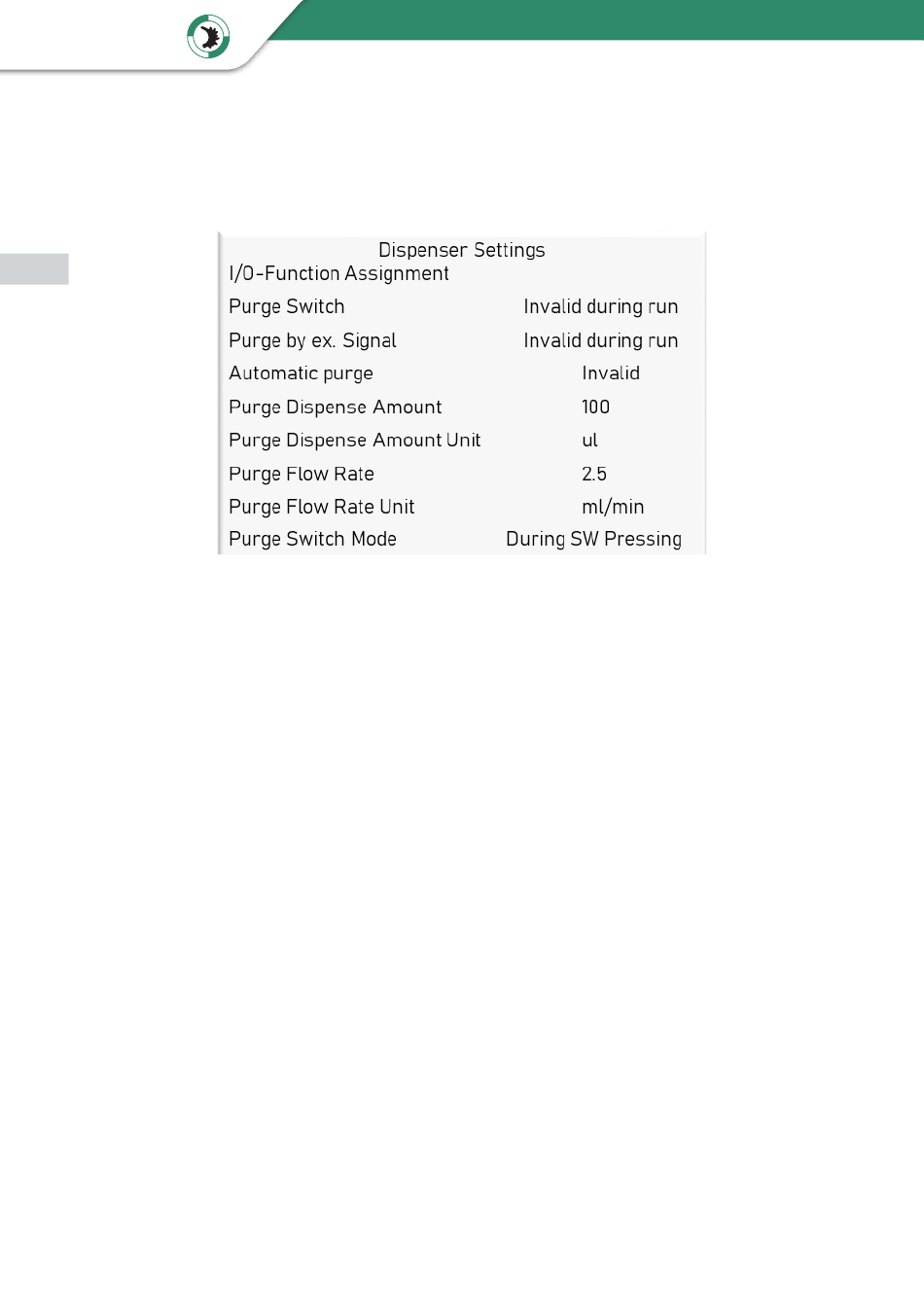

Navigate to the following menu:
MENU / DISPENSER SETTINGS
EN
I/O-Function Assignment Not relevant for smartBOX settings . For detailed information
Purge Switch
Purge by ex. Signal
Automatic purge
Purge Dispense Amount
Purge Dispense Amount
Unit
Purge Flow Rate
Purge Flow Rate Unit
Purge Switch Mode
please refer to the original robot manual .
Defines when the PURGE Button on the Startbox is active .
Defines when the external signal for the PURGE function
is active .
If you have a dispensing material with limited „pot life"
due to curing you can use the automatic purge function to
purge material in fixed intervalls during standby .
Defines the quantity of material per purge cycle
Defines the unit for the purge quantity ([ml], [µl], [sec])
Defines the flowrate when using the Purge function
Defines the unit of the flowrate used by the Automatic
Purge function
Setting amount
Pressing the PURGE-button once dispenses a pre defined
amount of material .
During SW Pressing
The eco-PEN purges as long as the PURGE-button is pressed
(in intervalls of 0,5 seconds)
