CP Arc Point
Performs an arc movement using the specified coordinate as a radius . Please also refer
to the picture above . Note: A CP Arc point always needs a Start of Line dispense/Line
passing before and a Line passing/End of Line dispense after the CP Arc Point . Otherwi-
se a point type error will occuer .
End of Line Dispense
Set this point to the coordinate where you want to stop the line dispensing . Please also
refer to the picture above .

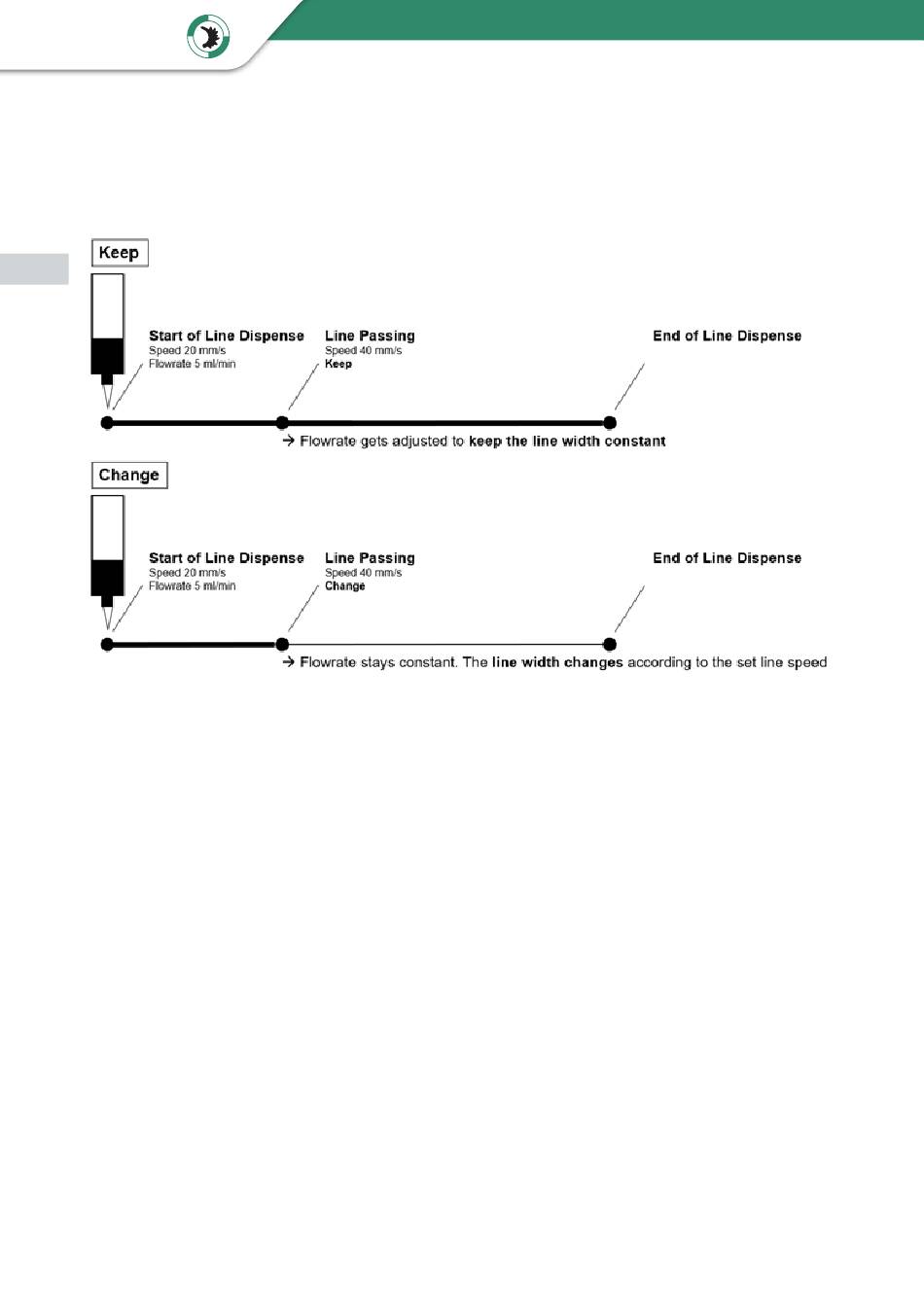

Change: Choose this option if you don't want the line width
to be constant . No change of the flowrate specified on the
line start will be performed .
