Operating Instructions smartBOX

5 Operation

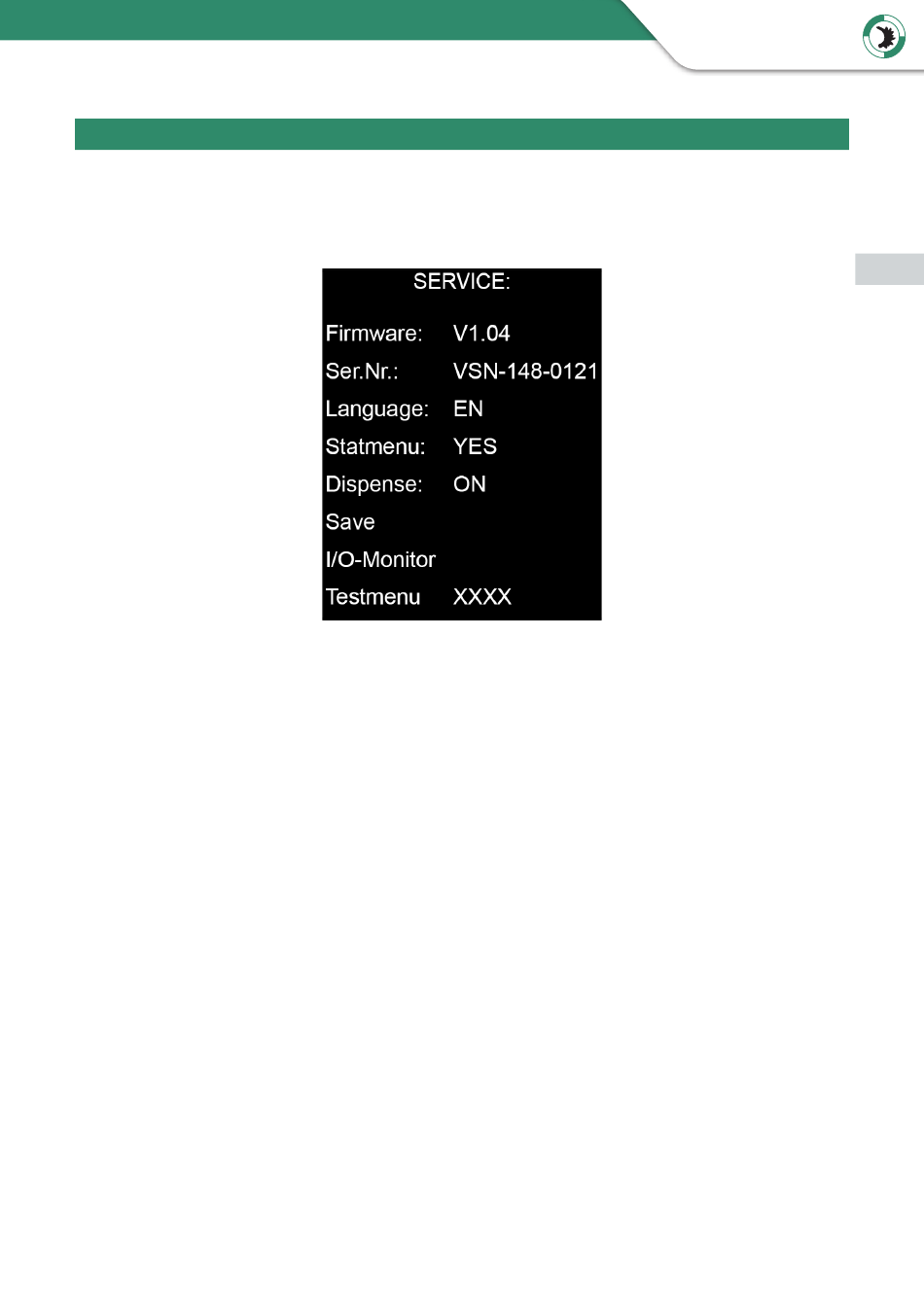

5.1 Service menu

To enter the service menu hold the UP and DOWN Button pressed while powering up
the smartBOX .
Use UP and DOWN, ESC and ENTER buttons to navigate through the menu and change
settings .
Firmware: Shows the actual installed firmware version
Ser . N r . : Shows the serial-number of the smartBOX
Language: setting of language for boot welcome
YES - after booting process, the smartBOX display switches automatically
Statmenu:
after 3 sec . to the STATUS Menu
NO – after booting process, the smartBOX display stays in smartBOX
screen .
Dispense: ON – smartBOX has normal function incl . dispensing
OFF – Although dispensing is active in the robot settings, the ecoPEN
valve does not dispense – needed for TEST RUN for running the
Robot program without dispensing
Save: save the actual settings and leave the SERVICE Menu
I/O-Monitor: opens the test menu for I/O-test with the robot
Test menu service and test – password protected
