iFactory3D One Pro Aufbauanleitung Seite 8

V_97971.01
Assembly

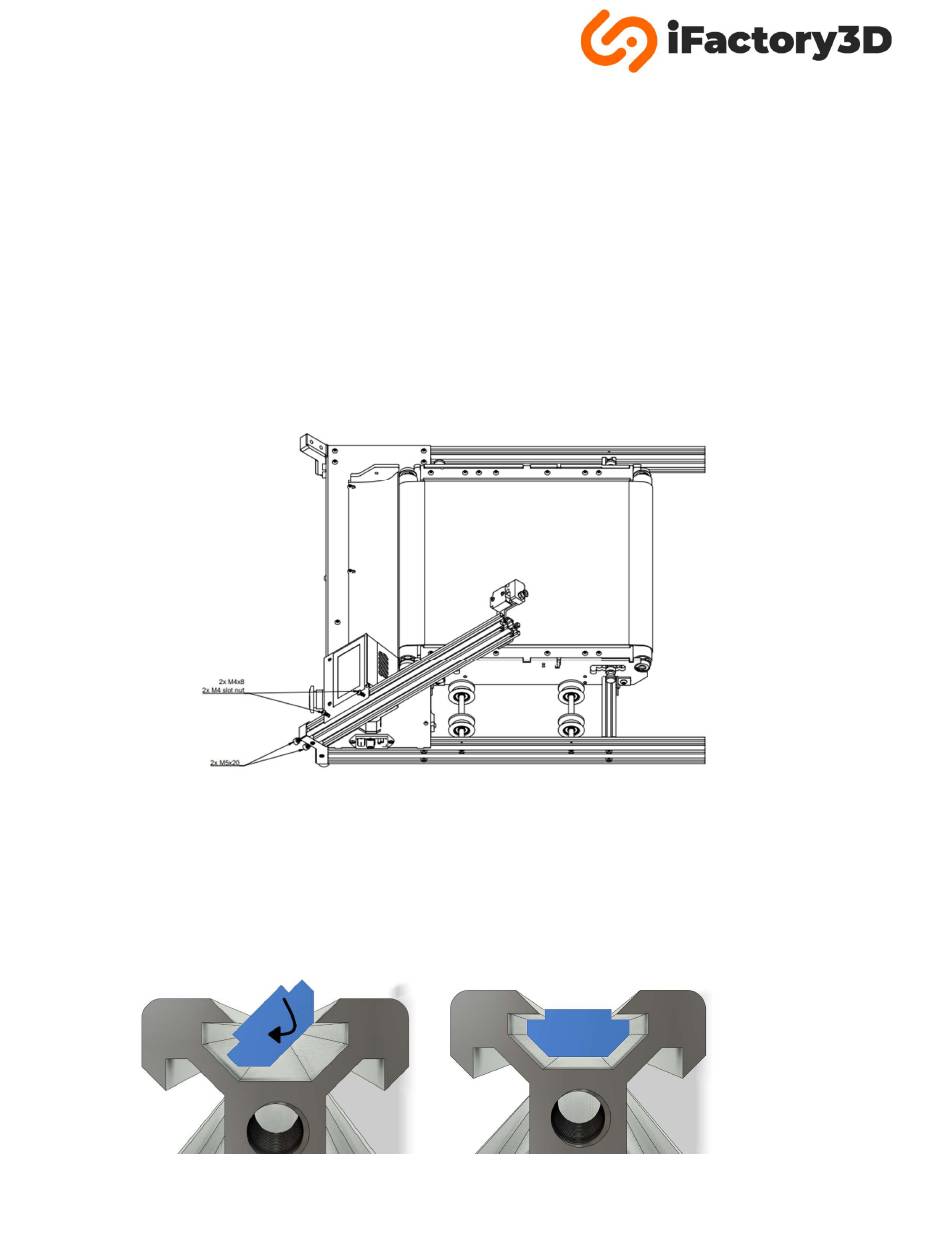

Step 1:
Place AMS-Group1 on a flat surface. Make sure the cable connecting ASM-Group1 and ASM-Group2
is not tensioned.
Now place ASM-Group3 (profile with filament runout sensor) onto the front right foot in a 45° angle.
The filament sensor should point inwards.
Use two M5x20 screws to secure the profile to the foot.
Use two M4x8 screws and two M4 slot nuts to attach the profile to the display.
Note: Slot nuts need to be inserted into the slot of the profile before positioning them:
