iFactory3D One Pro Aufbauanleitung Seite 14

V_97971.01

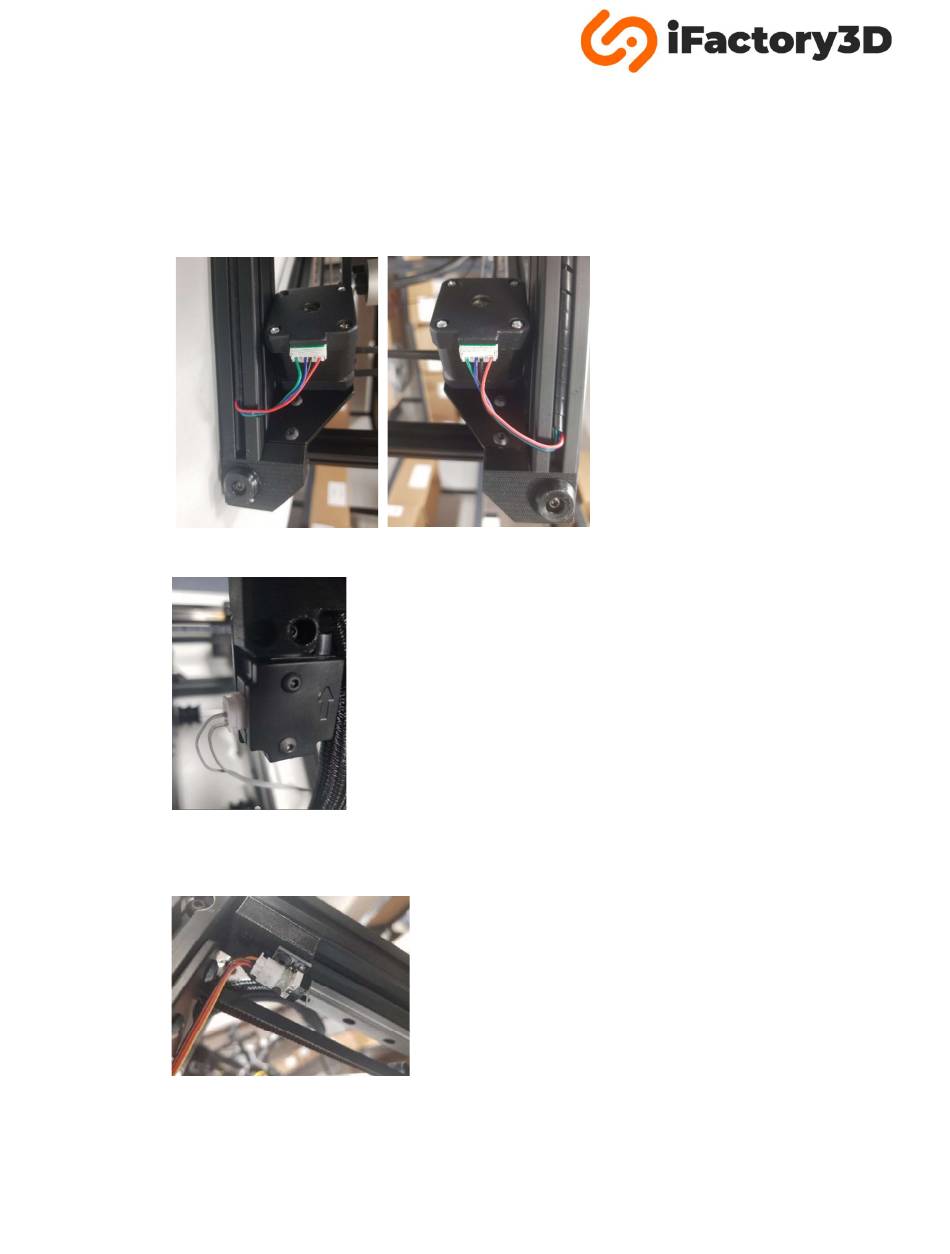

Cables
Plug all four cables in the nearby parts of the machine.
They can just be plugged in one direction.
X- & Y-Motor:
Filament runout sensor:
Use the cable with 2 strands for the filament runout sensor.
Y-Endstop:
Use the cable with 3 strands for the Y-endstop.
Note: For later versions of the machine an optical endstop will be used as Y-endstop. Parts and colors of the cables might look different.
14
