Step 3:
Mount ASM-Group2 on the end of the back profiles of ASM-Group1:
The corner cubes and gt2-tensioning system should point upwards.
Back feet of ASM-Group2 should point downwards.
The cable connecting the printhead with ASM-Group1 must be placed beside the filament runout
bracket from ASM-Group3:

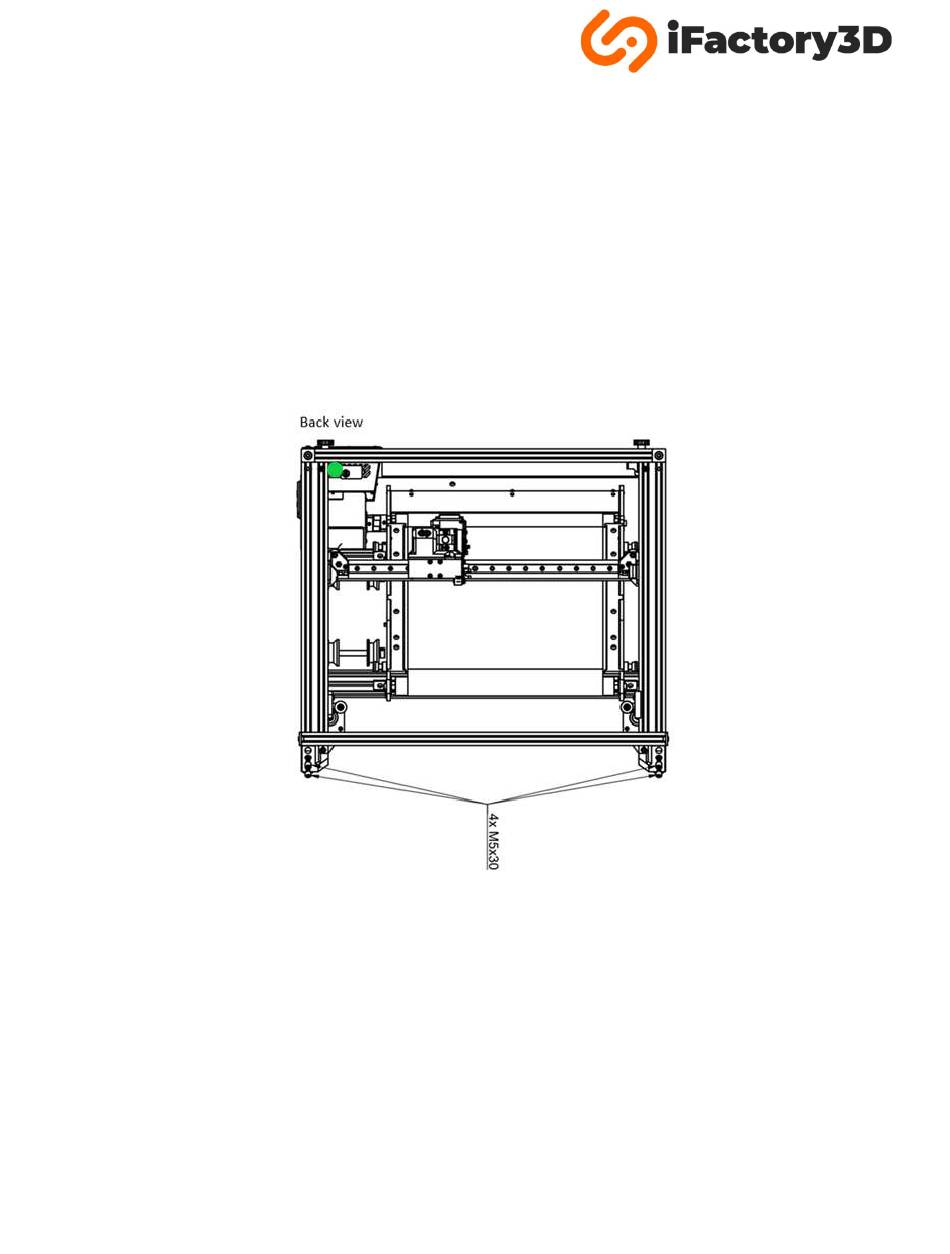

Use four M5x30 screws for the back feet of ASM-Group2.
