NOTICE
Since the penetration of a certain amount of moisture from the ambient air into the housing during fabrication as well as during subsequent use cannot be entirely
avoided, the manufacturer has put silica gel bags into the camera housing.
After some time, these silica gel bags will become saturated. This is a normal physical process and should be addressed by replacing them with new silica gel bags.
During replacement, ensure that the silica gel bags are handled properly. Opening the protective film prematurely can lead to rapid saturation of the silica gel, thereby
rendering it ineffective.
1. Before inserting the silica gel bag, remove the protective cover (aluminium) from the bag. The silica gel will only be effective after the protective aluminium cover
has been removed.
2. Loosely insert the 2 silica gel bags between the housing component and camera mount.
3. Now the silica gel can once again absorb residual moisture that may penetrate the housing.
Instructions for opening the housing to replace the silica gel bags:
1. Loosen the mounting screw (set screw) on the cover ring and unscrew the cover ring.
2. Take off the fixation ring and remove the eyeball camera element from the housing base.
3. Loosen the 3 screws (Phillips) on the bottom cup of the eyeball camera element and pull the two eyeball housing components apart.
4. Remove the 2 silica gel bags and insert 2 new, unused bags as described above.
5. Reinstall the camera.
eneo is a registered trademark of Videor E. Hartig GmbH
®
Exclusive distribution through specialised trade channels only.
Videor E. Hartig GmbH
Carl-Zeiss-Straße 8 · 63322 Rödermark/Germany
Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100
www.videor.com
www.eneo-security.com

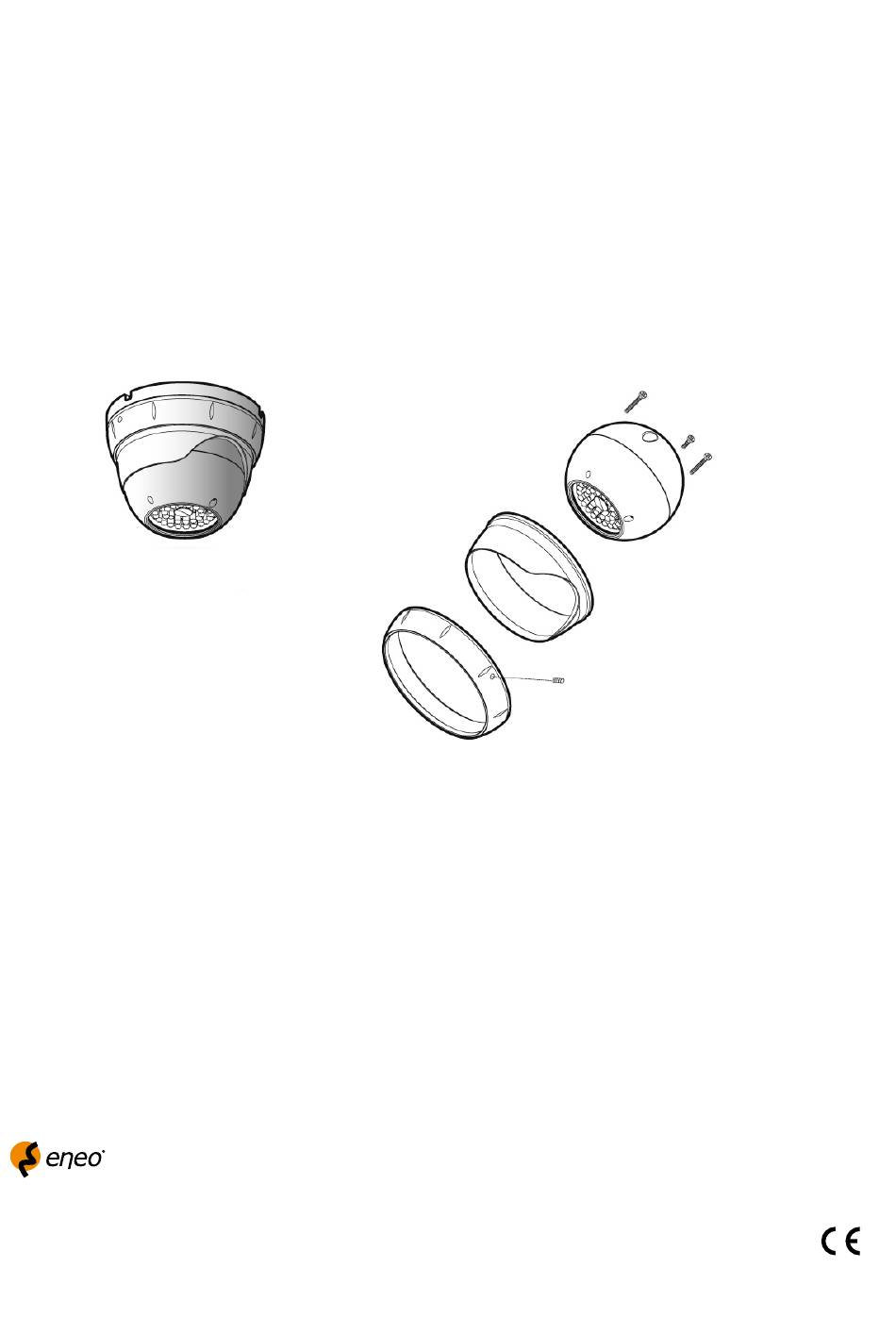

Fixation ring
