Installation and Operating Instructions
1/3" Day/Night Dome Camera
with LED Illumination,Fixed, VKCD-1325B-/IR

1. Safety Instructions

• Read these safety instructions and the operation manual first before you
install and commission the camera.
• Keep the manual in a safe place for later reference.
• Protect your camera from contamination with water and humidity to prevent
it from permanent damage.
Never switch the camera on when it gets wet. Have it checked at an
authorized service center in this case.
• Never operate the camera outside of the specifications as this may prevent
the camera functioning.
• Do not operate the cameras beyond their specified temperature, humidity or
power ratings.
• Operate the camera only at a temperature range of -10°C to +50°C and at
a humidity of max. 90%.
• To disconnect the power cord of the unit, pull it out by the plug.
Never pull the cord itself.
• Pay attention when laying the connection cable and observe that the cable
is not subject to heavy loads, kinks, or damage and no moisture can get in.
• Do not attempt to disassemble the camera board from the dome.
• The warranty becomes void if repairs are undertaken by unauthorized
persons. Do not open the camera housing.
• Never point the camera towards the sun with the aperture open.
This can destroy the sensor.
• Installation, maintenance and repair have to be carried out only by authorized
service centers. Before opening the cover disconnect the unit from mains input.
• Contact your local dealer in case of malfunction.
• Only use original parts and original accessories from Videor E. Hartig GmbH.
• Do not use strong or abrasive detergents when cleaning the dome.
Use a dry cloth to clean the dome surface.
In case the dirt is hard to remove, use a mild detergent and wipe gently.
• All openings provided in the housing for assembly purposes must be closed
and/or sealed.
• It is unavoidable that, during manufacturing and also during subsequent
use, the moisture contained in ambient air is, to some extent, present in the
housing. With strong temperature variations, the moisture may develop
condensation within the housing.
In order to avoid this in the tightly locked housing, the manufacturer has
inserted silica gel bags inside the camera.
It is a physical fact that these silica gel bags do reach saturation after a
while. They must therefore be replaced with new silica gel bags.
• The installer is responsible for ensuring that the degree of protection
as per the technical specifications is upheld, e.g. by using all enclosed
gasket seals and O-rings, by waterproofing the cable exits with silicon
or through laying the cable in such a way that the cable does not act
as a „gutter".
• During assembly, care must be taken to ensure that existing seals are
correctly inserted and are not displaced as a result of assembly.
You must not continue to use damaged seals.
NOTE: This is a class A digital device. This digital device can cause
harmful interference in a residential area; in this case the user
may be required to take appropriate corrective action at his/her
own expense.

2. General Description

• For wall and ceiling flush and surface mount
• Vandal and tamper-resistant
• Integrated F1.2/3.8-9.5mm Varifocal DC iris lens
• Externally adjustable Focus and Zoom
• Removable IR cut filter
• Sensitivity of 0.1Lux at F1.2 (colour)
• Backlight compensation (BLC)
• Flickerless On/Off
• Automatic White Balance (AWB)
• IR illumination by 25 integrated 850nm LEDs
• Manual 3-axis camera gimbal
• Supply Voltage: 12VDC
• Ball eye size 96mm

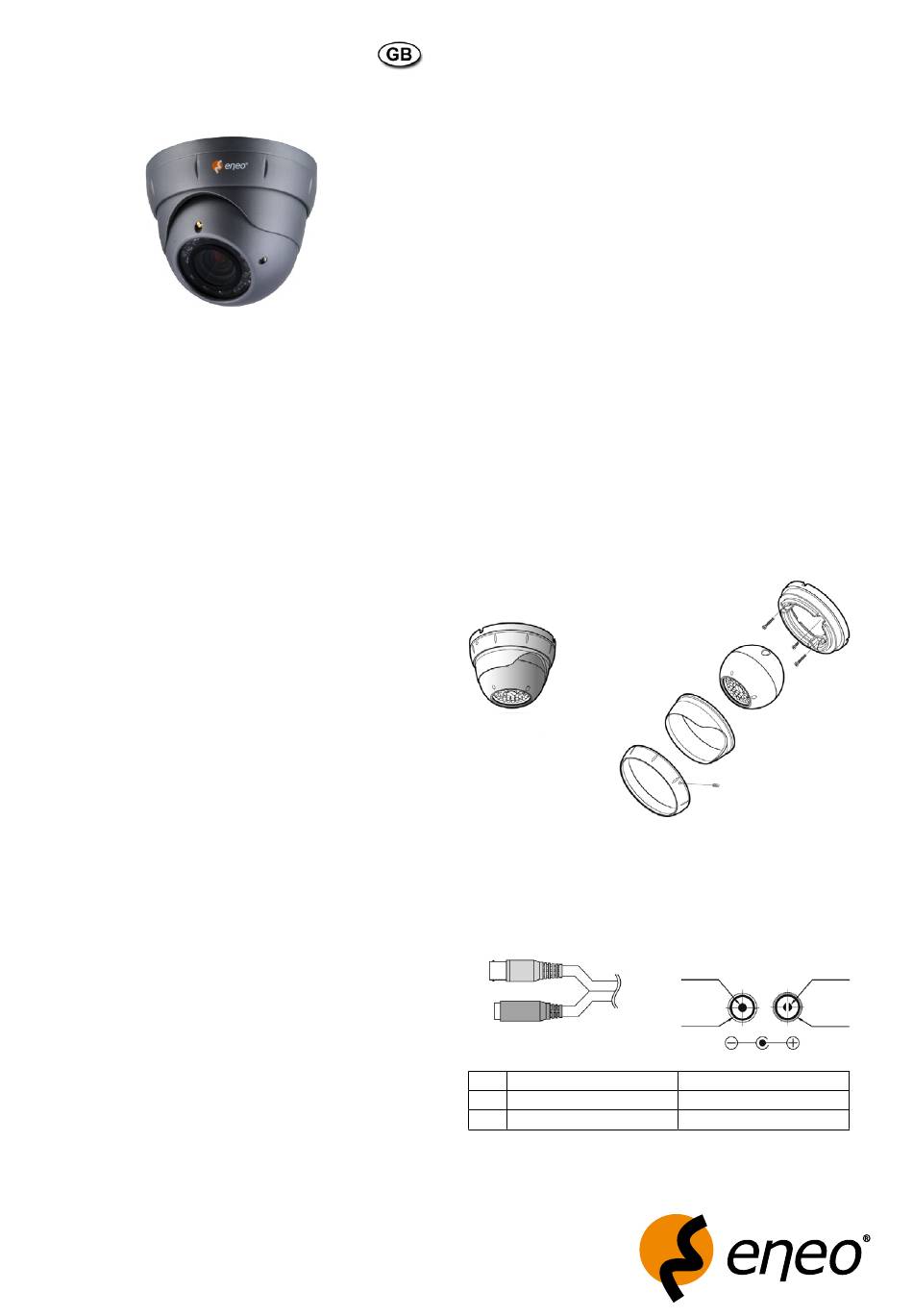

3. Installation
1) Fix the base housing to the desired place with screws supplied.
2) Adjust desired scene by turning and moving the eyeball camera and fix it
with stopping ring.
3) Put the dome cover over the base housing and turn it clockwise by hand.
4) To fix dome cover tide, use mounting screw.
stopping ring
dome cover

4. Power connection

12VDC
Video / yellow
1
2
Power / red
No. Function
1
video output
2
power input
base housing
mounting screw
Eyeball camera
fixing screw
Video output 12VDC (+)
GND
Terminal Colour
yellow
red
GND
