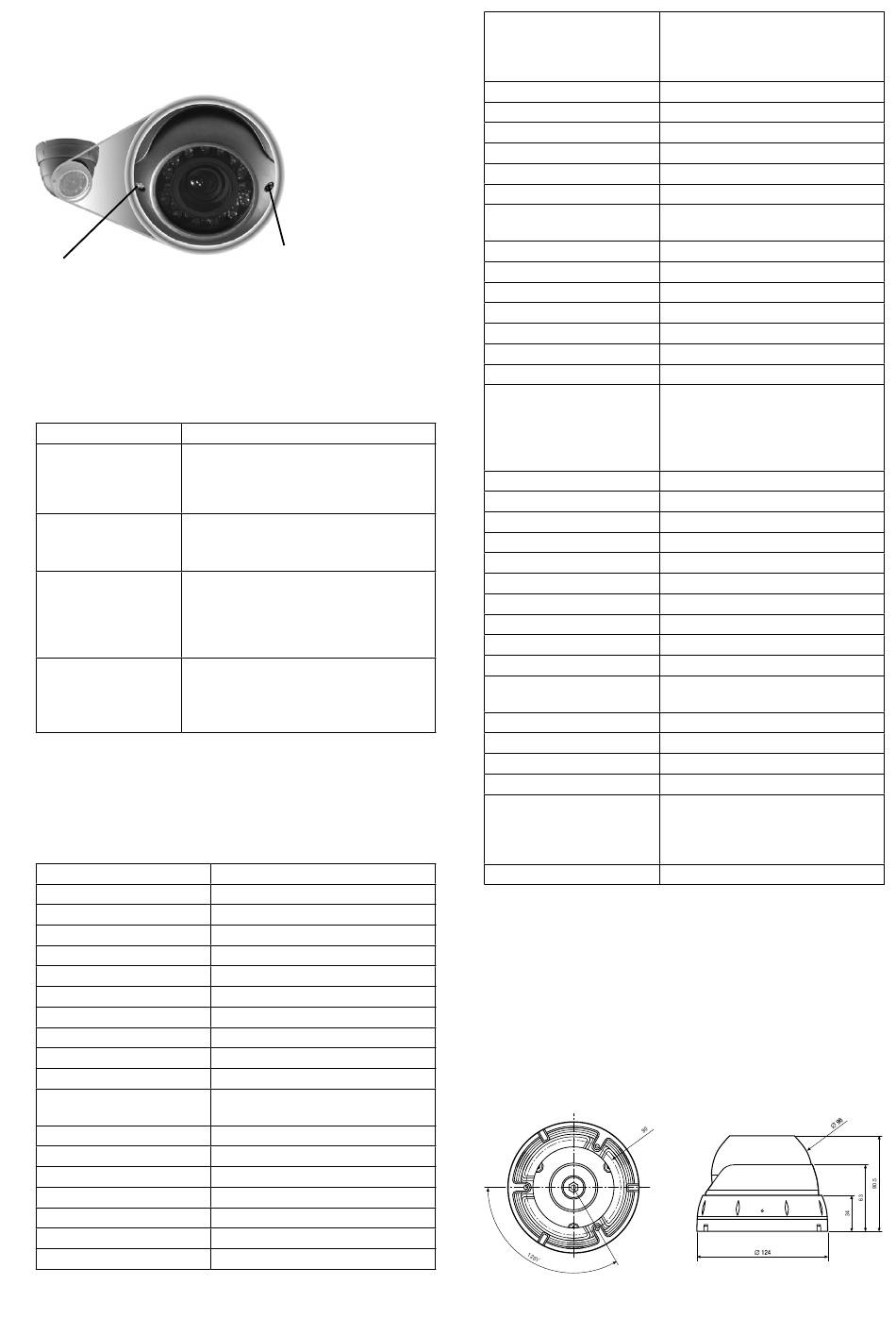

Dimensional Drawings - Eneo VKCD-1325B-/IR Montage- Und Betriebsanleitung

5. Composition External Lens Adjustment of Zoom / Focus
Varifocal lens type
External Zoom Adjustment
Tele / Wide
6. Troubleshooting
Problem Solution
The image does not • Check the power source for the monitor and
appear on the screen. camera and assure that the voltage and
polarity are properly connected and being
supplied correctly.
The image on the screen • Check if the lens is stained. If dirty, clean
is dim. the lens with a soft, clean cloth.
• Adjust the Back Focus of the lens again.
The camera does not work • Check if you have connected the camera
properly, the surface of the to a proper power source and if there is no
camera case is hot, and a problem with the power, turn the unit off
black line appears on the immediately and seek assistance from
screen. Videor E. Hartig GmbH.
The screen blinks a lot. • Check if the camera is pointed towards the
sun or a fluorescent lamp.
• Adjust the angle or location of the camera if
too much light is coming into the screen.
7. Specifications
Type
Art. No.
System
Video standard
Sensor size
Imager
Active picture elements
Horizontal resolution
Synchronization
Signal-to-noise ratio
Gamma correction
Sensitivity
(at 50% video signal)
Automatic gain control (AGC)
Low speed shutter
Digital Noise Reduction (DNR) no
Backlight compensation
Wide Dynamic Range (WDR)
White balance
Aperture Correction (APC)
External Focus Adjustment
Far / Near
VKCD-1325-B/IR
92597
day&night
PAL
1/3"
CCD, Sony Super HAD Interline Transfer
440,000 (H) 752 x (V) 582
600 TVL
internal
50dB (AGC OFF)
0.45
0.1 Lux, (colour), 0.05Lux (B&W) at F1.2
(measured)
supplied
no
no
no
automatic
horizontal, vertical
IR cut filter
Activity detection
Digital zoom
Analysis Functions
Lens type
Focal length
Horizontal angle of view
MOD
(Minimum object distance)
Aperture range (F)
External adjustments
Video outputs
Alarm inputs
Alarm outputs
PTZ support
Rotation range
Illumination
Light sensor
External connections
Serial interfaces
Housing
Housing material
Colour (housing)
Heater
Mounting
Supply voltage
Power consumption
Temperature range
(operation)
Protection rating
Vandalism resistant
Dimensions
Weight
Parts supplied
Certificates
Optional Accessories
The optional accessories currently available can be found on our Homepages:
www.videor.com and www.eneo-security.com

8. Dimensional Drawings

switchable, motorized, switchable filter.
Automatic function depend on the amount
of light. In removed filter position, the
colour signal will be switched OFF
no
no
no
varifocal
3.8 mm - 9.5 mm
74.2° - 30°
0.15 m
F1.2 ~ F260
zoom and focus
composite (CVBS), 1Vp-p, CVBS, 75ohms
–
–
no
360°
infrared, 25x IR LED (850nm, 30°).
Due to an integrated light sensor the LED
illumination will be switched ON/OFF,
depending on environmental illumination
conditions.
no
video (BNC), voltage input
no
outdoor
aluminium
anthracite
no
wall mount, ceiling mount
12VDC (+/-10%)
5W
-10°C ~ +50°C
IP66
yes
see drawing
870g
dome camera, bag of screws, allen
key, DC cable with open ends, drilling
template, manual, special key for lens
adjustment
CE
Dimensions: mm
