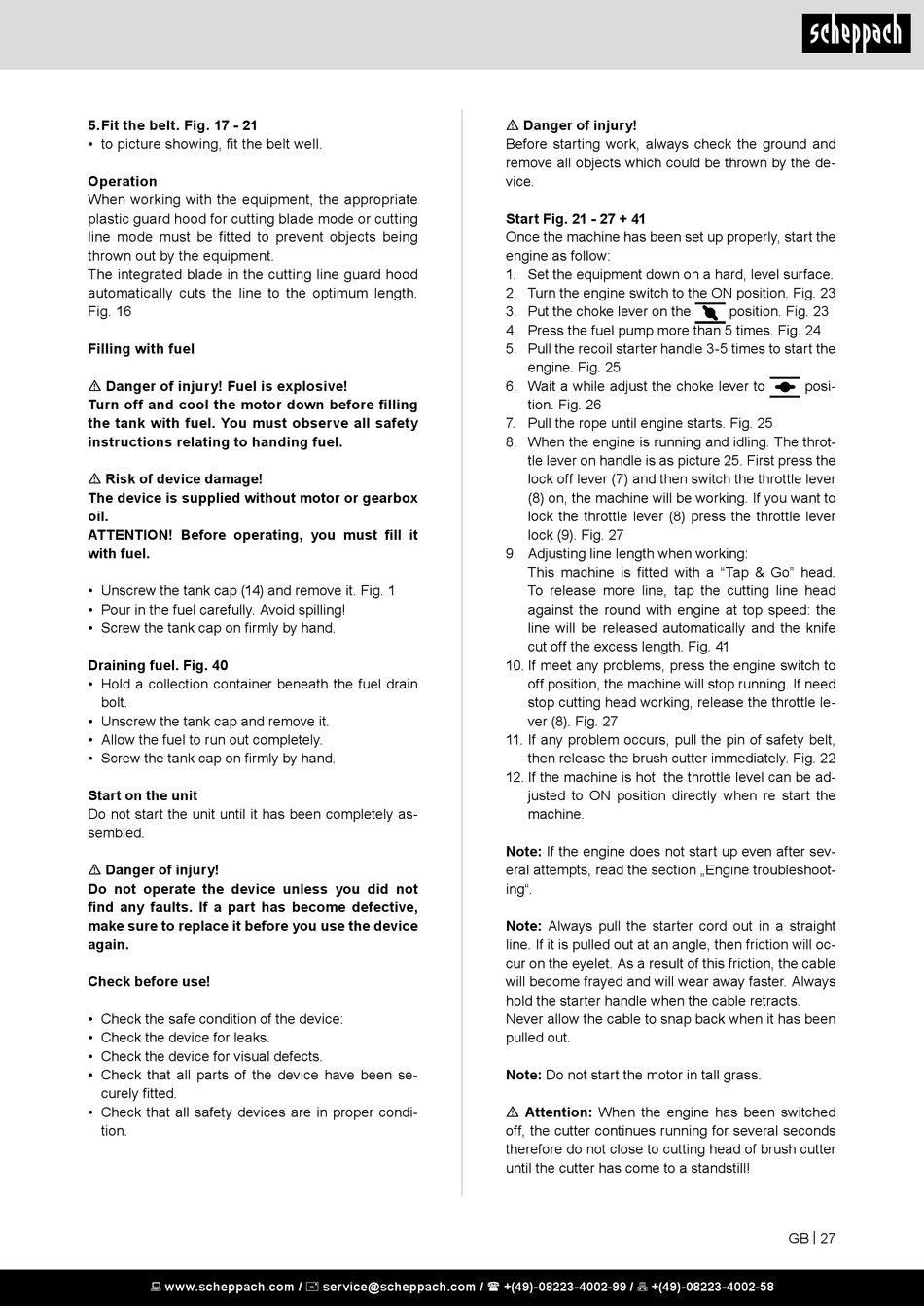

5. Fit the belt. Fig. 17 - 21
• to picture showing, fit the belt well.
Operation
When working with the equipment, the appropriate
plastic guard hood for cutting blade mode or cutting
line mode must be fitted to prevent objects being
thrown out by the equipment.
The integrated blade in the cutting line guard hood
automatically cuts the line to the optimum length.
Fig. 16
Filling with fuel
m Danger of injury! Fuel is explosive!
Turn off and cool the motor down before filling
the tank with fuel. You must observe all safety
instructions relating to handing fuel.
m Risk of device damage!
The device is supplied without motor or gearbox
oil.
ATTENTION! Before operating, you must fill it
with fuel.
• Unscrew the tank cap (14) and remove it. Fig. 1
• Pour in the fuel carefully. Avoid spilling!
• Screw the tank cap on firmly by hand.
Draining fuel. Fig. 40
• Hold a collection container beneath the fuel drain
bolt.
• Unscrew the tank cap and remove it.
• Allow the fuel to run out completely.
• Screw the tank cap on firmly by hand.
Start on the unit
Do not start the unit until it has been completely as-
sembled.
m Danger of injury!
Do not operate the device unless you did not
find any faults. If a part has become defective,
make sure to replace it before you use the device
again.
Check before use!
• Check the safe condition of the device:
• Check the device for leaks.
• Check the device for visual defects.
• Check that all parts of the device have been se-
curely fitted.
• Check that all safety devices are in proper condi-
tion.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
m Danger of injury!
Before starting work, always check the ground and
remove all objects which could be thrown by the de-
vice.
Start Fig. 21 - 27 + 41
Once the machine has been set up properly, start the
engine as follow:
1. Set the equipment down on a hard, level surface.
2. Turn the engine switch to the ON position. Fig. 23
3. Put the choke lever on the
4. Press the fuel pump more than 5 times. Fig. 24
5. Pull the recoil starter handle 3-5 times to start the
engine. Fig. 25
6. Wait a while adjust the choke lever to
tion. Fig. 26
7. Pull the rope until engine starts. Fig. 25
8. When the engine is running and idling. The throt-
tle lever on handle is as picture 25. First press the
lock off lever (7) and then switch the throttle lever
(8) on, the machine will be working. If you want to
lock the throttle lever (8) press the throttle lever
lock (9). Fig. 27
9. Adjusting line length when working:
This machine is fitted with a "Tap & Go" head.
To release more line, tap the cutting line head
against the round with engine at top speed: the
line will be released automatically and the knife
cut off the excess length. Fig. 41
10. If meet any problems, press the engine switch to
off position, the machine will stop running. If need
stop cutting head working, release the throttle le-
ver (8). Fig. 27
11. If any problem occurs, pull the pin of safety belt,
then release the brush cutter immediately. Fig. 22
12. If the machine is hot, the throttle level can be ad-
justed to ON position directly when re start the
machine.
Note: If the engine does not start up even after sev-
eral attempts, read the section „Engine troubleshoot-
ing".
Note: Always pull the starter cord out in a straight
line. If it is pulled out at an angle, then friction will oc-
cur on the eyelet. As a result of this friction, the cable
will become frayed and will wear away faster. Always
hold the starter handle when the cable retracts.
Never allow the cable to snap back when it has been
pulled out.
Note: Do not start the motor in tall grass.
m Attention: When the engine has been switched
off, the cutter continues running for several seconds
therefore do not close to cutting head of brush cutter
until the cutter has come to a standstill!
position. Fig. 23
posi-
