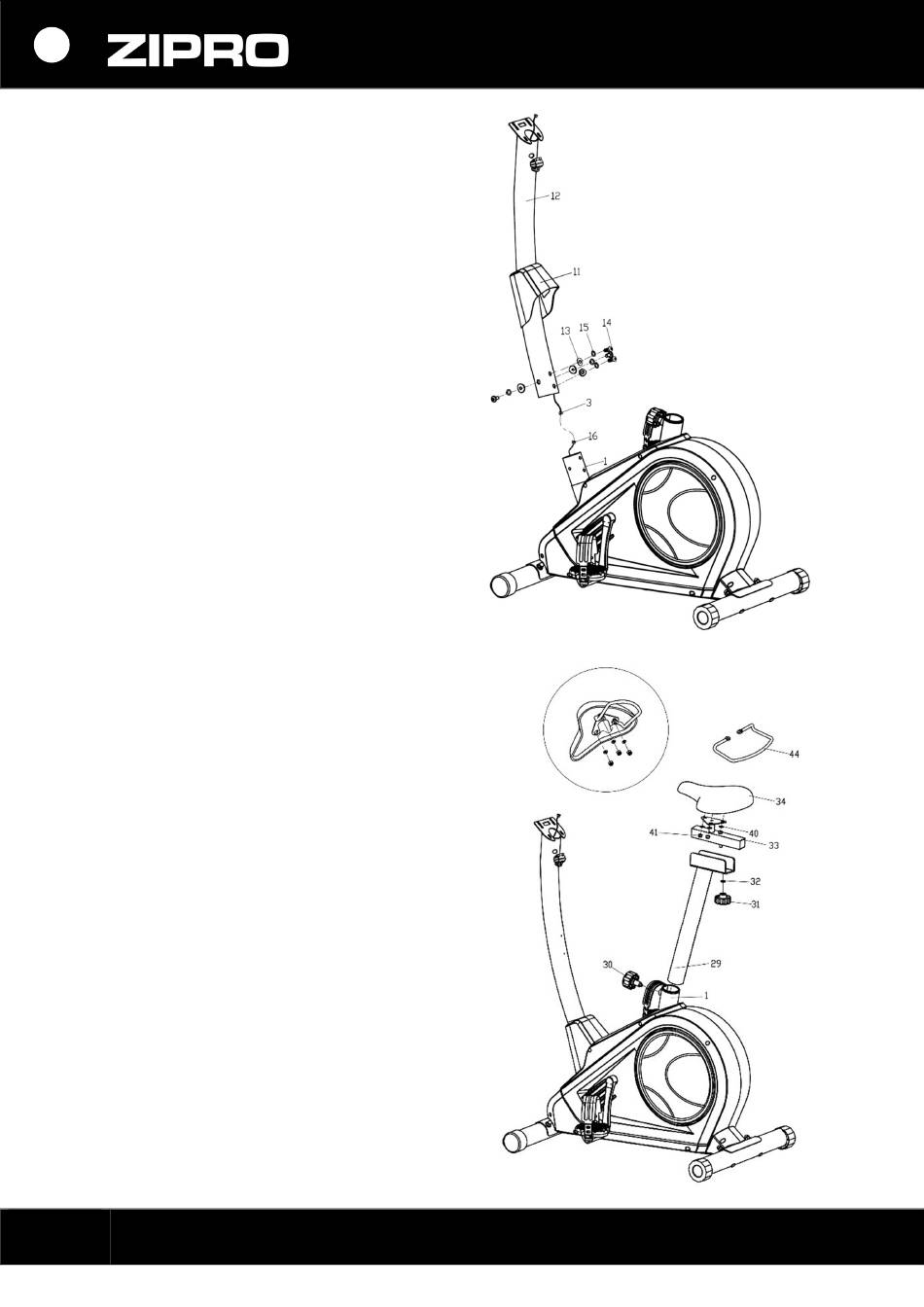

STEP 3.
Install the cover (11) onto the handlebar
column (12). Connect the computer cable (3)
to the connecting cable (16).
Fix the handlebar column (12) to the main
frame (1) with Allen bolts (14), spring washers
(15), and curved washers (13).
Slide the handlebar column cover on (11).
STEP 4.
Fix the saddle (34) and a towel holder (44) to
the saddle guide (33) using nuts (41) and flat
washers (40). Fix the guide (33) with the
saddle (34) to the saddle column (29).
Set the saddle to the right position and lock it
with the horizontal adjustment knob (30),
washer (32) and U mount (16).
Slide the column (13) with the saddle (18) into
the rear part of the main frame. Position the
saddle at the desired height and lock it with
the vertical adjustment knob (30).
NOTE! Do not exceed the maximum and
minimum height when adjusting the saddle
height.
NOTE! Before using the device, make sure the
saddle (34) is stable in the guide (33).
