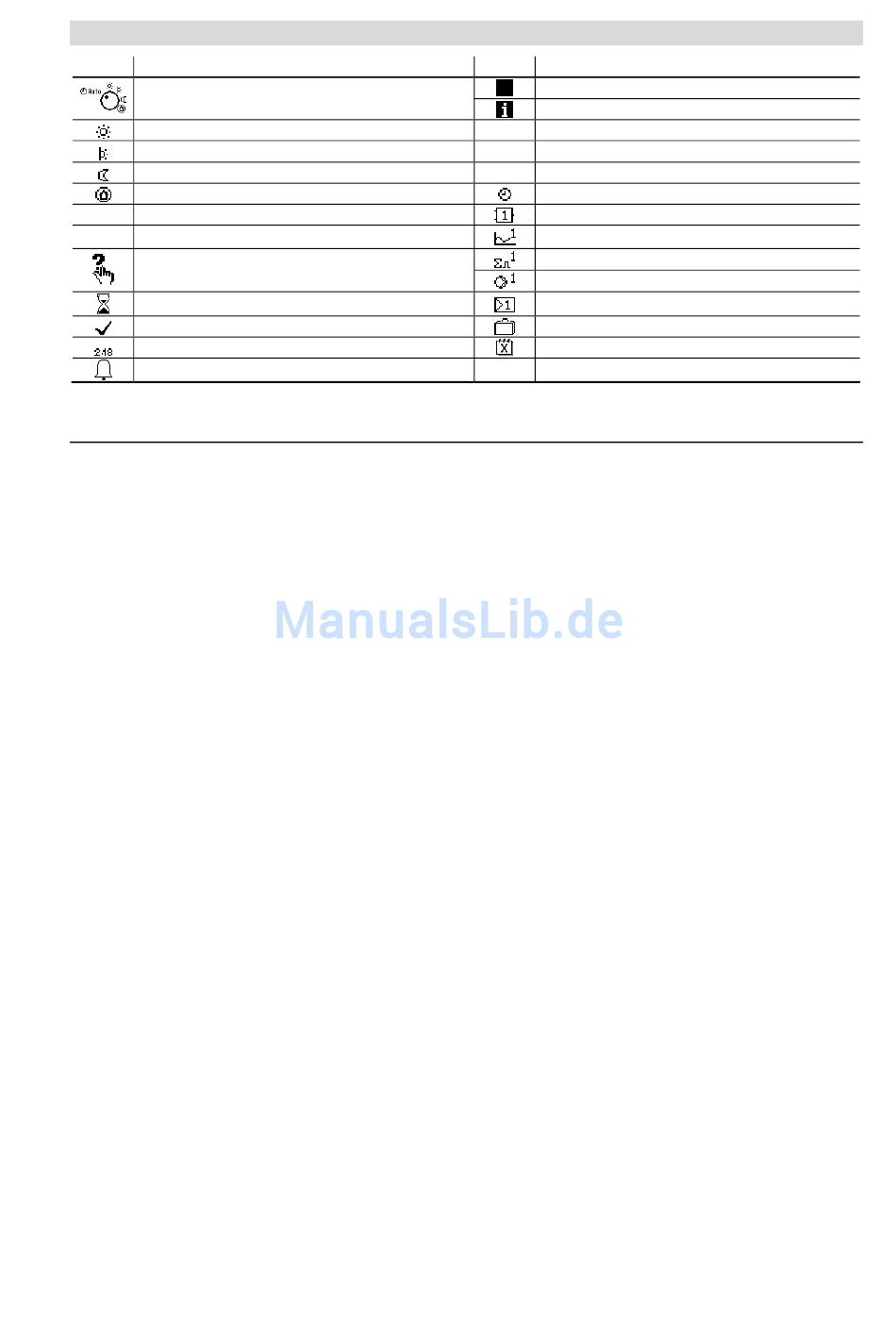

Symbols and characters on the display

Symbol Meaning
Virtual operating mode selector
(dot indicates the current operating mode).
Room operating mode "Comfort".
Room operating mode "Precomfort".
Room operating mode "Economy".
Protection.
Help picture "Explanations relating to the
query data point".
Please wait – the controller is working
Value set
Page numbers – current / total
Fault
Building Technologies / HVAC Products
Symbol Meaning
Setting level – display and settings
Info level – display of key plant data
Time switch
Operation selector (Logic 1) or Logic 1
Trend 1
Meter 1
Pump 1
Controller 1
Holidays
Special day
CE1B3144x2 74 319 0350 0a
5
31.01.2007
