TOURNUS EQUIPEMENT ROLL' Service Installations-, Betriebs- Und Flegeanweisung Seite 23

maintenance: Taking down the top cover.
2
1
Black side clip-type handle
code 262 062
ABS cabinet top corner, grey
code 262 062

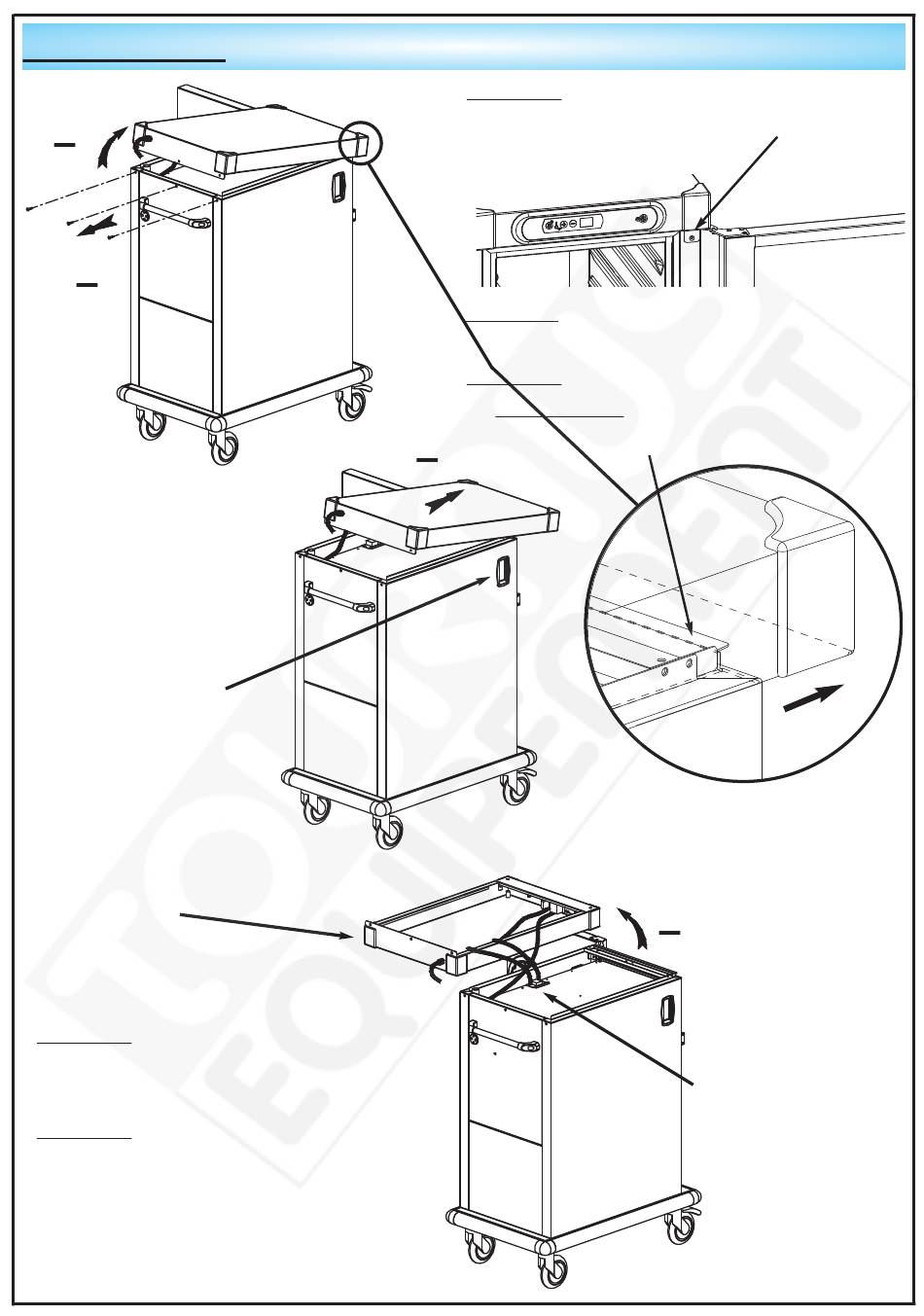

• STEP n° 4: Fold back the top cover to access
the electrical wiring, the control card or safety
thermostat.
• STEP n° 5: Put back the different
components in reverse order to dismantling
(be careful not be catch the cables).
• STEP n° 1: Remove the 3 holding screws from the
top cover and the one located at the top of the
door.
•
STEP n° 2: Swivel the cover to be able to slide it
forwards.
• STEP n° 3: Slide the cover forwards to free it from
the cabinet holding return device.
3
104 000 Iss.13
104 000 Iss.13
4
Safety thermostat
double pole type,
120°C
code 262 091
- 23 -
