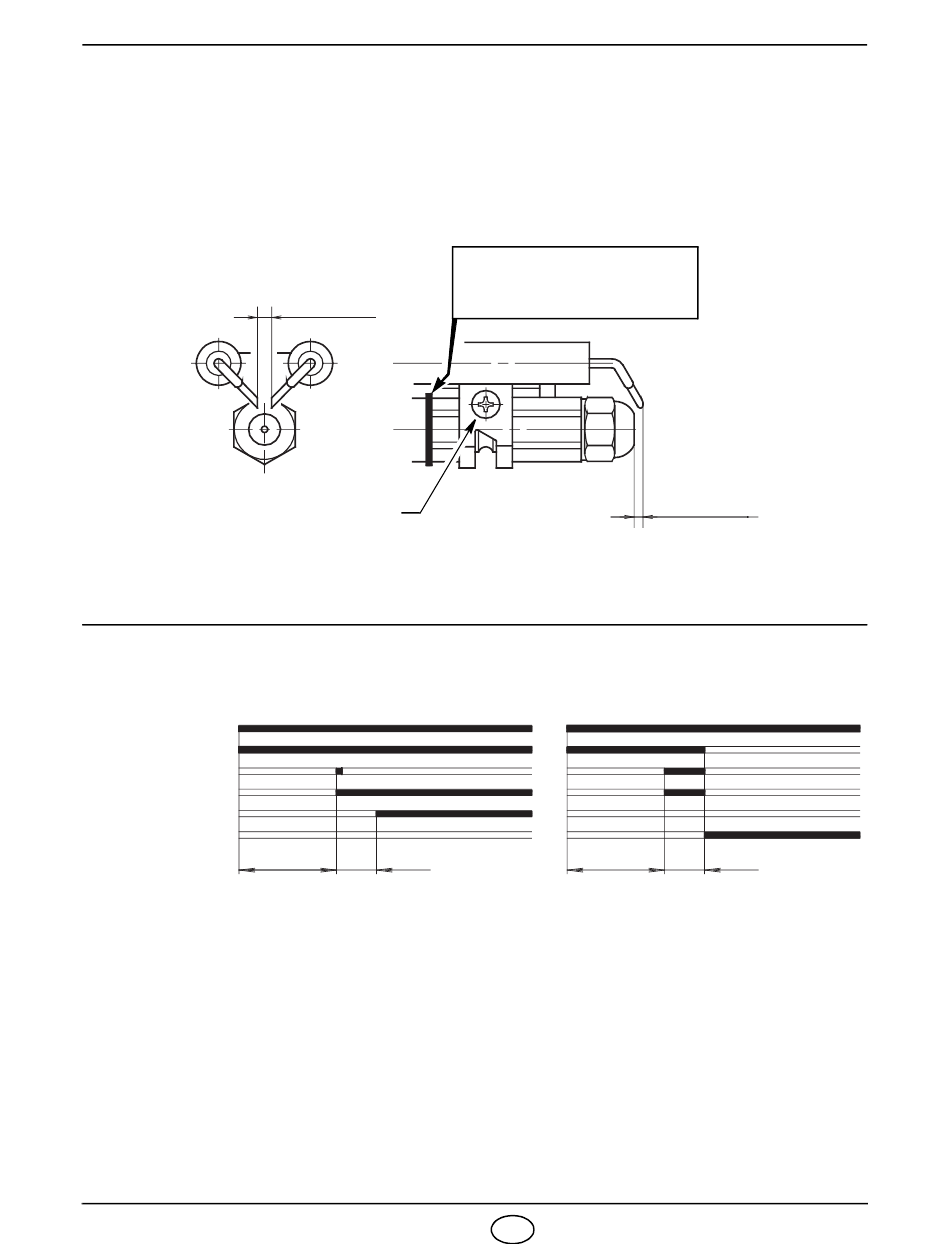

ELECTRODE SETTING
Attention:
Before assembling or removing the nozzle, loosen the screw (A) and move the electrodes ahead.
D5288

BURNER START-UP CYCLE

Normal
Thermostat
Motor
Ignition transformer
st
1 stage valve
nd
2 stage valve
Lock-out lamp
2355
