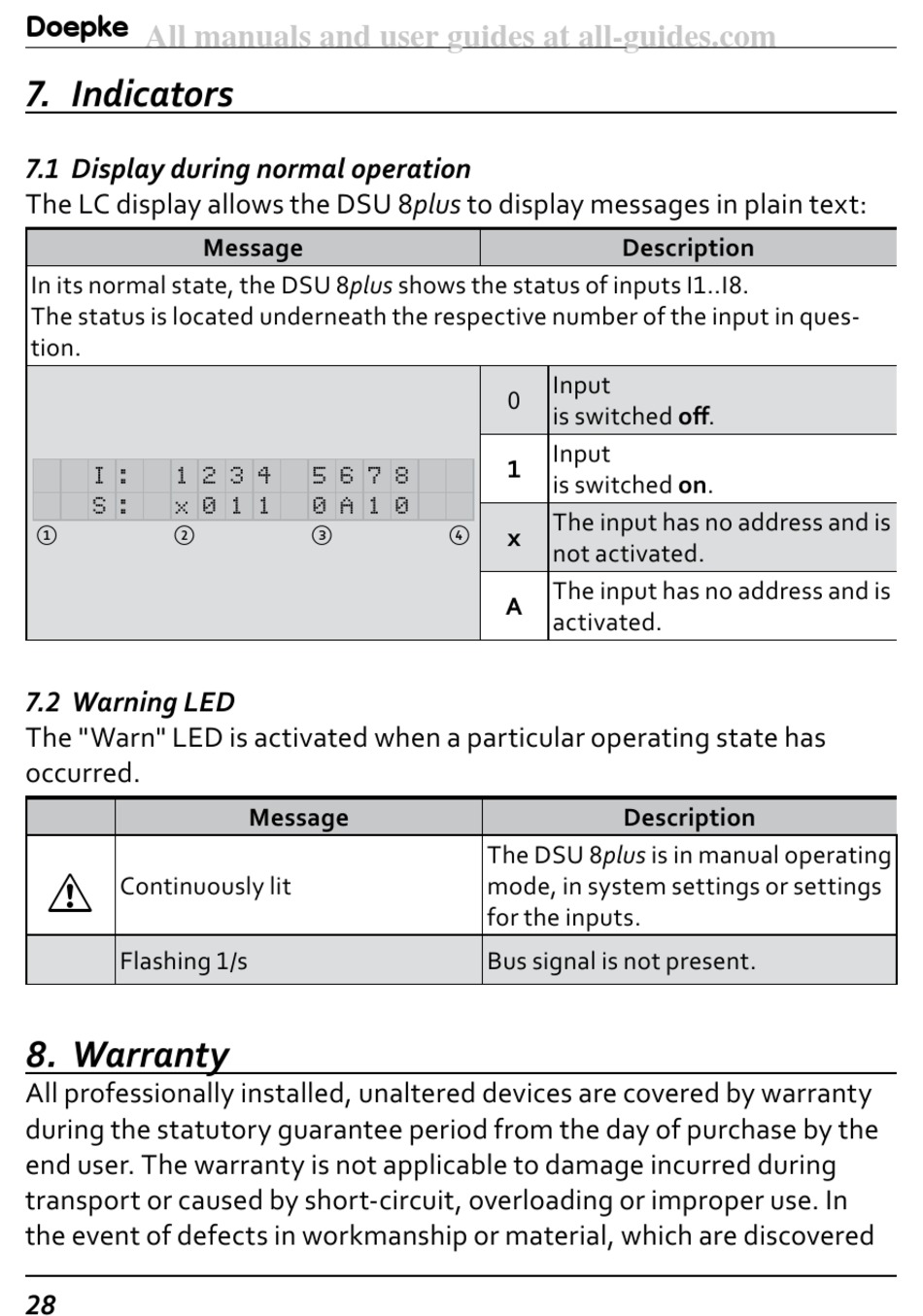

7. Indicators

7.1 Display during normal operation

The LC display allows the DSU 8plus to display messages in plain text:
In its normal state, the DSU 8plus shows the status of inputs I1..I8.
The status is located underneath the respective number of the input in ques-
tion�
I : 1 2 3 4
S : x 0 1 1
① ②

7.2 Warning LED

The "Warn" LED is activated when a particular operating state has
occurred�
!
Continuously lit
Flashing 1/s

8. Warranty

All professionally installed, unaltered devices are covered by warranty
during the statutory guarantee period from the day of purchase by the
end user. The warranty is not applicable to damage incurred during
transport or caused by short-circuit, overloading or improper use. In
the event of defects in workmanship or material, which are discovered
28
Message
5 6 7 8
0 A 1 0
③
Message
Description
Input
0
is switched off�
Input
1
is switched on�
The input has no address and is
④
x
not activated�
The input has no address and is
A
activated�
Description
The DSU 8plus is in manual operating
mode, in system settings or settings
for the inputs.
Bus signal is not present.
