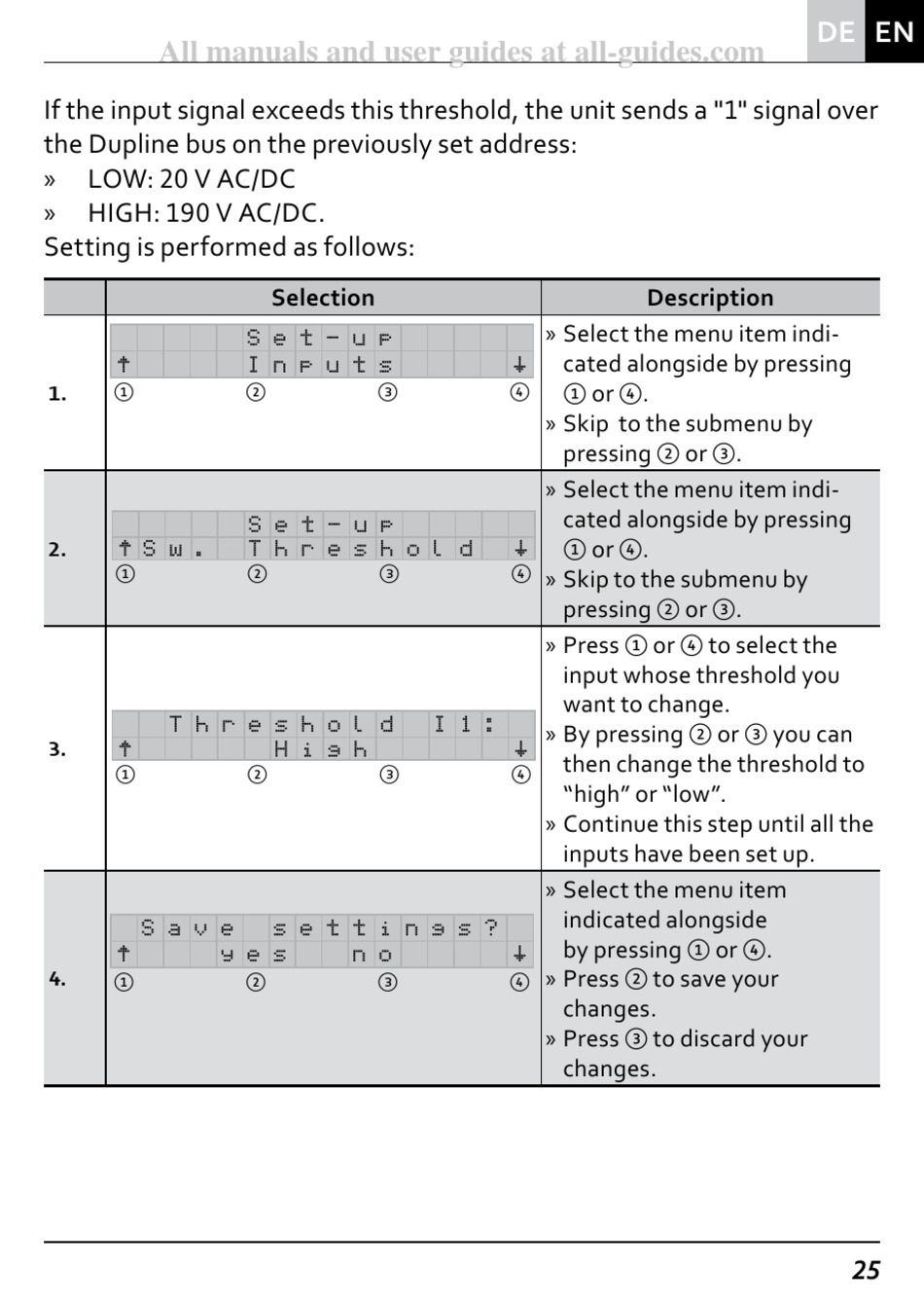

If the input signal exceeds this threshold, the unit sends a "1" signal over
the Dupline bus on the previously set address:
» LOW: 20 V AC/DC
» HIGH: 190 V AC/DC.
Setting is performed as follows:
�
①
1.
2.
� S w .
①
T h r e s h o l d
3.
�
①
S a v e
�
4.
①
Selection
S e t - u p
I n p u t s
② ③
S e t - u p
T h r e s h o l d
② ③
H i g h
② ③
s e t t i n g s ?
y e s n o
② ③
» Select the menu item indi-
cated alongside by pressing
�
④ ① or ④.
» Skip to the submenu by
pressing ② or ③.
» Select the menu item indi-
cated alongside by pressing
① or ④.
�
④
» Skip to the submenu by
pressing ② or ③.
» Press ① or ④ to select the
input whose threshold you
want to change.
I 1 :
» By pressing ② or ③ you can
�
then change the threshold to
④
"high" or "low".
» Continue this step until all the
inputs have been set up.
» Select the menu item
indicated alongside
by pressing ① or ④.
�
» Press ② to save your
④
changes.
» Press ③ to discard your
changes.
