Doepke Dupline DSS 4UR-N Bedienungsanleitung

4-fach ein-/ausgangsmodule

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

Doepke
4-fach Ein-/Ausgangsmodule DSS 4UR-N/-P
DSS 4UR-N/-P 4-way input/output modules

Inhaltsverzeichnis

1. Allgemeines.............................. 2
3. Kodierung................................. 2
4. Inbetriebnahme ........................ 3
5. Garantie ................................... 3
6. Technische Daten .................... 3
Downloaded from
www.Manualslib.com
Dupline
Bedienungsanleitung
Operating Instructions
manuals search engine
Table of Contents
7. General Information ................. 5
9. Coding...................................... 5
10. Putting into Service .................. 6
11. Guarantee ................................ 6
12. Technical Data ......................... 6
13. Anschlussbeispiele / Conn. Ex. 8
3931305/2014.15/E

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Doepke Dupline DSS 4UR-N

  • Seite 1: Inhaltsverzeichnis

    Doepke Dupline 4-fach Ein-/Ausgangsmodule DSS 4UR-N/-P DSS 4UR-N/-P 4-way input/output modules Bedienungsanleitung Operating Instructions Inhaltsverzeichnis Table of Contents 1. Allgemeines......2 7. General Information ....5 2. Wichtige Hinweise vorab..2 8. Important Notes in Advance ..5 3. Kodierung......... 2 9.
  • Seite 2: Allgemeines

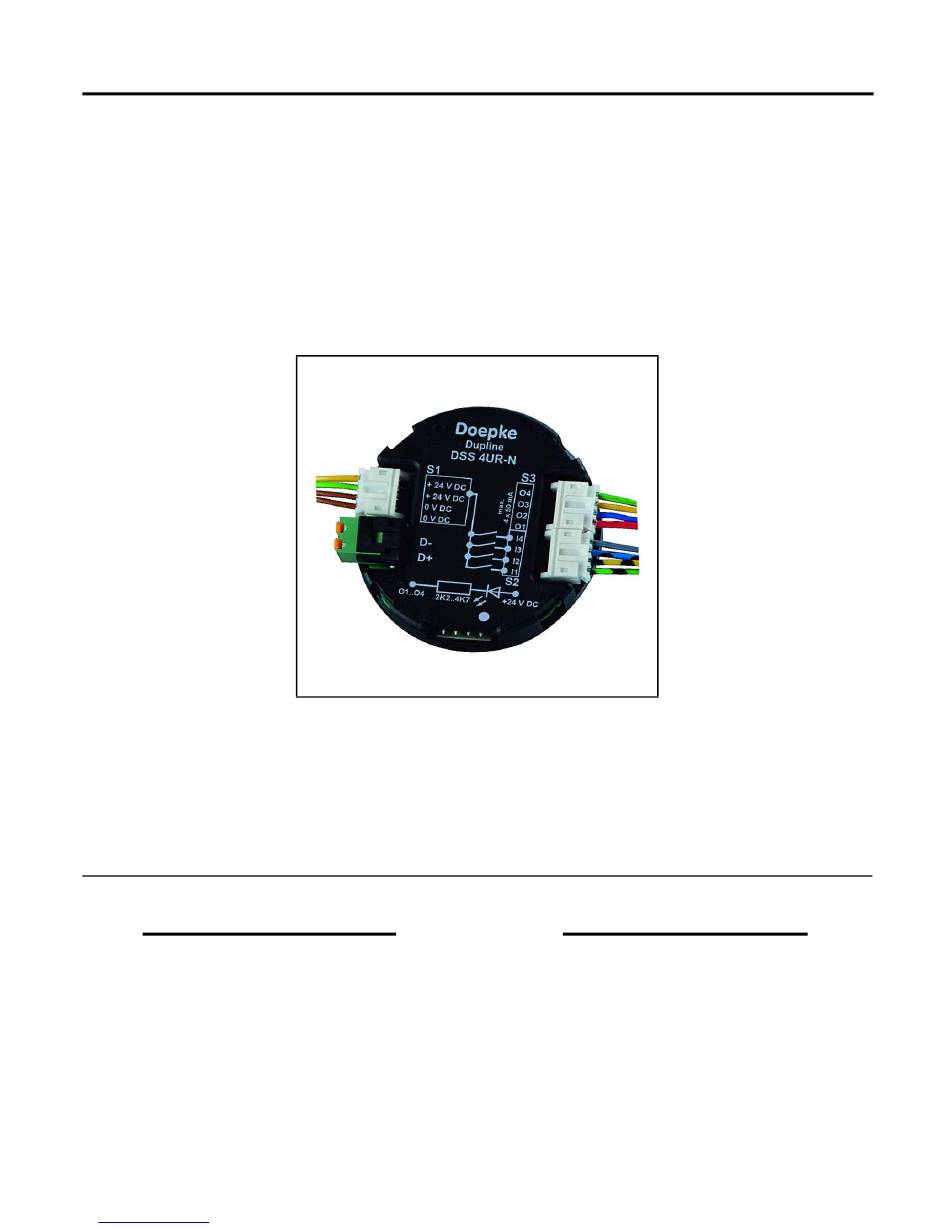

    Doepke 1Inhaltsverzeichnis Bedienungsanleitung 4-fach Ein-/Ausgangsmodule DSS 4UR-N/-P 1. Allgemeines Die DSS 4UR-N/-P sind Komponenten des Dupline Installationssystems mit vier Ein- und Aus- gängen in Halbleiterausführung. Die Module ermöglichen u. a. die Einbindung von Standard- tastern mit Rückmeldung. Durch ihre Bauform passen sie hinter Installationstaster in tiefe UP- Schalterdosen.
  • Seite 3: Inbetriebnahme

    Doepke des Flachstecker-Kodierkabel DKP 2. Auf richtige Polarität des Kodierkabels ist zu achten, eine Verpolung führt aber nicht zur Zerstörung. Die Kodierung bleibt dauerhaft erhalten, kann aber jederzeit überschrieben werden. 4. Inbetriebnahme Bei der Installation ist das Anschlussschema zu beachten. Alle anzuschließenden Leitungen müssen spannungsfrei sein.
  • Seite 4 Doepke Min. Typ. Max. Eingänge vom Bussignal entkoppelte Halbleitereingänge Bemessungsspannung aus Kabelsatz (24 V DC) Stromaufnahme je Eingang 1 mA Leitungslänge 10 m Ausgänge Halbleiterausgänge Bemessungsspannung aus Kabelsatz (0 V DC / 24 V DC) Belastbarkeit je Ausgang 50 mA...
  • Seite 5: General Information

    Doepke 1Table of Contents Operating Instructions DSS 4UR-N/-P 4-way input/output modules 7. General Information The DSS 4UR-N/-P are components of the Dupline installation system with four inputs and outputs in semi-conductor design. Amongst others, the devices allows the integration of con- ventional push-buttons with acknowledge signal to be linked to the system.
  • Seite 6: Putting Into Service

    Doepke ther a supply voltage nor the Dupline signal and is carried out with the aid of the DKP 2 flat- plug coding cable. Attention should be paid to the correct polarity of the coding cable; incorrect polarity will not, however, cause permanent damage.
  • Seite 7 Doepke Min. Typ. Max. Rated voltage from cable loom (24 V DC) Current input per input 1 mA Length of line 10 m Outputs Type semi-conductor outputs Rated operating voltage from cable loom (0 V DC / 24 V DC)
  • Seite 8: Anschlussbeispiele / Conn. Ex

    Doepke 13. Anschlussbeispiele / Conn. Ex. 3931305/2014.15/E - The right to make technical changes reserved! Downloaded from www.Manualslib.com manuals search engine...
