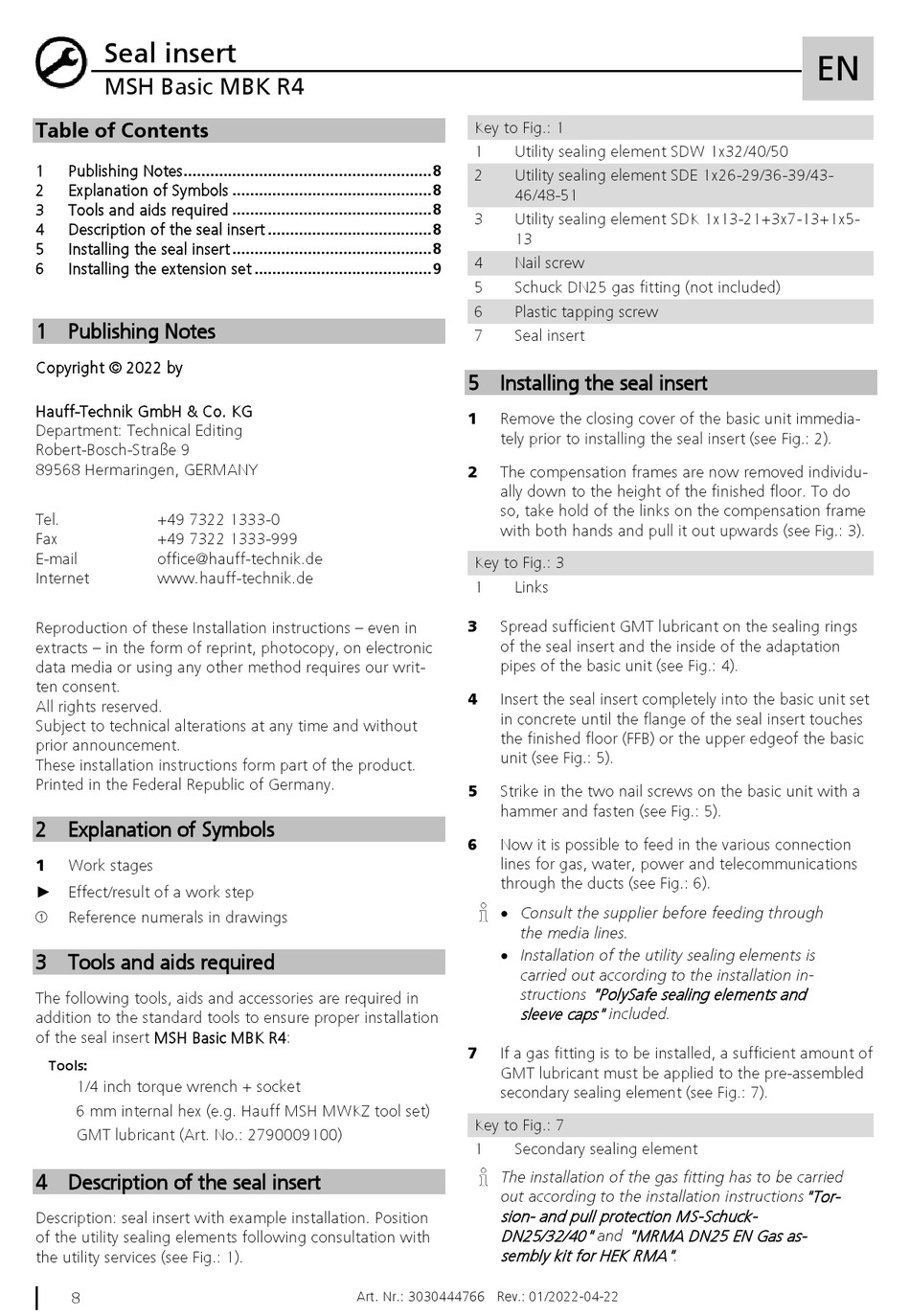

Seal insert
MSH Basic MBK R4
2 ENSeal insert
Table of Contents
1

Publishing Notes ........................................................ 8

2

Explanation of Symbols ............................................. 8

3

Tools and aids required ............................................. 8

4 Description of the seal insert ..................................... 8
5 Installing the seal insert ............................................. 8
6 Installing the extension set ........................................ 9
1 Publishing Notes
Copyright © 2022 by
Hauff-Technik GmbH & Co. KG
Department: Technical Editing
Robert-Bosch-Straße 9
89568 Hermaringen, GERMANY
Tel. +49 7322 1333-0
Fax +49 7322 1333-999
E-mail office@hauff-technik.de
Internet www.hauff-technik.de
Reproduction of these Installation instructions – even in
extracts – in the form of reprint, photocopy, on electronic
data media or using any other method requires our writ-
ten consent.
All rights reserved.
Subject to technical alterations at any time and without
prior announcement.
These installation instructions form part of the product.
Printed in the Federal Republic of Germany.
2 Explanation of Symbols
1 Work stages
► Effect/result of a work step
Reference numerals in drawings

3 Tools and aids required
The following tools, aids and accessories are required in
addition to the standard tools to ensure proper installation
of the seal insert MSH Basic MBK R4:
Tools:
1/4 inch torque wrench + socket
6 mm internal hex (e.g. Hauff MSH MWKZ tool set)
GMT lubricant (Art. No.: 2790009100)
4 Description of the seal insert
Description: seal insert with example installation. Position
of the utility sealing elements following consultation with
the utility services (see Fig.: 1).
8
Key to Fig.: 1
1 Utility sealing element SDW 1x32/40/50
2 Utility sealing element SDE 1x26-29/36-39/43-
46/48-51
3 Utility sealing element SDK 1x13-21+3x7-13+1x5-
13
4 Nail screw
5 Schuck DN25 gas fitting (not included)
6 Plastic tapping screw
7 Seal insert
5 Installing the seal insert
1 Remove the closing cover of the basic unit immedia-
tely prior to installing the seal insert (see Fig.: 2).
2 The compensation frames are now removed individu-
ally down to the height of the finished floor. To do
so, take hold of the links on the compensation frame
with both hands and pull it out upwards (see Fig.: 3).
Key to Fig.: 3
1 Links
3 Spread sufficient GMT lubricant on the sealing rings
of the seal insert and the inside of the adaptation
pipes of the basic unit (see Fig.: 4).
4 Insert the seal insert completely into the basic unit set
in concrete until the flange of the seal insert touches
the finished floor (FFB) or the upper edgeof the basic
unit (see Fig.: 5).
5 Strike in the two nail screws on the basic unit with a
hammer and fasten (see Fig.: 5).
6 Now it is possible to feed in the various connection
lines for gas, water, power and telecommunications
through the ducts (see Fig.: 6).
• Consult the supplier before feeding through
the media lines.
• Installation of the utility sealing elements is
carried out according to the installation in-
structions
sleeve caps"
7 If a gas fitting is to be installed, a sufficient amount of
GMT lubricant must be applied to the pre-assembled
secondary sealing element (see Fig.: 7).
Key to Fig.: 7
1 Secondary sealing element
The installation of the gas fitting has to be carried
out according to the installation instructions
sion- and pull protection MS-Schuck-
DN25/32/40"
sembly kit for HEK RMA"
Art. Nr.: 3030444766 Rev.: 01/2022-04-22
"PolySafe sealing elements and
included.
and "MRMA DN25 EN Gas as-
.
EN
"Tor-
