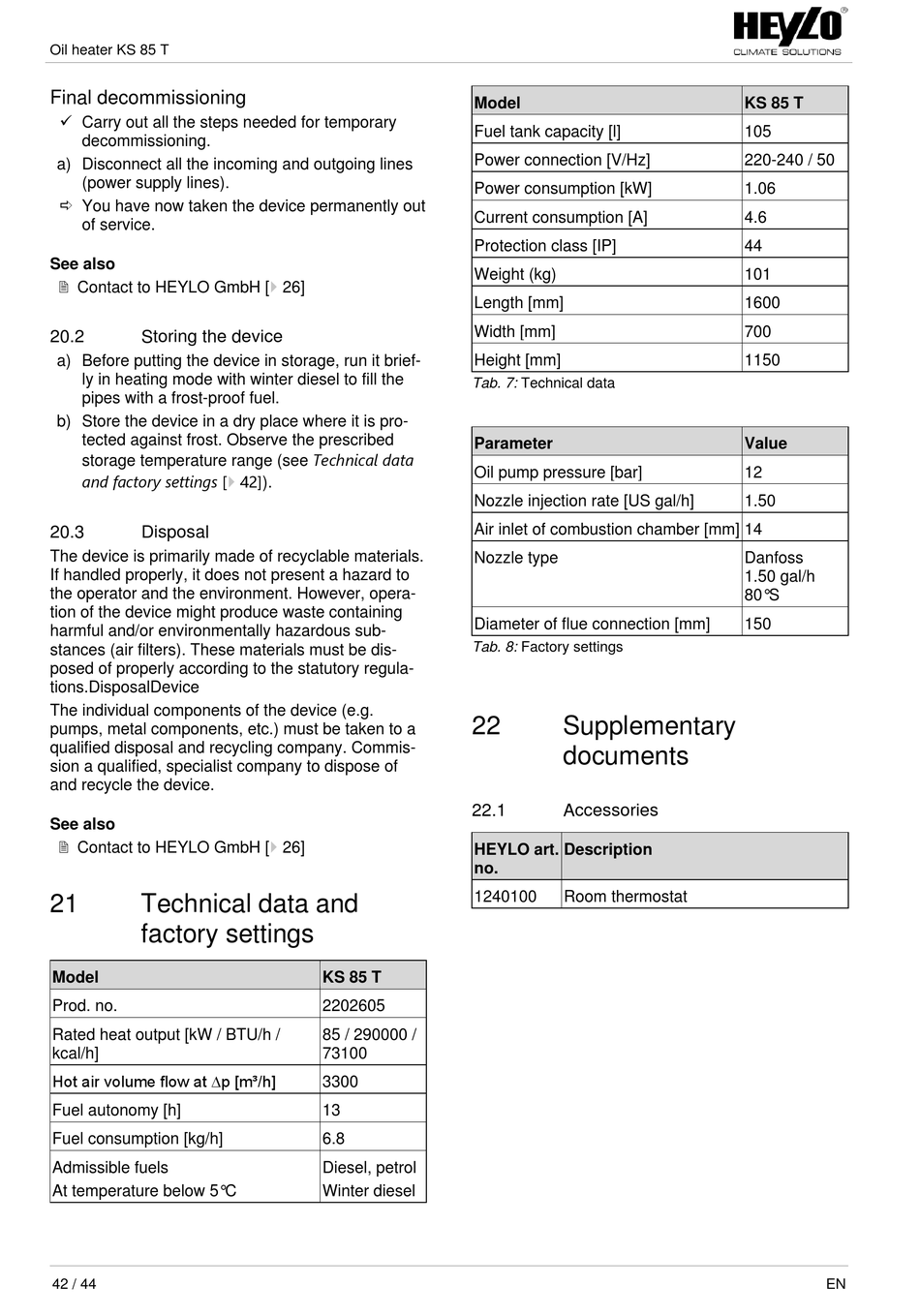

Oil heater KS 85 T
Final decommissioning
✓ Carry out all the steps needed for temporary
decommissioning.
a) Disconnect all the incoming and outgoing lines
(power supply lines).
You have now taken the device permanently out
of service.
See also
Contact to HEYLO GmbH
20.2
Storing the device
a) Before putting the device in storage, run it brief-
ly in heating mode with winter diesel to fill the
pipes with a frost-proof fuel.
b) Store the device in a dry place where it is pro-
tected against frost. Observe the prescribed
storage temperature range (see Technical data
and factory settings
[
20.3
Disposal
The device is primarily made of recyclable materials.
If handled properly, it does not present a hazard to
the operator and the environment. However, opera-
tion of the device might produce waste containing
harmful and/or environmentally hazardous sub-
stances (air filters). These materials must be dis-
posed of properly according to the statutory regula-
tions.DisposalDevice
The individual components of the device (e.g.
pumps, metal components, etc.) must be taken to a
qualified disposal and recycling company. Commis-
sion a qualified, specialist company to dispose of
and recycle the device.
See also
Contact to HEYLO GmbH
21
Technical data and
factory settings
Model
Prod. no.
Rated heat output [kW / BTU/h /
kcal/h]
Hot air volume flow at ∆p [m³/h]
Fuel autonomy [h]
Fuel consumption [kg/h]
Admissible fuels
At temperature below 5°C
42 / 44
[
26]
42]).
[
26]
KS 85 T
2202605
85 / 290000 /
73100
3300
13
6.8
Diesel, petrol
Winter diesel
Model
Fuel tank capacity [l]
Power connection [V/Hz]
Power consumption [kW]
Current consumption [A]
Protection class [IP]
Weight (kg)
Length [mm]
Width [mm]
Height [mm]
Tab. 7: Technical data
Parameter
Oil pump pressure [bar]
Nozzle injection rate [US gal/h]
Air inlet of combustion chamber [mm] 14
Nozzle type
Diameter of flue connection [mm]
Tab. 8: Factory settings
22
Supplementary
documents
22.1
Accessories
HEYLO art.
Description
no.
1240100
Room thermostat
KS 85 T
105
220-240 / 50
1.06
4.6
44
101
1600
700
1150
Value
12
1.50
Danfoss
1.50 gal/h
80°S
150
EN
