7.4

Changing the parameters

The parameters on the screens are always changed in the same way.
Below are the instructions valid on all screens:

Select the cycle.

The screen that appears allows you to change the standard parameters using the
special scroll bar.

To change the phases of the cycle, press the Advanced key.

The screen that appears allows you to activate the phase by checking the box.

Press the Pencil key to change the specific parameters of the activated phase.

Press the Confirm key to activate the parameters entered.

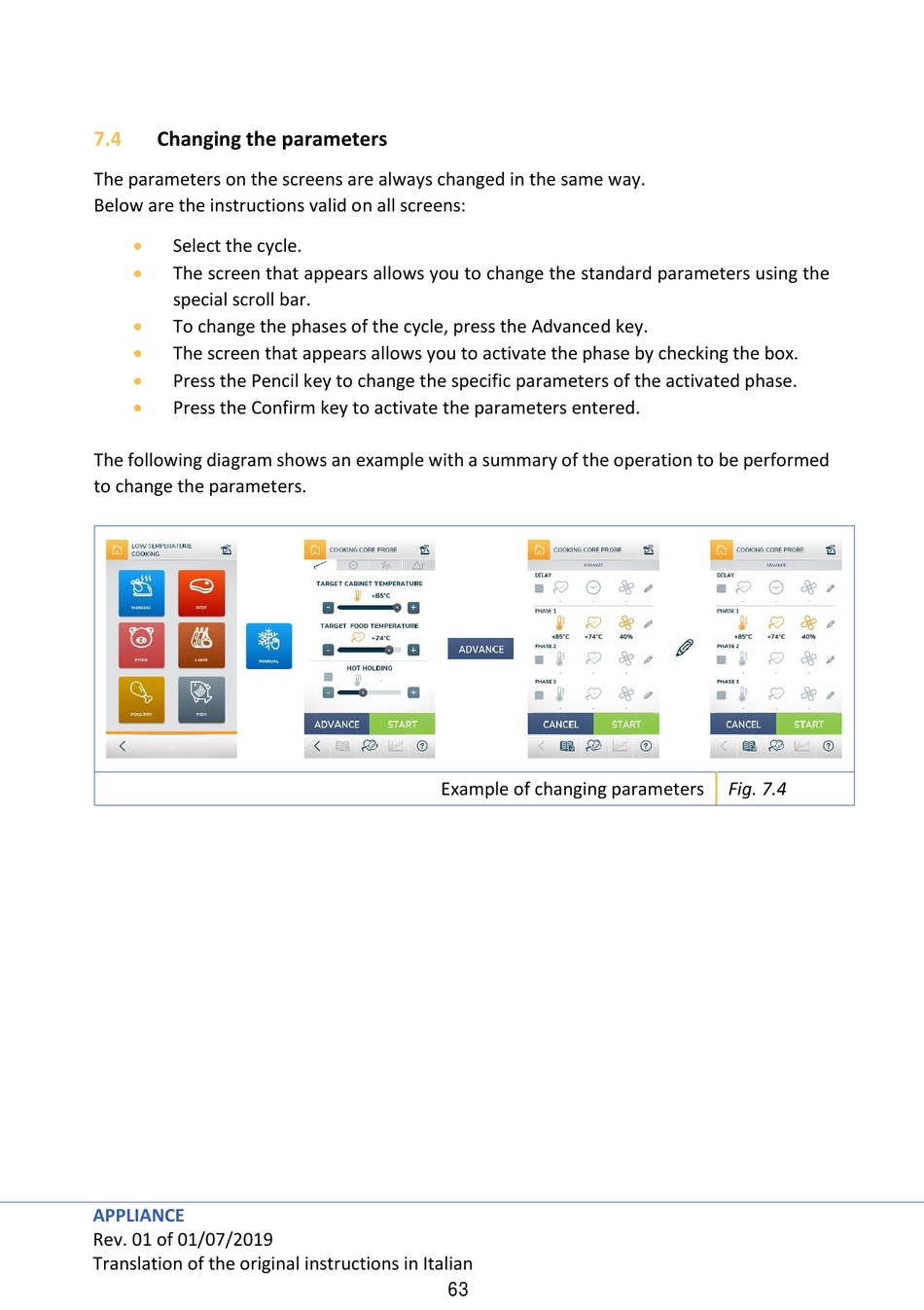

The following diagram shows an example with a summary of the operation to be performed
to change the parameters.
APPLIANCE
Rev. 01 of 01/07/2019
Translation of the original instructions in Italian
Example of changing parameters
63
SOLL.
Fig. 7.4
