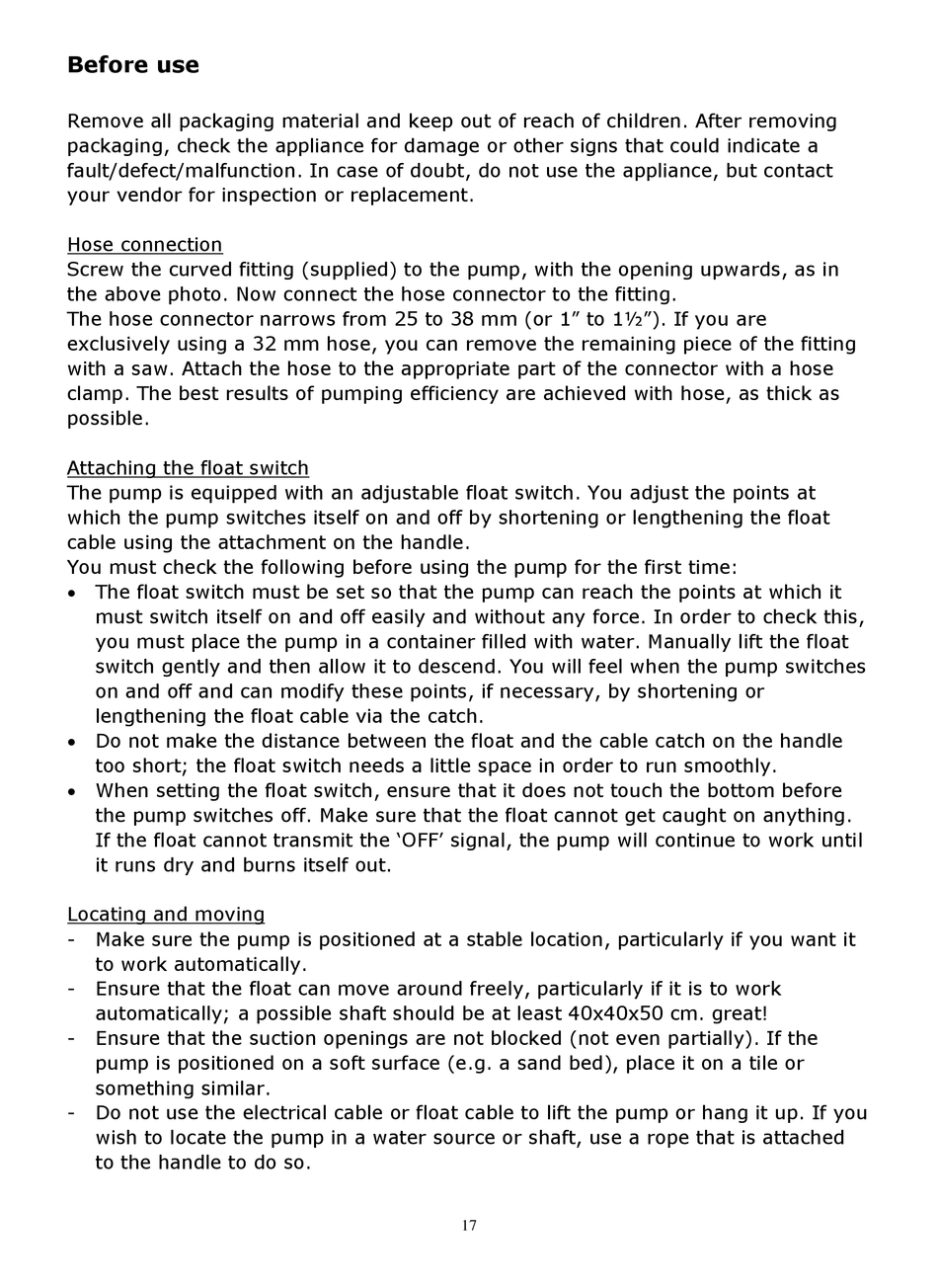

Before Use - EUROM Flow 250 Bedienungsanleitung

Before use

Remove all packaging material and keep out of reach of children. After removing
packaging, check the appliance for damage or other signs that could indicate a
fault/defect/malfunction. In case of doubt, do not use the appliance, but contact
your vendor for inspection or replacement.
Hose connection
Screw the curved fitting (supplied) to the pump, with the opening upwards, as in
the above photo. Now connect the hose connector to the fitting.
The hose connector narrows from 25 to 38 mm (or 1" to 1½"). If you are
exclusively using a 32 mm hose, you can remove the remaining piece of the fitting
with a saw. Attach the hose to the appropriate part of the connector with a hose
clamp. The best results of pumping efficiency are achieved with hose, as thick as
possible.
Attaching the float switch
The pump is equipped with an adjustable float switch. You adjust the points at
which the pump switches itself on and off by shortening or lengthening the float
cable using the attachment on the handle.
You must check the following before using the pump for the first time:
 The float switch must be set so that the pump can reach the points at which it
must switch itself on and off easily and without any force. In order to check this,
you must place the pump in a container filled with water. Manually lift the float
switch gently and then allow it to descend. You will feel when the pump switches
on and off and can modify these points, if necessary, by shortening or
lengthening the float cable via the catch.
 Do not make the distance between the float and the cable catch on the handle
too short; the float switch needs a little space in order to run smoothly.
 When setting the float switch, ensure that it does not touch the bottom before
the pump switches off. Make sure that the float cannot get caught on anything.
If the float cannot transmit the 'OFF' signal, the pump will continue to work until
it runs dry and burns itself out.
Locating and moving
- Make sure the pump is positioned at a stable location, particularly if you want it
to work automatically.
- Ensure that the float can move around freely, particularly if it is to work
automatically; a possible shaft should be at least 40x40x50 cm. great!
- Ensure that the suction openings are not blocked (not even partially). If the
pump is positioned on a soft surface (e.g. a sand bed), place it on a tile or
something similar.
- Do not use the electrical cable or float cable to lift the pump or hang it up. If you
wish to locate the pump in a water source or shaft, use a rope that is attached
to the handle to do so.
17
