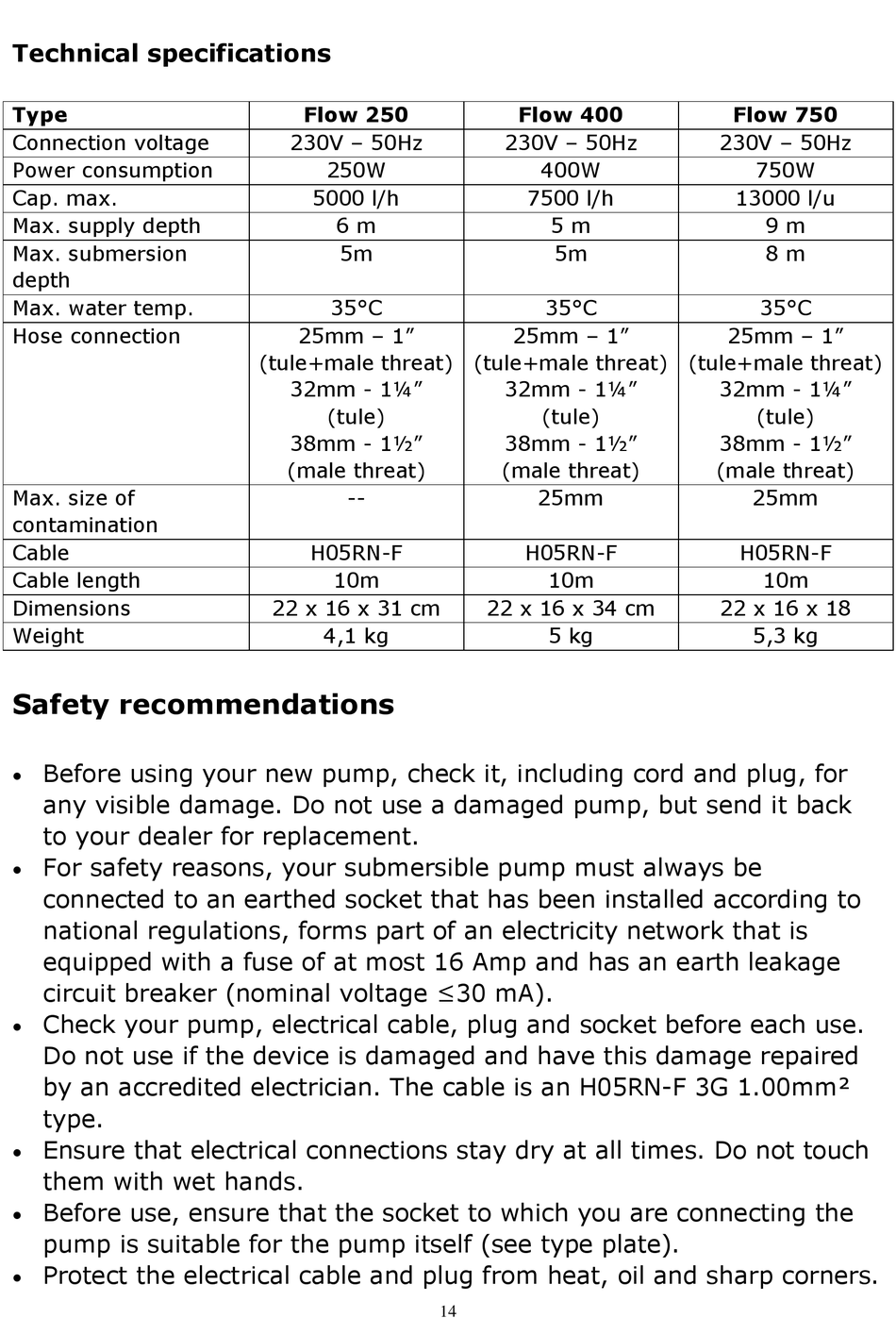

Technical specifications

Type
Connection voltage
Power consumption
Cap. max.
Max. supply depth
Max. submersion
depth
Max. water temp.
Hose connection
Max. size of
contamination
Cable
Cable length
Dimensions
Weight

Safety recommendations

Before using your new pump, check it, including cord and plug, for

any visible damage. Do not use a damaged pump, but send it back
to your dealer for replacement.
For safety reasons, your submersible pump must always be

connected to an earthed socket that has been installed according to
national regulations, forms part of an electricity network that is
equipped with a fuse of at most 16 Amp and has an earth leakage
circuit breaker (nominal voltage ≤30 mA).
Check your pump, electrical cable, plug and socket before each use.

Do not use if the device is damaged and have this damage repaired
by an accredited electrician. The cable is an H05RN-F 3G 1.00mm²
type.
Ensure that electrical connections stay dry at all times. Do not touch

them with wet hands.
Before use, ensure that the socket to which you are connecting the

pump is suitable for the pump itself (see type plate).
Protect the electrical cable and plug from heat, oil and sharp corners.

Flow 250
230V – 50Hz
250W
5000 l/h
6 m
5m
35°C
25mm – 1"
(tule+male threat)
32mm - 1¼"
(tule)
38mm - 1½"
(male threat)
--
H05RN-F
10m
22 x 16 x 31 cm
4,1 kg
Flow 400
230V – 50Hz
400W
7500 l/h
5 m
5m
35°C
25mm – 1"
(tule+male threat)
32mm - 1¼"
(tule)
38mm - 1½"
(male threat)
25mm
H05RN-F
10m
22 x 16 x 34 cm
5 kg
14
Flow 750
230V – 50Hz
750W
13000 l/u
9 m
8 m
35°C
25mm – 1"
(tule+male threat)
32mm - 1¼"
(tule)
38mm - 1½"
(male threat)
25mm
H05RN-F
10m
22 x 16 x 18
5,3 kg
