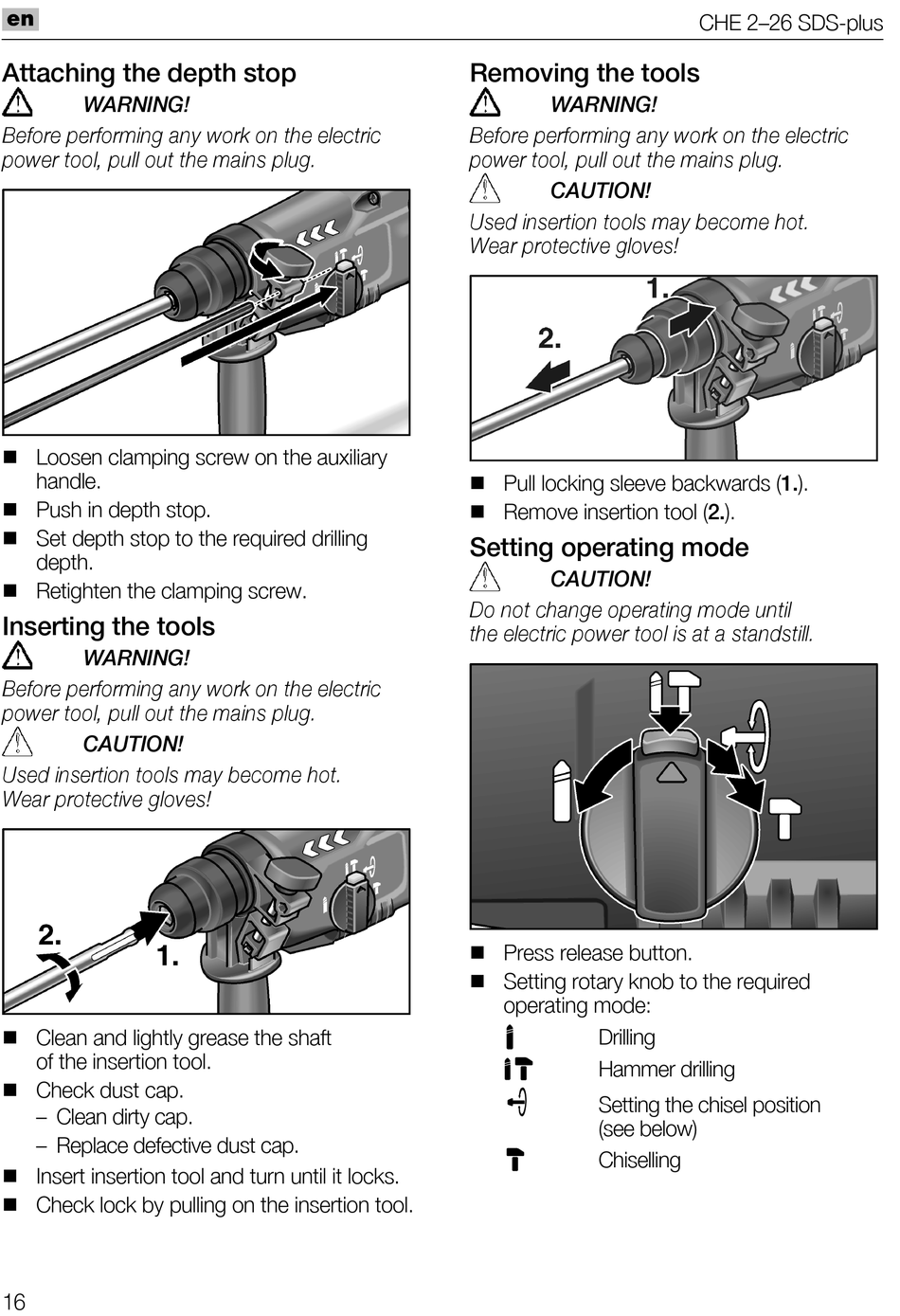

Inserting The Tools; Setting Operating Mode - Flex CHE 2-26 SDS-plus Originalbetriebsanleitung

Attaching the depth stop
t^okfkd>
_ÉÑçêÉ=éÉêÑçêãáåÖ=~åó=ïçêâ=çå=íÜÉ=ÉäÉÅíêáÅ=
éçïÉê=íççäI=éìää=çìí=íÜÉ=ã~áåë=éäìÖK
 Loosen clamping screw on the auxiliary
handle.
 Push in depth stop.
 Set depth stop to the required drilling
depth.
 Retighten the clamping screw.

Inserting the tools

t^okfkd>
_ÉÑçêÉ=éÉêÑçêãáåÖ=~åó=ïçêâ=çå=íÜÉ=ÉäÉÅíêáÅ=
éçïÉê=íççäI=éìää=çìí=íÜÉ=ã~áåë=éäìÖK
`^rqflk>
rëÉÇ=áåëÉêíáçå=íççäë=ã~ó=ÄÉÅçãÉ=ÜçíK=
tÉ~ê éêçíÉÅíáîÉ=ÖäçîÉë>
 Clean and lightly grease the shaft
of the insertion tool.
 Check dust cap.
– Clean dirty cap.
– Replace defective dust cap.
 Insert insertion tool and turn until it locks.
 Check lock by pulling on the insertion tool.
16
Removing the tools
t^okfkd>
_ÉÑçêÉ=éÉêÑçêãáåÖ=~åó=ïçêâ=çå=íÜÉ=ÉäÉÅíêáÅ=
éçïÉê=íççäI=éìää=çìí=íÜÉ=ã~áåë=éäìÖK
`^rqflk>
rëÉÇ=áåëÉêíáçå=íççäë=ã~ó=ÄÉÅçãÉ=ÜçíK=
tÉ~ê éêçíÉÅíáîÉ=ÖäçîÉë>
 Pull locking sleeve backwards (1.).
 Remove insertion tool (2.).

Setting operating mode

`^rqflk>=
aç=åçí=ÅÜ~åÖÉ=çéÉê~íáåÖ=ãçÇÉ=ìåíáä=
íÜÉ ÉäÉÅíêáÅ=éçïÉê=íççä=áë=~í=~=ëí~åÇëíáääK
 Press release button.
 Setting rotary knob to the required
operating mode:
Drilling
Hammer drilling
Setting the chisel position
(see below)
Chiselling
CHE 2–26 SDS-plus
