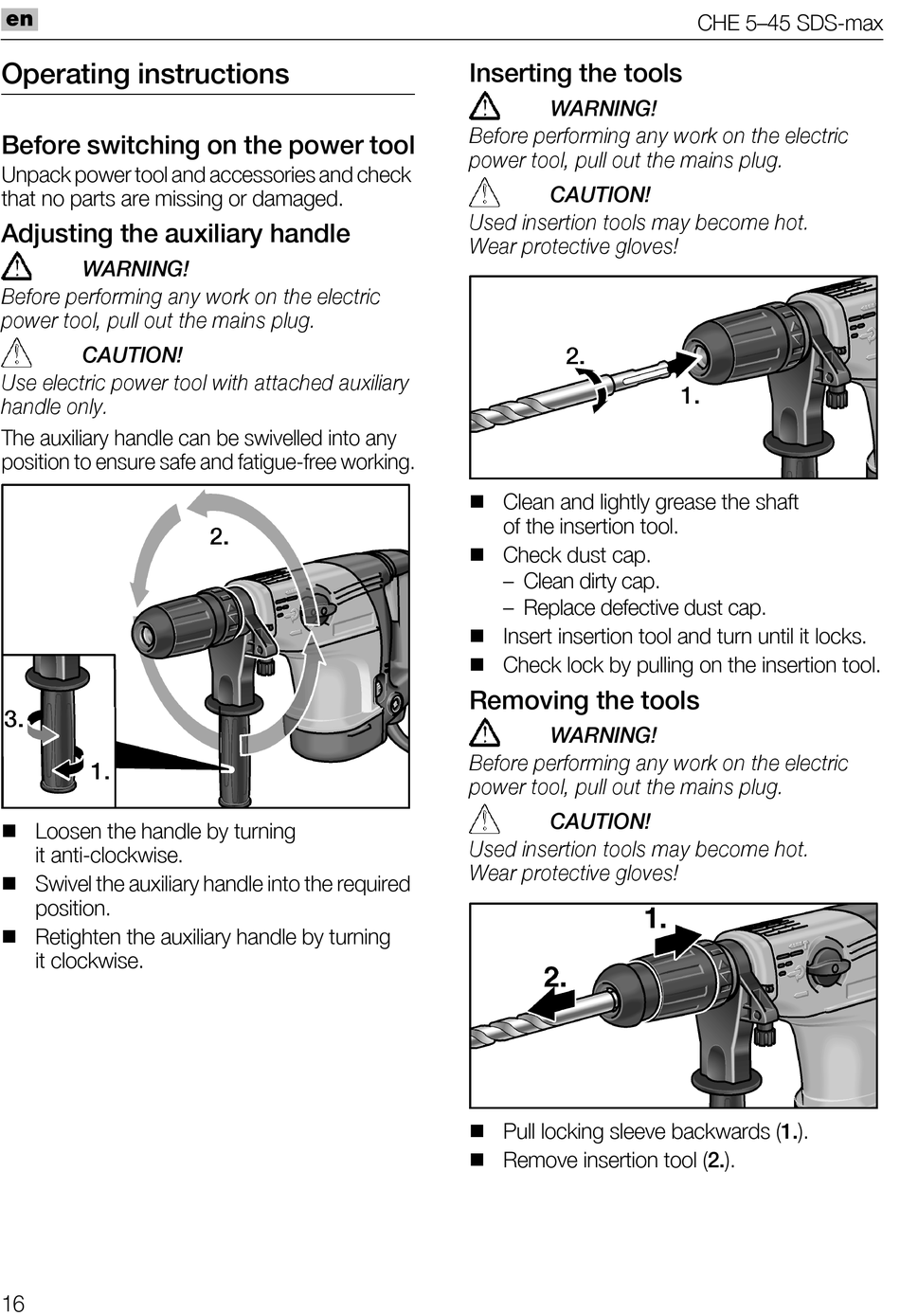

Operating Instructions; Adjusting The Auxiliary Handle; Inserting The Tools - Flex CHE 5-45 SDS Max Originalbetriebsanleitung

Operating instructions

Before switching on the power tool
Unpack power tool and accessories and check
that no parts are missing or damaged.

Adjusting the auxiliary handle

t^okfkd>
_ÉÑçêÉ=éÉêÑçêãáåÖ=~åó=ïçêâ=çå=íÜÉ=ÉäÉÅíêáÅ=
éçïÉê=íççäI=éìää=çìí=íÜÉ=ã~áåë=éäìÖK
`^rqflk>
rëÉ=ÉäÉÅíêáÅ=éçïÉê=íççä=ïáíÜ=~íí~ÅÜÉÇ=~ìñáäá~êó=
Ü~åÇäÉ=çåäóK
The auxiliary handle can be swivelled into any
position to ensure safe and fatigue-free working.
 Loosen the handle by turning
it anti-clockwise.
 Swivel the auxiliary handle into the required
position.
 Retighten the auxiliary handle by turning
it clockwise.
16

Inserting the tools

t^okfkd>
_ÉÑçêÉ=éÉêÑçêãáåÖ=~åó=ïçêâ=çå=íÜÉ=ÉäÉÅíêáÅ=
éçïÉê=íççäI=éìää=çìí=íÜÉ=ã~áåë=éäìÖK
`^rqflk>
rëÉÇ=áåëÉêíáçå=íççäë=ã~ó=ÄÉÅçãÉ=ÜçíK=
tÉ~ê éêçíÉÅíáîÉ=ÖäçîÉë>
 Clean and lightly grease the shaft
of the insertion tool.
 Check dust cap.
– Clean dirty cap.
– Replace defective dust cap.
 Insert insertion tool and turn until it locks.
 Check lock by pulling on the insertion tool.
Removing the tools
t^okfkd>
_ÉÑçêÉ=éÉêÑçêãáåÖ=~åó=ïçêâ=çå=íÜÉ=ÉäÉÅíêáÅ=
éçïÉê=íççäI=éìää=çìí=íÜÉ=ã~áåë=éäìÖK
`^rqflk>
rëÉÇ=áåëÉêíáçå=íççäë=ã~ó=ÄÉÅçãÉ=ÜçíK=
tÉ~ê éêçíÉÅíáîÉ=ÖäçîÉë>
 Pull locking sleeve backwards (1.).
 Remove insertion tool (2.).
CHE 5–45 SDS-max
