Transport, Storage, Maintenance and Disposal

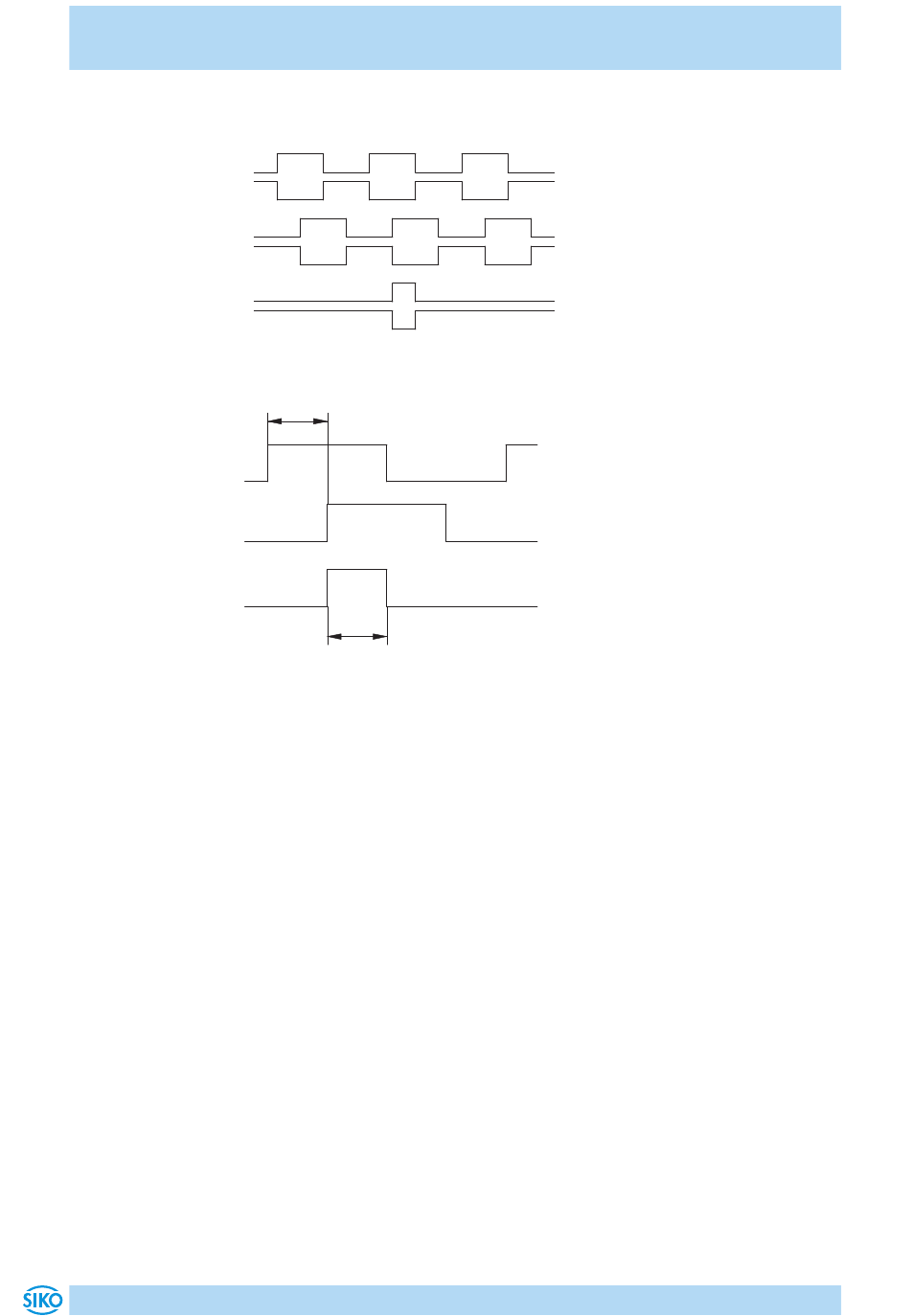

6.1 Output signals/ Wave form

A
/A
B
/B
0
/0
Fig. 5: Wave form
90°±20°
A
B
0
90°
Fig. 6: Timing, incremental encoder signals
7 Transport, Storage, Maintenance and Disposal
Transport and storage
Handle, transport and store incremental encoder with care. Pay attention
to the following points:
• Transport and / or store incremental encoder in the unopened origi-
nal packaging.
• Protect incremental encoder from harmful physical influences includ-
ing dust, heat and humidity.
• Do not damage connections through mechanical or thermal impact.
• Prior to installation inspect the incremental encoder for transport
damages. Do not install damaged incremental encoder.
Maintenance
With correct installation according to chapter
requires no maintenance. The incremental encoder has received lifetime
lubrication and need not be lubricated under normal operating condi-
tions.
IH5815 · Date 20.10.2020 · Art. No. 89301 · Mod. status 239/20
English
4
the incremental encoder
