Pump Driving

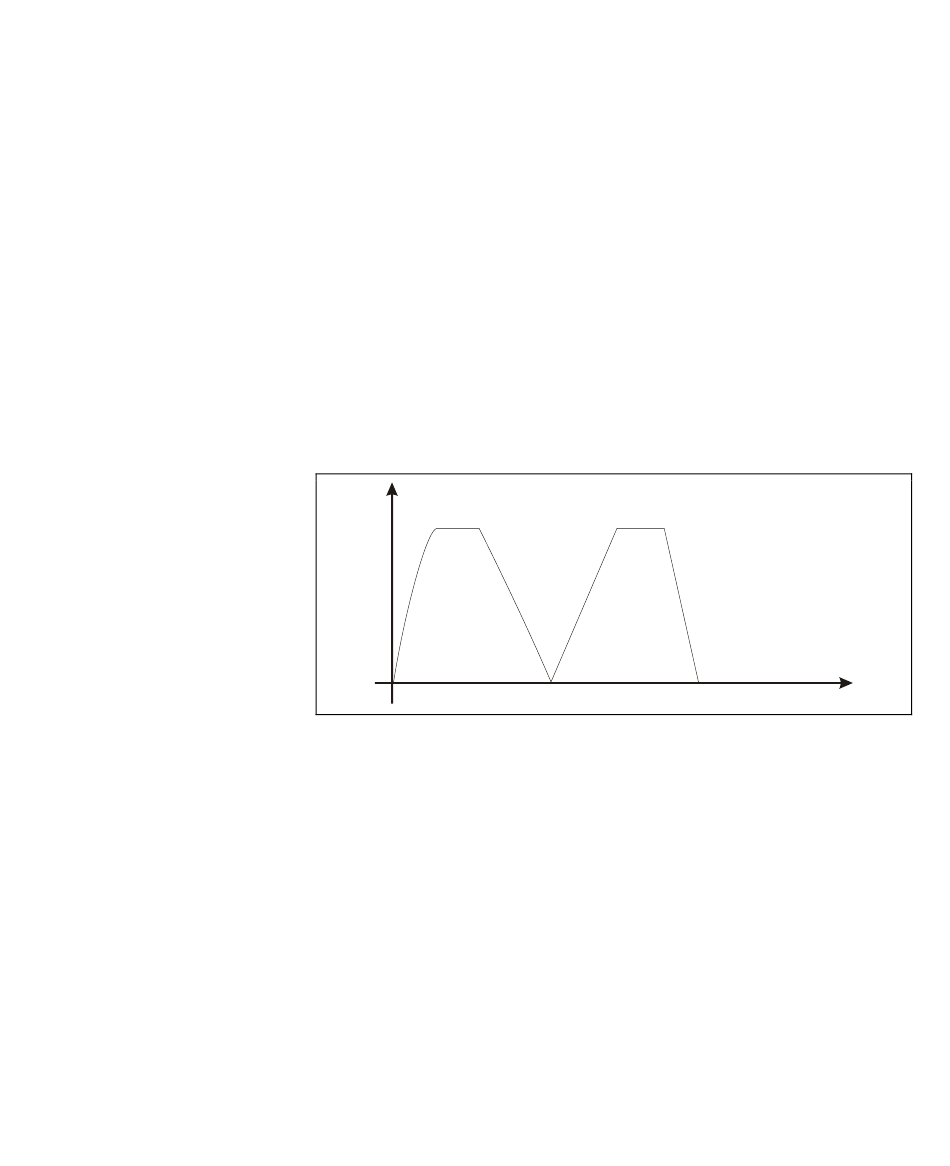

Typical pump driving chart start and normal operation with low
or no gas load.

Stop Speed Reading and Active Stop

These functions can be activated by the Front Panel or serial line
(Win 107 = Active Stop, Win 167 = Stop Speed Reading).
Active Stop brakes the pump using the motor. The Stop Speed
reading reads the actual pump speed after a stop command.
Figure 24
TwisTorr 74FS AG Rack Controller User Manual / 87-901-055-01
Programmable Analog Output Diagrams
SSR
Diagram 5
