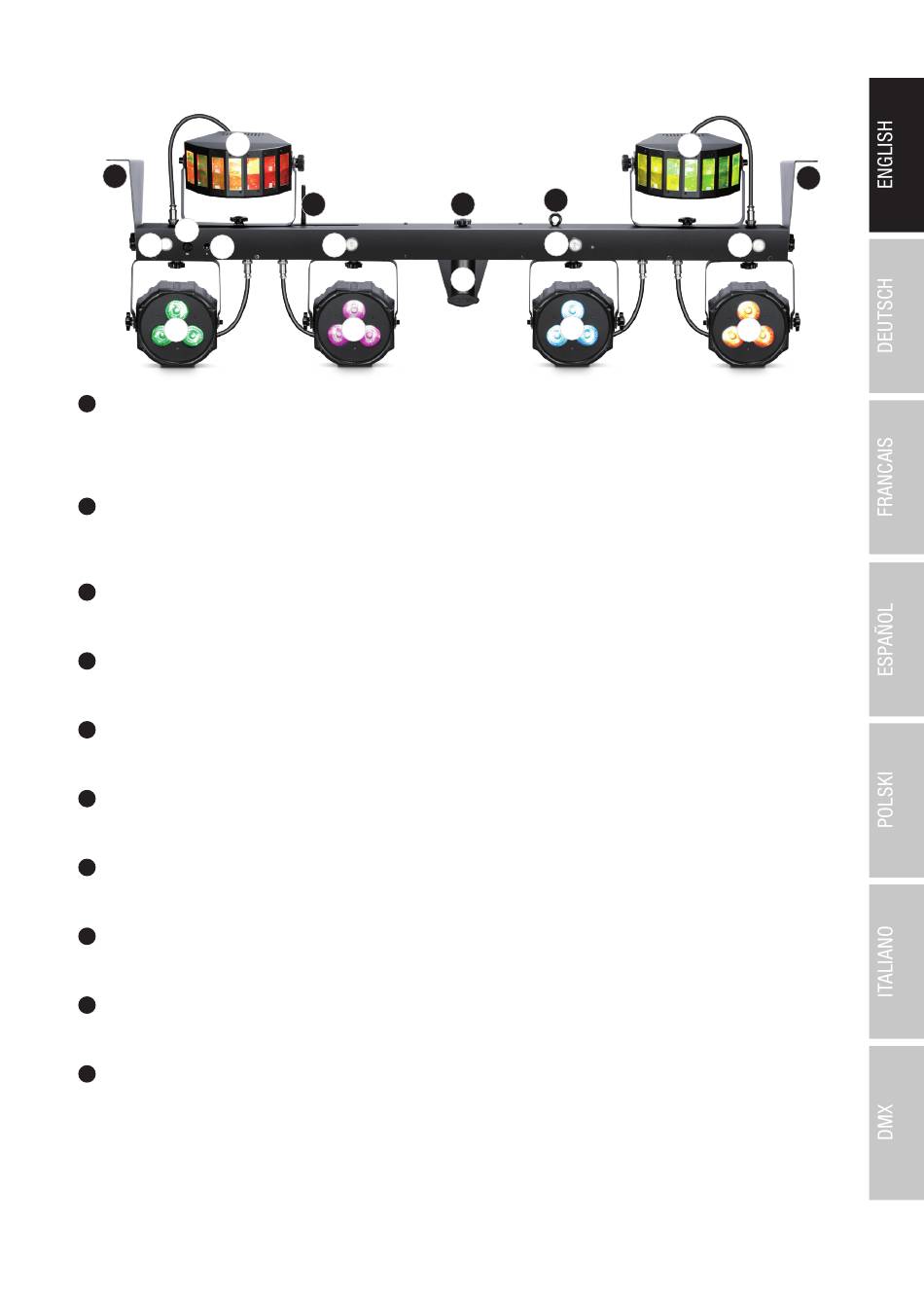

MOUNTING BRACKET
Adjustable bracket for ceiling or truss mounting. The derby effects can be removed if necessary. To do this, disconnect the device from the
mains (remove mains plug) and disconnect the mechanical and electrical connection of the two derby effects. Use one of the two specially
created DMX modes (5-channel 2 or 28-channel) for controlling.
2
ANTENNA
Reception antenna for control via wireless footswitch (433 MHz, footswitch supplied). Please ensure antenna is in a vertical position when
using the wireless footswitch.
3
SECURING LUG
For ceiling or traverse installation, secure the device to the securing lug with a suitable safety rope.
4 STROBE LEDS
4 white LEDs for the strobe effect.
5
MICROPHONE
Microphone for music-control mode.
6
IR SENSOR
Infrared sensor for control via IR remote control (included).
7
DERBY EFFECT
Two vertical and horizontal adjustable derby effects.
8 LED SPOTLIGHTS
Four vertically and horizontally adjustable LED spotlights.
9
STAND FLANGE
Lockable 35mm flange for stand mounting.
10
MOUNTING SCREW
Knurled screw for attaching additional light (max. 5kg, no moving heads).
