Crescendo duo – Manual
Crescendo duo
Two-Channel Microphone Preamplifier with
120V Technology
The Crescendo duo features a fully balanced signal flow. The input stage uses
10 pairs of matched PNP Transistors (Differential Input Transistors) for extremely
low noise and a very high common mode rejection.
Both input stages have six 5th generation 120V SPL SUPRA Operation Amplifiers
each.
The transformerless design of the input/output stages guarantees highly linear
amplifying.
The output stages operate as current amplifiers and therefore provide Class-A
operation with more than 6mA quiescent current.
Start up
1
Read the security advices on page 6.
Make sure that the selected mains voltage of the
2
the mains voltage of your region.
Make sure that the mains switch on the rear of the
3
(Off = O / ON = I).
Connect the supplied power cord to the
4
mains socket outlet.
If the supplied power cord does not match your mains socket outlet, please contact your dealer.
Please connect the outputs of the
5
interface or mixing console.
Connect your microphones to the inputs 1 and 2 of the
6
high-quality microphone cables.
Microphone cables not included in the scope of delivery.
7
Switch on mains on the rear of the
The VU meter light up.
2
Crescendo duo is according to
Crescendo duo is set to Off
Crescendo duo and an appropriate
Crescendo duo to the inputs of your audio
Crescendo duo with
Crescendo duo (On = I).
4

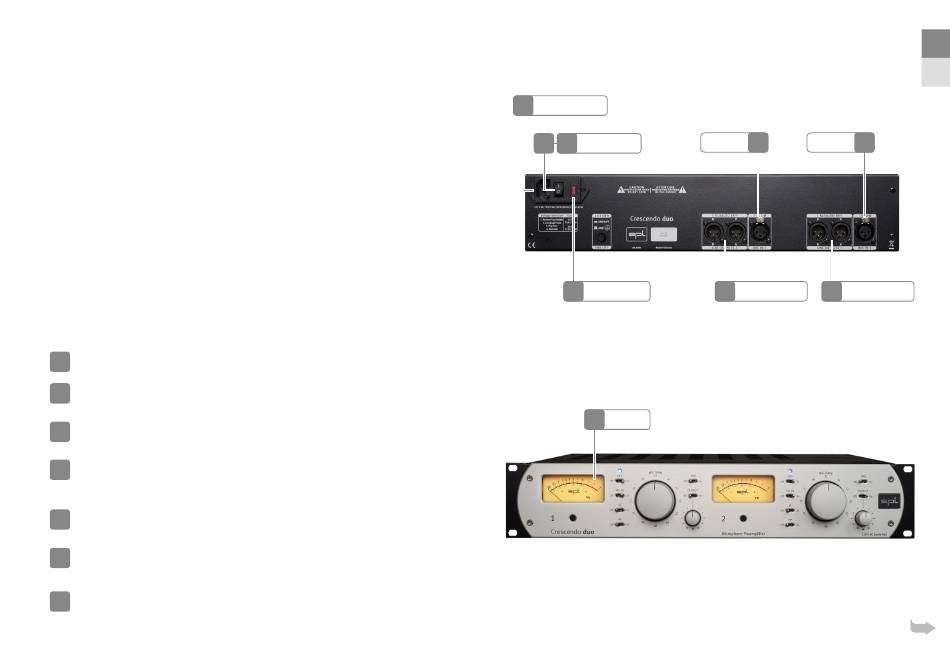

Mains Connector
3 7
Mains Switch
2
Mains Voltage
7
VU Meter
Crescendo duo – Manual
6 6
Input 2 Input 1
5 5
Outputs 2 (XLR) Outputs 1 (XLR)
