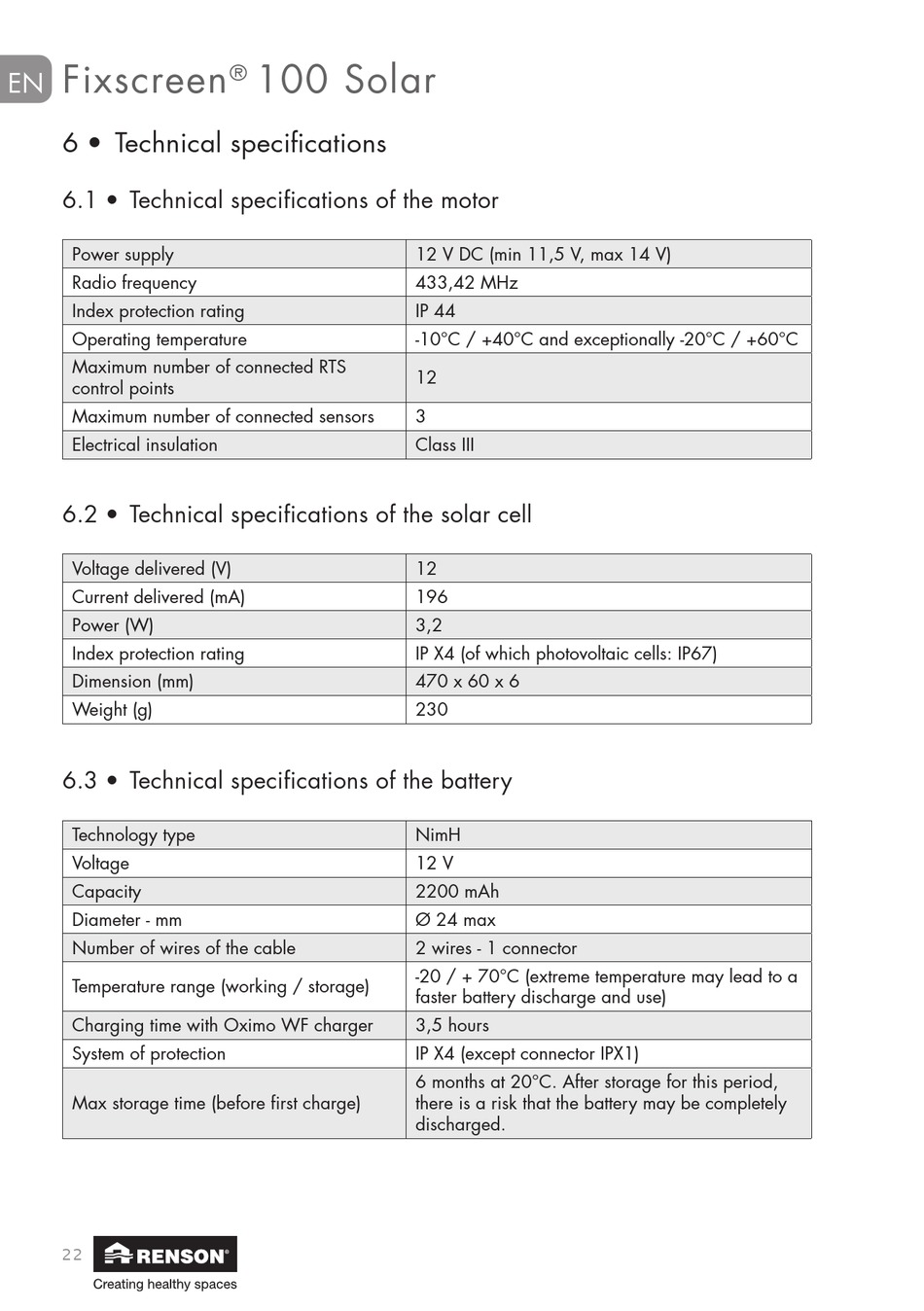

6 • Technical specifications
6.1 • Technical specifications of the motor
Power supply
Radio frequency
Index protection rating
Operating temperature
Maximum number of connected RTS
control points
Maximum number of connected sensors
Electrical insulation
6.2 • Technical specifications of the solar cell
Voltage delivered (V)
Current delivered (mA)
Power (W)
Index protection rating
Dimension (mm)
Weight (g)
6.3 • Technical specifications of the battery
Technology type
Voltage
Capacity
Diameter - mm
Number of wires of the cable
Temperature range (working / storage)
Charging time with Oximo WF charger
System of protection
Max storage time (before first charge)
22
100 Solar
®
12 V DC (min 11,5 V, max 14 V)
433,42 MHz
IP 44
-10°C / +40°C and exceptionally -20°C / +60°C
12
3
Class III
12
196
3,2
IP X4 (of which photovoltaic cells: IP67)
470 x 60 x 6
230
NimH
12 V
2200 mAh
Ø 24 max
2 wires - 1 connector
-20 / + 70°C (extreme temperature may lead to a
faster battery discharge and use)
3,5 hours
IP X4 (except connector IPX1)
6 months at 20°C. After storage for this period,
there is a risk that the battery may be completely
discharged.
