1 - COOKING HOB

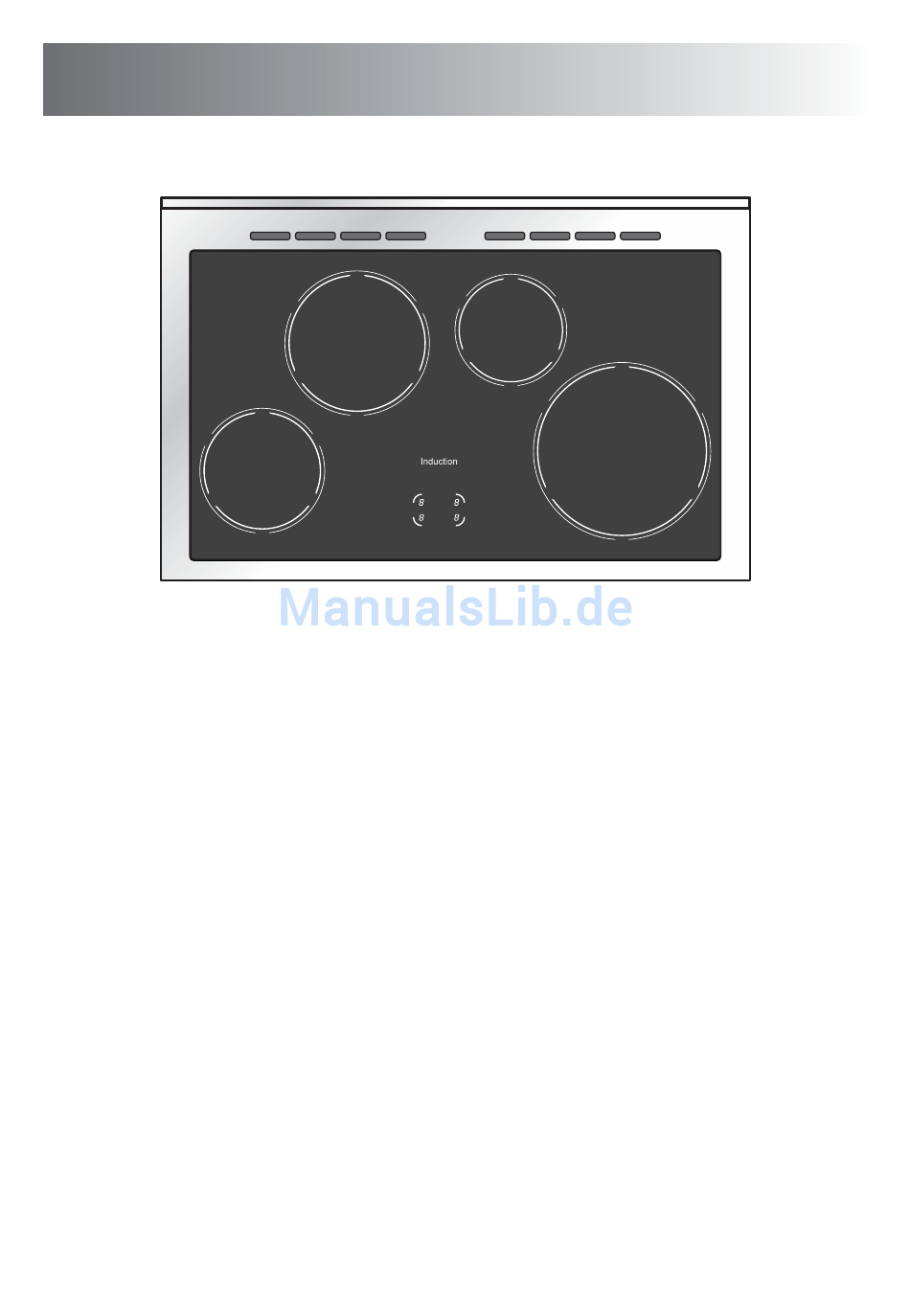

INDUCTION COOKING HOB
1. Induction cooking zone
2. Induction cooking zone
3. Induction cooking zone
4. Induction cooking zone
5. Cooking zone display
Attention: Detach the appliance from the mains if the ceramic glass is cracked and
contact the After-Sales Service.
Metallic objects such as knives, forks, spoons and lids should not be placed
on the hob surface since they can get hot.
2
1
Ø 180 mm
Ø 180 mm
Ø 145 mm
Ø 210 mm
3
5
Normal Power: 1850 W
Booster Power: 2500 W
Normal Power: 1850 W
Booster Power: 2500 W
Normal Power: 1400 W
Booster Power: 1800 W
Normal Power: 2300 W
Booster Power: 3300 W
Note: The Nominal and Booster Power may
change depending on the size and material of
the pan set on the cooking zone.
4
Fig. 1.1
