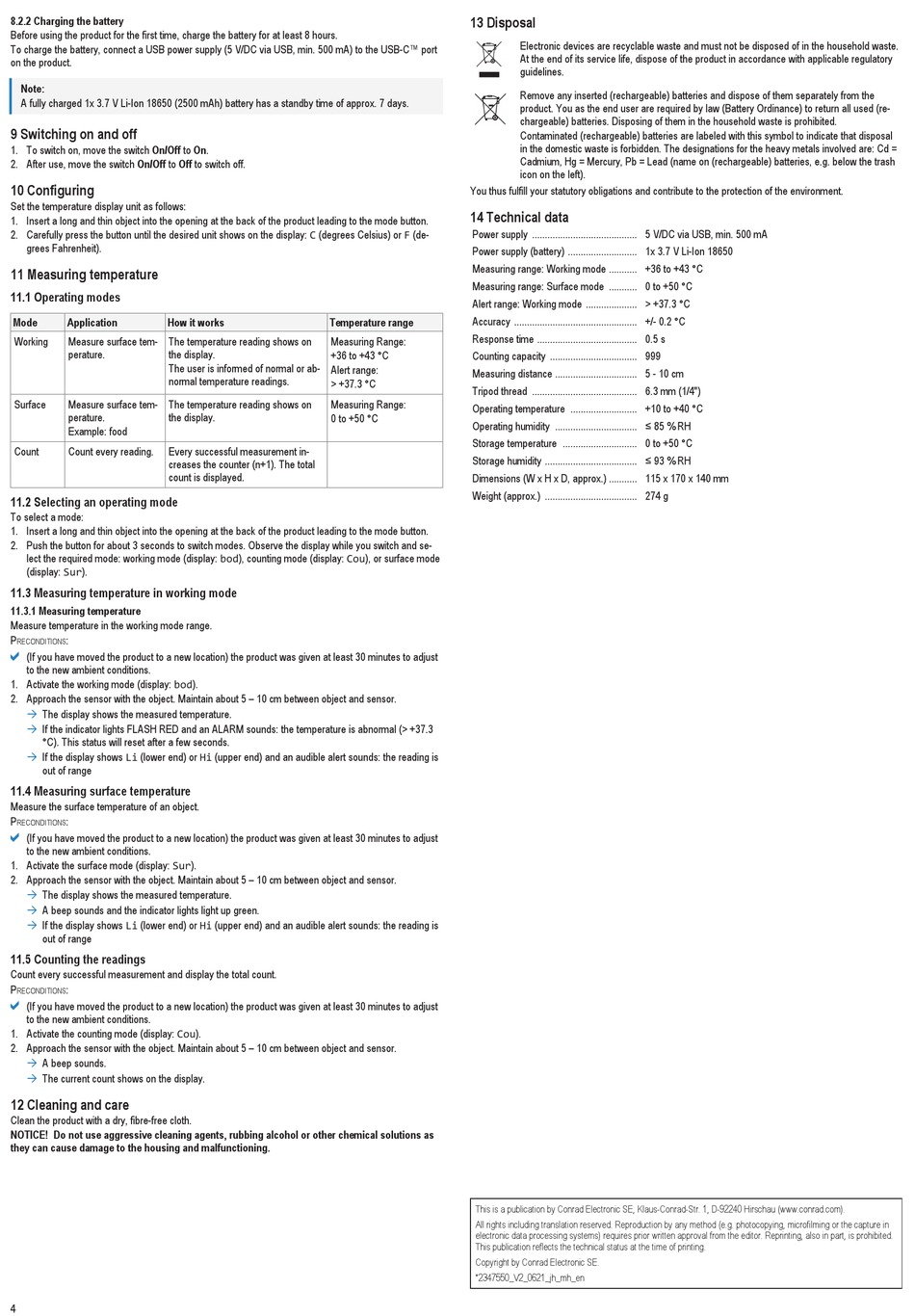

8.2.2 Charging the battery
Before using the product for the first time, charge the battery for at least 8 hours.
To charge the battery, connect a USB power supply (5 V/DC via USB, min. 500 mA) to the USB-C™ port
on the product.
Note:
A fully charged 1x 3.7 V Li-Ion 18650 (2500 mAh) battery has a standby time of approx. 7 days.
9 Switching on and off
1. To switch on, move the switch On/Off to On.
2. After use, move the switch On/Off to Off to switch off.
10 Configuring
Set the temperature display unit as follows:
1. Insert a long and thin object into the opening at the back of the product leading to the mode button.
2. Carefully press the button until the desired unit shows on the display: C (degrees Celsius) or F (de-
grees Fahrenheit).

11 Measuring temperature

11.1 Operating modes
Mode Application How it works
Working Measure surface tem- The temperature reading shows on
perature. the display.
The user is informed of normal or ab-
normal temperature readings.
Surface Measure surface tem- The temperature reading shows on
perature. the display.
Example: food
Count Count every reading. Every successful measurement in-
creases the counter (n+1). The total
count is displayed.
11.2 Selecting an operating mode
To select a mode:
1. Insert a long and thin object into the opening at the back of the product leading to the mode button.
2. Push the button for about 3 seconds to switch modes. Observe the display while you switch and se-
lect the required mode: working mode (display: bod), counting mode (display: Cou), or surface mode
(display: Sur).
11.3 Measuring temperature in working mode
11.3.1 Measuring temperature
Measure temperature in the working mode range.
P :
RECONDITIONS
a
(If you have moved the product to a new location) the product was given at least 30 minutes to adjust
to the new ambient conditions.
1. Activate the working mode (display: bod).
2. Approach the sensor with the object. Maintain about 5 – 10 cm between object and sensor.
à
The display shows the measured temperature.
à If the indicator lights FLASH RED and an ALARM sounds: the temperature is abnormal (> +37.3
°C). This status will reset after a few seconds.
à If the display shows Li (lower end) or Hi (upper end) and an audible alert sounds: the reading is
out of range
11.4 Measuring surface temperature
Measure the surface temperature of an object.
P :
RECONDITIONS
a
(If you have moved the product to a new location) the product was given at least 30 minutes to adjust
to the new ambient conditions.
1. Activate the surface mode (display: Sur).
2. Approach the sensor with the object. Maintain about 5 – 10 cm between object and sensor.
à
The display shows the measured temperature.
à
A beep sounds and the indicator lights light up green.
à If the display shows Li (lower end) or Hi (upper end) and an audible alert sounds: the reading is
out of range
11.5 Counting the readings
Count every successful measurement and display the total count.
P :
RECONDITIONS
a
(If you have moved the product to a new location) the product was given at least 30 minutes to adjust
to the new ambient conditions.
1. Activate the counting mode (display: Cou).
2. Approach the sensor with the object. Maintain about 5 – 10 cm between object and sensor.
à A beep sounds.
à
The current count shows on the display.
12 Cleaning and care
Clean the product with a dry, fibre-free cloth.
NOTICE! Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions as
they can cause damage to the housing and malfunctioning.
4
13 Disposal
You thus fulfill your statutory obligations and contribute to the protection of the environment.

14 Technical data

Power supply ......................................... 5 V/DC via USB, min. 500 mA
Power supply (battery) ........................... 1x 3.7 V Li-Ion 18650
Measuring range: Working mode ........... +36 to +43 °C
Measuring range: Surface mode ........... 0 to +50 °C
Alert range: Working mode .................... > +37.3 °C
Accuracy ................................................ +/- 0.2 °C
Temperature range
Response time ....................................... 0.5 s
Measuring Range:
+36 to +43 °C
Counting capacity .................................. 999
Alert range:
Measuring distance ................................ 5 - 10 cm
> +37.3 °C
Tripod thread ......................................... 6.3 mm (1/4")
Measuring Range:
Operating temperature .......................... +10 to +40 °C
0 to +50 °C
Operating humidity ................................ ≤ 85 % RH
Storage temperature ............................. 0 to +50 °C
Storage humidity .................................... ≤ 93 % RH
Dimensions (W x H x D, approx.) ........... 115 x 170 x 140 mm
Weight (approx.) .................................... 274 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or the capture in
electronic data processing systems) requires prior written approval from the editor. Reprinting, also in part, is prohibited.
This publication reflects the technical status at the time of printing.
Copyright by Conrad Electronic SE.
*2347550_V2_0621_jh_mh_en
Electronic devices are recyclable waste and must not be disposed of in the household waste.
At the end of its service life, dispose of the product in accordance with applicable regulatory
guidelines.
Remove any inserted (rechargeable) batteries and dispose of them separately from the
product. You as the end user are required by law (Battery Ordinance) to return all used (re-
chargeable) batteries. Disposing of them in the household waste is prohibited.
Contaminated (rechargeable) batteries are labeled with this symbol to indicate that disposal
in the domestic waste is forbidden. The designations for the heavy metals involved are: Cd =
Cadmium, Hg = Mercury, Pb = Lead (name on (rechargeable) batteries, e.g. below the trash
icon on the left).
